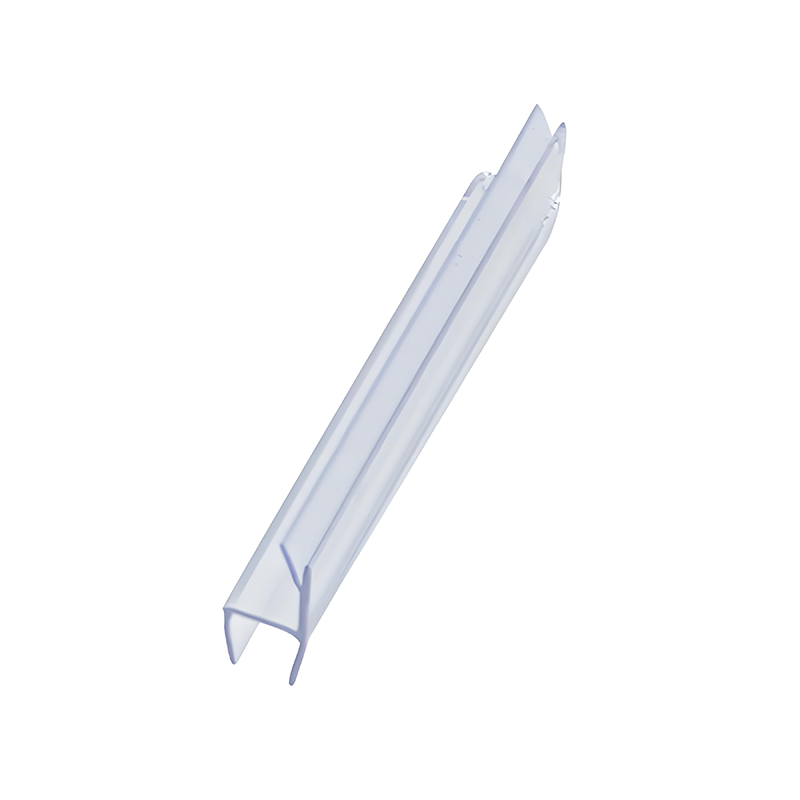

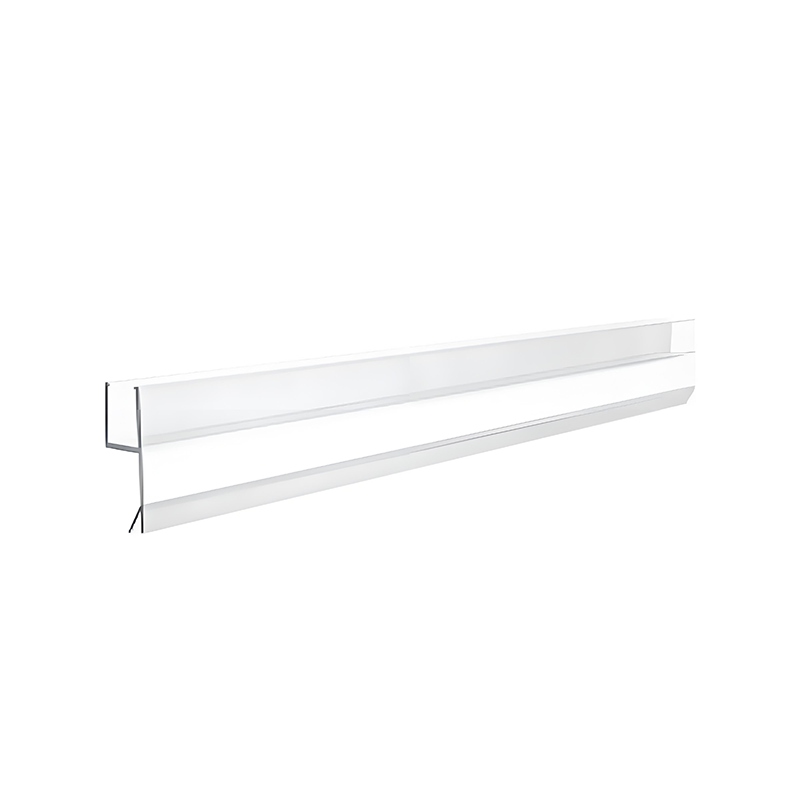

High Clear PC Seal-5706

High Clear PC Seal (Z-5706) is a shower door seal that keeps water inside the enclosure, built from polycarbonate (PC).

✓ IN STOCK
Get A Quote

Send Inquiry

Please fill out the form below, we will quote you soon.

SHARE

High Clear PC material, 4 thicknesses valuable, length as request, standard length 2.4 meter

Z-5706-6mm use on 6mm Glass

Z-5706-8mm use on 8mm Glass

Z-5706-10mm use on 10mm Glass

Z-5706-12mm use on 12mm Glass



The High Clear Pc Seal 5706 is a PC shower door seal from the gasket family that keeps water inside the enclosure: profiles extruded to match glass thickness and door geometry, translucent material that disappears against clear glass, and push-on installation that requires no adhesive — the detail that makes replacement a two-minute job instead of a service call.

Specification Standard Selection note
Material PC, clear Magnetic variants for closure
Glass fit 6–12 mm profiles Measure glass, not the drawing
Install Push-on, no adhesive Trim with scissors to length
Position Bottom sweep, side jamb, strike One profile per position

The full seal family — PVC, PC and magnetic profiles by door position — is specified in the shower door seals specification guide. Reference: shower construction.

Key Features

  • Material: polycarbonate (PC) construction
  • Geometry: built for 180° panel angles

Applications

  • Bottom sweep on pivot and hinged shower doors (glass-to-floor line)
  • Meeting jamb between door and fixed panel
  • Post-renovation water-leak fixes without replacing the door
  • Magnetic closure variants for doors that need a positive pull-shut
  • Replacement seals for aged or hardened gaskets on existing enclosures
  • Wholesale and OEM sourcing programs – a recurring shower door gasket line for distributors

More in this series: Clear PVC Seal-5703 · PC Seal With Bulb Attachment-5708

Installation Notes

  1. Identify the door position the seal is for – bottom sweep, side jamb or strike – one profile per position.
  2. Cut the profile to length with scissors against the actual measured glass edge.
  3. Push the seal on by hand from one end; no adhesive is required.
  4. Close the door and check the bulb/fin just kisses the floor or mating glass – trim slightly if it drags.

Frequently Asked Questions

What material is the Z-5706 seal?

It is extruded from polycarbonate (PC). The material stays clear against glass, resists hardening in hot wet environments, and can be trimmed with scissors.

Can one seal profile cover the whole door?

No – each gap needs its own profile: a bottom sweep for the floor line, a jamb seal for the meeting edge, a strike seal for the closing line. Mixing positions with one profile leaves gaps.

Can I combine different seal profiles on one door?

Yes – one profile per position: a bottom sweep on the floor line, a jamb seal on the meeting edge, and a strike seal at the closing line.

Do you supply the clear shower door seal for wholesale and OEM programs?

Yes – this model is produced in Zimmor’s Foshan factory for wholesale and OEM sourcing: custom finishes, packaging and volume pricing are confirmed per order.

Need help selecting? Read the shower door bottom sweep guide before ordering this model, or compare the full seal and header range.
