Square Corner Shower Glass Clamp With Cover-4649
Square Corner Shower Glass Clamp With Cover (Z-4649) is a shower glass clamp for frameless shower panels and glass partitions, made for 8 mm (5/16″), 10 mm (3/8″), 12 mm (1/2″) tempered glass, built from brass.
Send Inquiry
Please fill out the form below, we will quote you soon.

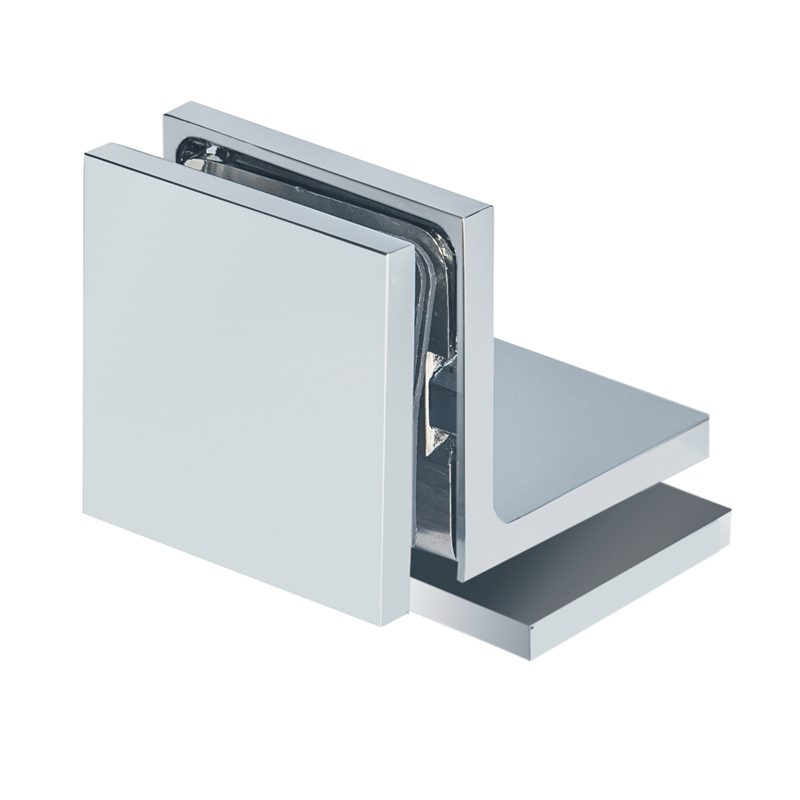

Model Z-4649 is a brass, covered square-corner shower glass clamp for a 90-degree glass-to-glass connection.
| Use Monolithic Tempered Glass For Glass Thicknesses | |||
| 1/2′′ (12MM) | 3/8′′ (10MM) | 5/16′′ (8MM) | 1/4′′ (6MM) |
| √ | √ | √ | |
For broader selection guidance, see our complete shower hardware specification guide and PVD coating guide.
Square Corner Shower Glass Clamp With Cover (Z-4649) is a frameless shower glass clamp for fixing glass panels to walls, floors or each other. It clamps 8 mm (5/16″), 10 mm (3/8″), 12 mm (1/2″) monolithic tempered glass without drilling the panel. The body is cast from brass. Wholesale buyers commonly source this model as a square corner glass clamp. For the wider selection context, see Zimmor’s shower glass clamp guide.
Key Features
- Glass compatibility: Clamps 8 mm (5/16″), 10 mm (3/8″), 12 mm (1/2″) monolithic tempered glass
- Material: brass construction
- Geometry: built for 90° panel angles with a square-corner profile
- Covered design: cover plate conceals the fixings for a clean look
Applications
- Fixing shower screens to walls or floors without drilling the glass
- Glass-to-glass joints at 90°, 135° and 180° in frameless enclosures
- Balustrades and glass railings on balconies and stairs
- Office and retail glass partitions
- Display shelving and signage panels in commercial fit-outs
- Wholesale and OEM sourcing programs – a recurring brass shower glass clamp line for distributors
More in this series: Square Corner Shower Glass Clamp With Cover-4639 · Square Corner Shower Glass Clamp With Cover-9100.39
Installation Notes
- Measure panel thickness before ordering – this clamp suits 8 mm (5/16″), 10 mm (3/8″), 12 mm (1/2″).
- Position the clamp, mark and drill the wall or floor, and anchor with suitable fixings.
- Set the glass in place and tighten the clamp screws evenly – the rubber liners carry the load, do not over-torque.
- Verify the panel is plumb before final tightening; adjust shims as needed.
- Never drill or notch tempered glass – all clamping is done on the panel edge. Professional installation recommended.
Frequently Asked Questions
What glass thickness does the Z-4649 clamp fit?
The Z-4649 works with 8 mm (5/16″), 10 mm (3/8″), 12 mm (1/2″) monolithic tempered glass. Measure the actual panel before ordering – glass thickness varies between suppliers, and the clamp rubber liners must match the real thickness, not the drawing.
What is the Z-4649 made of?
The Z-4649 is built from brass. Solid metal construction matters on glass hardware – thin stamped parts creep loose under door loads.
How many clamps do I need per panel?
Small shower returns and screens normally take 2 clamps; taller panels and railing infills take 3-4 depending on height and wind exposure. Follow the span in your project drawing.
Does the clamp need periodic re-tightening?
Check the set screws once after the first week of use, then seasonally. Glass panels do not settle like timber, so clamps rarely need more than that.
Do you supply the glass to glass shower clamp for wholesale and OEM programs?
Yes – this model is produced in Zimmor’s Foshan factory for wholesale and OEM sourcing: custom finishes, packaging and volume pricing are confirmed per order.
Need help selecting? Read the shower glass bracket guide before ordering this model, or compare the full glass clamp range.
