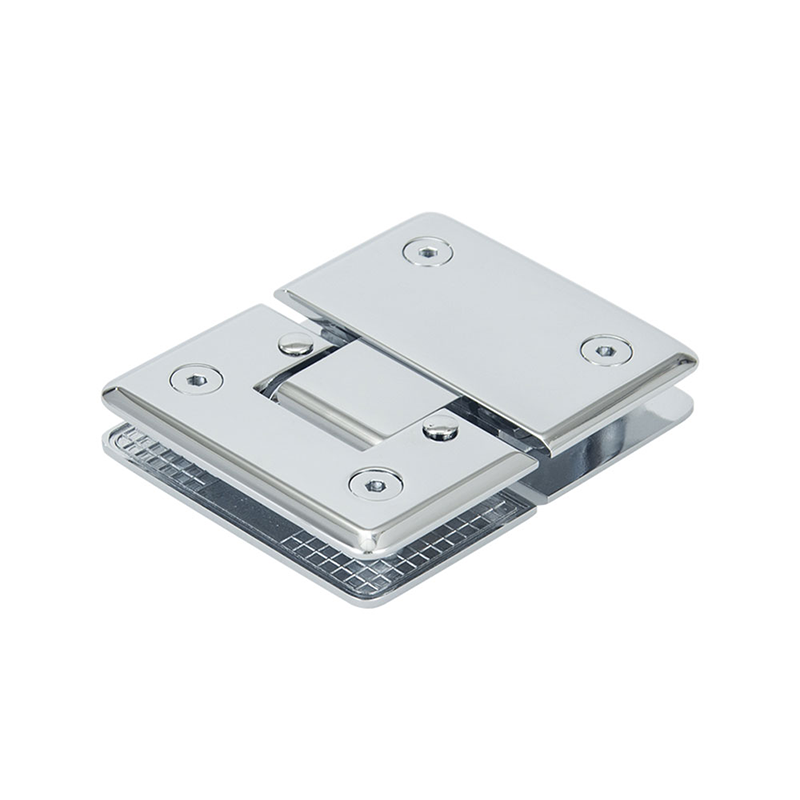

180 Degree Glass to Glass Beveled Edge Adjustable Shower Hinge-9520

180 Degree Glass to Glass Beveled Edge Adjustable Shower Hinge (9520) is a shower door hinge for glass-to-glass frameless shower doors, made for 10 mm (3/8″), 12 mm (1/2″) tempered glass, built from solid forged brass.

✓ IN STOCK
Get A Quote

Send Inquiry

Please fill out the form below, we will quote you soon.

SHARE
Use Monolithic Tempered Glass For Glass Thicknesses
1/2′′ (12MM) 3/8′′ (10MM) 5/16′′ (8MM) 1/4′′ (6MM)
√ √



Designed for 3/8″(10mm) and 1/2″(12mm) Glass
Solid Forged Brass Construction
Dual Precision Wound Stainless Steel Return Springs
Match Stainless Steel Alan Style Clamp Screws
(Allen wrench Included) and Phillips screws



All Finishes Available
Maximum 3/8″(10mm) Glass 1/2″(12mm) Glass
Capacities Weight Door Width Weight Door Width
Using Two Hinges 80 lbs/36kg 28″/711mm 80 lbs/36kg 28″/711mm
Using Three Hinges 120 lbs/54kg 32″/813mm 120 lbs/54kg 32″/813mm

For broader selection guidance, see our complete shower hardware specification guide and PVD coating guide.

180 Degree Glass to Glass Beveled Edge Adjustable Shower Hinge (9520) is a adjustable frameless shower door hinge for glass-to-glass installation at a 180° panel angle. It is engineered for 10 mm (3/8″), 12 mm (1/2″) monolithic tempered glass. The body is machined from solid forged brass. It is available in Zimmor’s full finish program (PVD included) to match the rest of the enclosure hardware. Wholesale buyers commonly source this model as a 180 degree glass to glass hinge. For the wider selection context, see Zimmor’s shower door hinge guide.

Key Features

  • Glass compatibility: Fits 10 mm (3/8″), 12 mm (1/2″) monolithic tempered glass
  • Material: solid forged brass construction
  • Adjustable: door alignment can be corrected after installation
  • Geometry: built for 180° panel angles with a beveled-edge profile
  • Finishes: full Zimmor finish program available, PVD included

Applications

  • Frameless pivot shower doors in residential bathrooms
  • Hotel and gym wet rooms where doors take daily, heavy use
  • Glass-to-glass return panels and 90° / 135° / 180° inline layouts
  • Renovation projects replacing framed doors with frameless glass
  • Custom enclosures spec’d by architects and glazing contractors
  • Wholesale and OEM sourcing programs – a recurring forged brass shower hinge line for distributors

More in this series: 135 Degree Glass to Glass Beveled Edge Adjustable Shower Hinge-9530 · 90 Degree Glass to Glass Adjustable Beveled Edge Shower Hinge-9540

Installation Notes

  1. Confirm both panels are monolithic tempered glass within 10 mm (3/8″), 12 mm (1/2″) and the joint is a true 180° angle.
  2. Mark the hinge position on both panels; the cup that takes the door weight goes on the fixed panel side.
  3. Clamp both cups to the glass edges and snug the set screws evenly – the rubber liners grip, do not crush.
  4. Level the door with the adjustment screws, then verify the gap line runs even from top to bottom.
  5. Check swing and self-close through the full arc. Professional installation recommended.

Frequently Asked Questions

What glass thickness does the 9520 fit?

The 9520 is rated for 10 mm (3/8″), 12 mm (1/2″) monolithic tempered glass. Always use tempered (safety) glass – never annealed glass.

What is the 9520 made of?

The 9520’s hinge body is made of solid forged brass. Brass bodies take Zimmor’s full finish program, including PVD coatings for humid bathrooms.

How is the door adjusted after installation?

Hinges in this series include adjustment screws: close the door, check the vertical gaps, and correct the door position with the adjustment screws before final tightening.

Can this hinge be retrofitted to an existing enclosure?

Yes, if the drilled hole pattern on the existing door matches the hinge cup spacing. Measure before ordering – tempered panels cannot be re-drilled after the fact.

Do you supply the beveled edge shower hinge for wholesale and OEM programs?

Yes – this model is produced in Zimmor’s Foshan factory for wholesale and OEM sourcing: custom finishes, packaging and volume pricing are confirmed per order.
