Office Glass Door Bottom Hydraulic Patch-1898

Office Glass Door Bottom Hydraulic Patch (1898) is a patch fitting for frameless office glass doors.

✓ IN STOCK
Get A Quote

Send Inquiry

Please fill out the form below, we will quote you soon.

SHARE

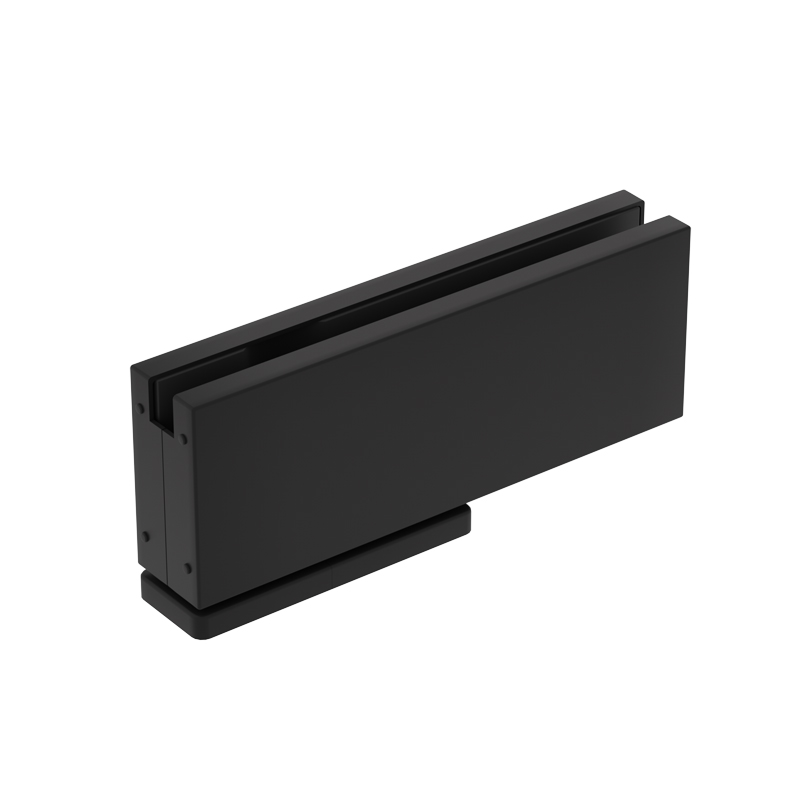

Office Glass Door Bottom Hydraulic Patch

The Office Glass Door Bottom Hydraulic Patch 1898 is a hydraulic patch fitting for frameless glass doors: a floor-mounted body that carries the door’s weight, a cam-and-closer mechanism that controls swing and self-closes, and a cover plate finished to match the door hardware program. It is the hardware that makes an all-glass door possible — no frame, no hinges, just glass from floor to header.

Specification Standard Selection note
Glass 10–12 mm tempered leaf Match to door panel spec
Mechanism Hydraulic swing + self-close Adjustable closing speed
Load Rated per leaf weight Weigh glass before ordering
Finish Cover plate match hardware set PVD option available

The door hardware that pairs with patch fittings — hinges, handles and seals — is framed in the frameless shower door hardware guide. Reference: door closer mechanics.

Key Features

  • Glass compatibility: suits 8 mm to 12 mm glass

Applications

  • Frameless office glass doors in commercial fit-outs
  • Storefront and showroom glass entrances
  • Self-closing swing doors where floor space rules out overhead closers
  • Interior glass partitions needing controlled door swing
  • Wholesale and OEM sourcing programs – a recurring self closing glass door line for distributors

Installation Notes

  1. Set the patch body in the floor screed level with the finished floor, aligned to the door axis.
  2. Connect the pivot spindle and set closing speed and latching via the adjustment valves.
  3. Mount the top patch and header, hang the 10-12 mm tempered leaf, and align the swing arc.
  4. Fit the cover plates after final adjustment. Professional installation strongly recommended.

Frequently Asked Questions

What glass does the patch fitting take?

The floor body is rated for 10-12 mm tempered leaves. Weigh the glass leaf and match it to the patch rating – patch fittings carry the entire door weight.

Which glass thicknesses can you produce fittings for?

Zimmor produces fittings for the standard 6-12 mm tempered glass range, with custom tolerances for OEM projects. Confirm the actual panel thickness before ordering.

What finishes can this fitting be ordered in?

Polished chrome, brushed nickel, matte black, gold and PVD finishes are produced across the range – one finish card can match the whole hardware set.

Do you supply the glass door patch fitting for wholesale and OEM programs?

Yes – this model is produced in Zimmor’s Foshan factory for wholesale and OEM sourcing: custom finishes, packaging and volume pricing are confirmed per order.
