Aluminum Deck Balcony Railing System Stair Glass Guardrails
Aluminum Deck Balcony Railing System Stair Glass Guardrails (Z-BG5100) is a aluminum glass railing system for decks, stairs and pool fencing, made for 8 mm (5/16″), 10 mm (3/8″) tempered glass, built from aluminium alloy.
Send Inquiry
Please fill out the form below, we will quote you soon.
| Use Monolithic Tempered Glass For Glass Thicknesses | |||
| 1/2′′ (12MM) | 3/8′′ (10MM) | 5/16′′ (8MM) | 1/4′′ (6MM) |
| √ | √ | ||
Designed for 5/16″(8mm) to 3/8″(10mm) Glass Guardrails
Material: Aluminum
Style: Suitable for different places, both indoor and outdoor use.
Length: 2500mm, 4000mm, or customization.
Advantages: No glue required,modular splicing,easy Installation.
For broader selection guidance, see our complete shower hardware specification guide and PVD coating guide.
Key Features
- Glass compatibility: Fits 8 mm (5/16″), 10 mm (3/8″) monolithic tempered glass
- Material: aluminium alloy construction
- System build: modular splicing, no glue required, indoor and outdoor rated
- Post lengths: 2500 mm / 4000 mm stock or cut to size
Applications

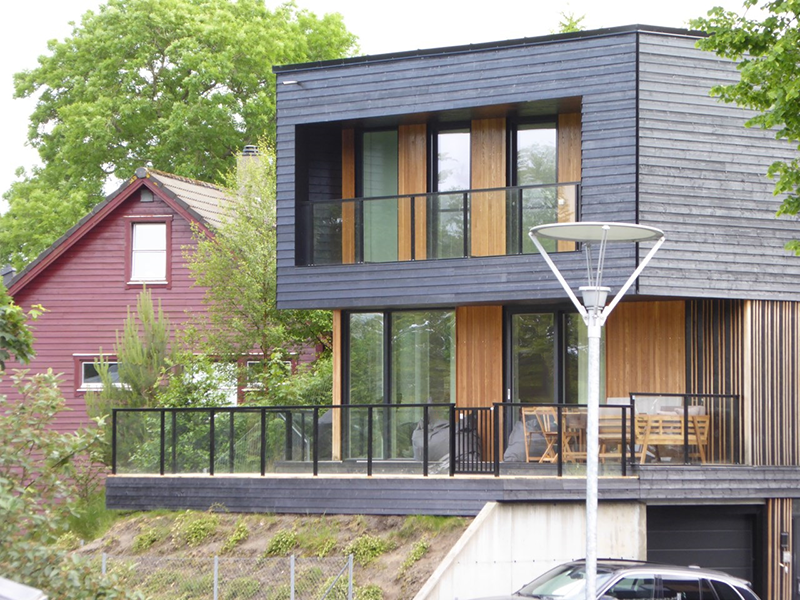

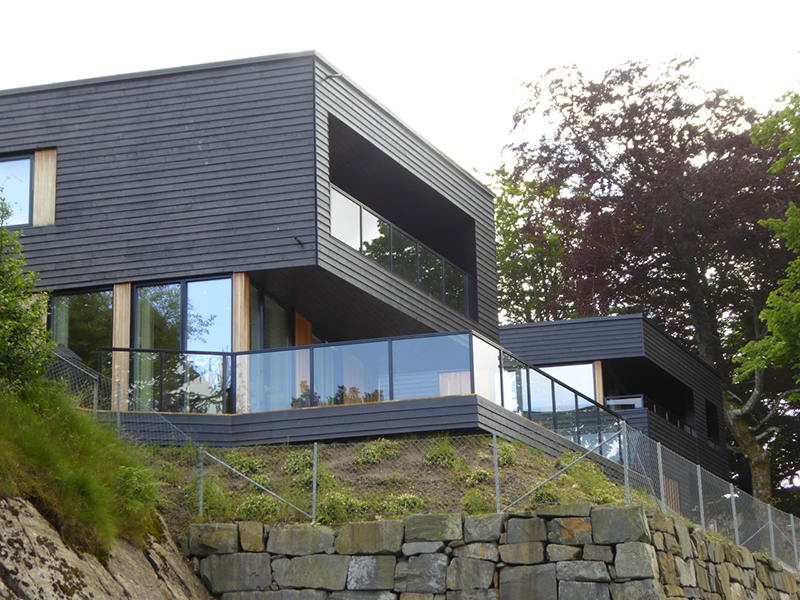

- Floor-mounted glass guardrails on decks and balconies
- Staircase glass balustrades in homes and commercial buildings
- Swimming pool fencing and enclosure glazing
- Airport and public-building glass guardrails
- Indoor mezzanine and atrium edge protection
- Wholesale and OEM sourcing programs – a recurring frameless glass railing line for distributors
Installation Notes
- Set post spacing to the project drawing and anchor the base plates into a structural slab or stair stringer.
- Plumb and level each aluminum post before final tightening – the glass line follows the post line.
- Seat the glass panels into the post channels; modular splicing locks them without glue.
- Fit the caps and walk the rail line to confirm alignment and edge protection coverage.
- Outdoor builds: confirm anchor type against substrate thickness and local wind-load requirements.
Frequently Asked Questions
What glass thickness does the Z-BG5100 fit?
The Z-BG5100 takes 8 mm (5/16″), 10 mm (3/8″) monolithic tempered glass panels. Guardrails should always use tempered (or laminated) safety glass – never annealed glass.
What is the Z-BG5100 made of?
The Z-BG5100 is built from aluminium alloy. Solid metal construction matters on glass hardware – thin stamped parts creep loose under door loads.
Where can the glass railing system be installed?
Indoors and outdoors: floor guardrails on decks and balconies, staircase glass balustrades, swimming pool fencing, and airport or public-building glass guardrails. The aluminum alloy posts are suitable for exterior exposure.
How are the glass panels fixed – does the railing need glue?
No glue. The system splices together modularly: glass panels seat into the aluminum post channels and are held by the profile design, which keeps installation fast and makes later glass replacement straightforward.
Do you supply the balcony glass railing for wholesale and OEM programs?
Yes – this model is produced in Zimmor’s Foshan factory for wholesale and OEM sourcing: custom finishes, packaging and volume pricing are confirmed per order.
