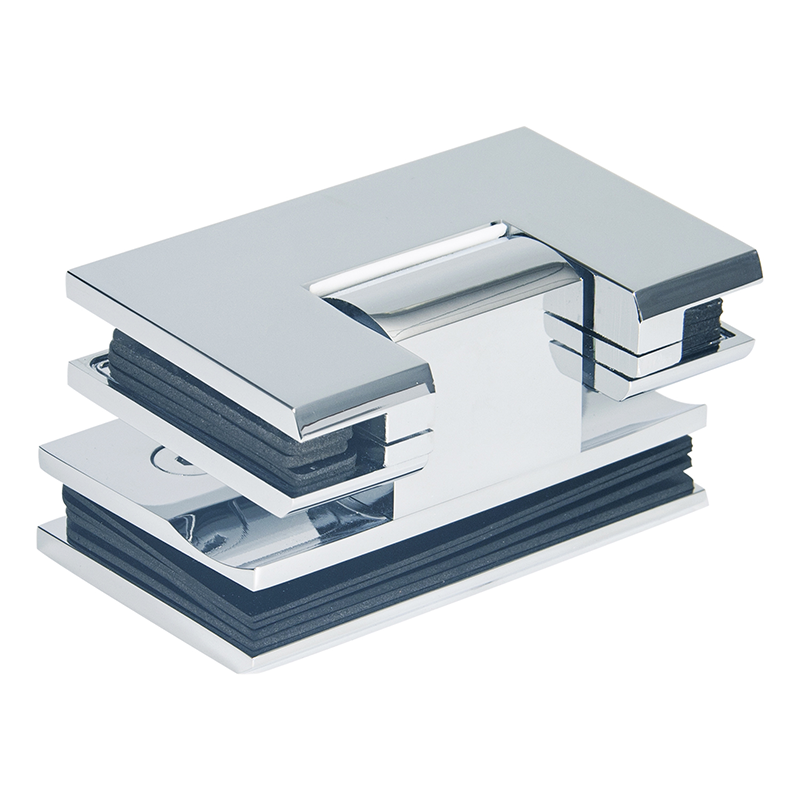

90 Degree Glass to Glass Flat Square Adjustable Corner Hinge-7441

90 Degree Glass to Glass Flat Square Adjustable Corner Hinge (Z-7441) is a shower door hinge for glass-to-glass frameless shower doors, made for 8 mm (5/16″), 10 mm (3/8″), 12 mm (1/2″) tempered glass, built from solid forged brass.

Matte Black (MBL)
Polished Chrome (CP)
✓ IN STOCK
Get A Quote

Send Inquiry

Please fill out the form below, we will quote you soon.

SHARE
Use Monolithic Tempered Glass For Glass Thicknesses
1/2′′ (12MM) 3/8′′ (10MM) 5/16′′ (8MM) 1/4′′ (6MM)
√ √ √



1.   Designed for 3/8″(10mm) and 1/2″(12mm)Glass

2.   Solid Forged Brass Construction

3.   Dual Precision Wound Stainless Return Springs

4.   Match Stainless Steel Alan Style Clamp Screws
(Allen wrench Included) and Phillips screws
5.   Adjustable to any angle up to 90 Degree without having to take door down..
6.  90 Degree Glass to Glass



All Finishes Available
Maximum 5/16″(8mm)  3/8″(10mm) Glass 1/2″(12mm) Glass
Capacities Weight Door Width Weight Door Width
Using Two Hinges 80 lbs/36kg 28″/711mm 80 lbs/36kg 28″/711mm
Using Three Hinges 120 lbs/54kg 32″/813mm 120 lbs/54kg 32″/813mm

For broader selection guidance, see our complete shower hardware specification guide and PVD coating guide.

90 Degree Glass to Glass Flat Square Adjustable Corner Hinge (Z-7441) is a adjustable frameless shower door hinge for glass-to-glass installation at a 90° panel angle. It is engineered for 8 mm (5/16″), 10 mm (3/8″), 12 mm (1/2″) monolithic tempered glass. The body is machined from solid forged brass. It is available in Zimmor’s full finish program (PVD included) to match the rest of the enclosure hardware. Wholesale buyers commonly source this model as a 90 degree glass to glass hinge. For the wider selection context, see Zimmor’s shower door hinge guide.

Key Features

  • Glass compatibility: Fits 8 mm (5/16″), 10 mm (3/8″), 12 mm (1/2″) monolithic tempered glass
  • Material: solid forged brass construction
  • Adjustable: door alignment can be corrected after installation
  • Geometry: built for 90° panel angles
  • Finishes: full Zimmor finish program available, PVD included

Applications

  • Frameless pivot shower doors in residential bathrooms
  • Hotel and gym wet rooms where doors take daily, heavy use
  • Glass-to-glass return panels and 90° / 135° / 180° inline layouts
  • Renovation projects replacing framed doors with frameless glass
  • Custom enclosures spec’d by architects and glazing contractors
  • Wholesale and OEM sourcing programs – a recurring forged brass shower hinge line for distributors

More in this series: 90 Degree Glass to Glass Adjustable Beveled Edge Shower Hinge-9540 · 90 Degree Glass to Glass Square Corner Adjustable Shower Hinge-9440

Installation Notes

  1. Confirm both panels are monolithic tempered glass within 8 mm (5/16″), 10 mm (3/8″), 12 mm (1/2″) and the joint is a true 90° angle.
  2. Mark the hinge position on both panels; the cup that takes the door weight goes on the fixed panel side.
  3. Clamp both cups to the glass edges and snug the set screws evenly – the rubber liners grip, do not crush.
  4. Level the door with the adjustment screws, then verify the gap line runs even from top to bottom.
  5. Check swing and self-close through the full arc. Professional installation recommended.

Frequently Asked Questions

What glass thickness does the Z-7441 fit?

The Z-7441 is rated for 8 mm (5/16″), 10 mm (3/8″), 12 mm (1/2″) monolithic tempered glass. Always use tempered (safety) glass – never annealed glass.

What is the Z-7441 made of?

The Z-7441’s hinge body is made of solid forged brass. Brass bodies take Zimmor’s full finish program, including PVD coatings for humid bathrooms.

Can the door position be corrected once fitted?

Yes – loosen the adjustment screws, level the door against the fixed panel, and re-tighten. Do the check with the door closed so the gap line reads true.

Does the finish need maintenance in a wet bathroom?

Wipe the fittings down after heavy use and avoid abrasive cleaners. PVD finishes hold up best against constant humidity and limescale.

Do you supply the adjustable shower hinge for wholesale and OEM programs?

Yes – this model is produced in Zimmor’s Foshan factory for wholesale and OEM sourcing: custom finishes, packaging and volume pricing are confirmed per order.
