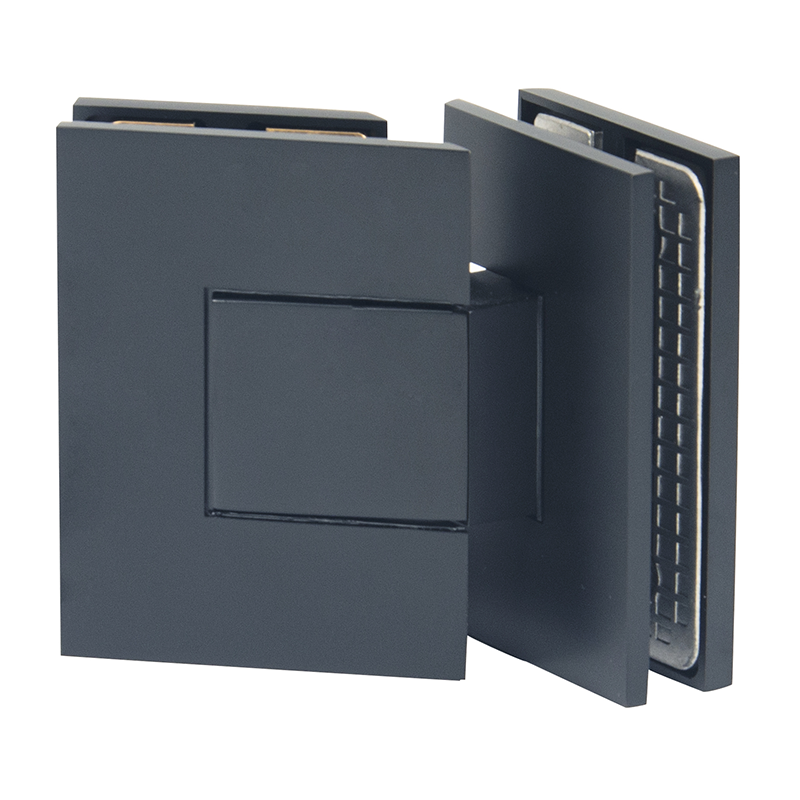

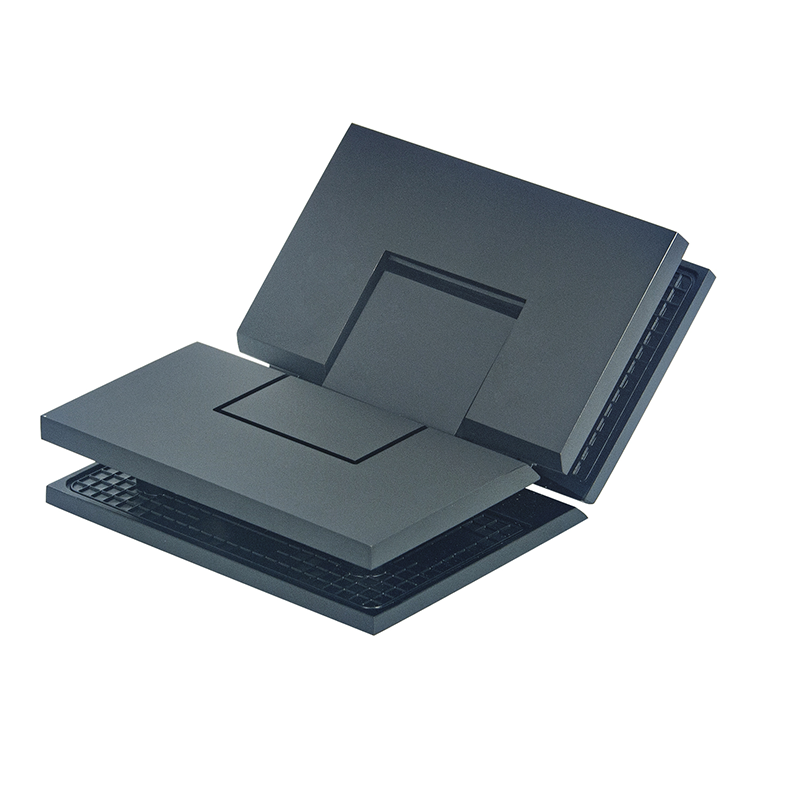

Flat Square Corner Adjustable Shower Hinge With Cover-7830
Flat Square Corner Adjustable Shower Hinge With Cover (7830) is a shower door hinge for frameless shower doors, made for 8 mm (5/16″), 10 mm (3/8″), 12 mm (1/2″) tempered glass.
Send Inquiry
Please fill out the form below, we will quote you soon.
| Use Monolithic Tempered Glass For Glass Thicknesses | |||
| 1/2′′ (12MM) | 3/8′′ (10MM) | 5/16′′ (8MM) | 1/4′′ (6MM) |
| √ | √ | √ | |
Flat Surface Patent Design
Adjustable to any Angle Up to 90 Degrees Without Having to Take Door Down.
3 Years Warranty
Self-closing from 25 Degrees
Designed for 5/16″(8mm) to 1/2″(12mm) Glass
| All Finishes Available | ||||
| Maximum | 5/16″(8mm) 3/8″(10mm) Glass | 1/2″(12mm) Glass | ||
| Capacities | Weight | Door Width | Weight | Door Width |
| Using Two Hinges | 80 lbs/36kg | 28″/711mm | 80 lbs/36kg | 28″/711mm |
| Using Three Hinges | 120 lbs/54kg | 32″/813mm | 120 lbs/54kg | 32″/813mm |
For broader selection guidance, see our complete shower hardware specification guide and PVD coating guide.
Flat Square Corner Adjustable Shower Hinge With Cover (7830) is a adjustable frameless shower door hinge at a 135° panel angle. It is engineered for 8 mm (5/16″), 10 mm (3/8″), 12 mm (1/2″) monolithic tempered glass. A built-in spring returns the door to closed from 15° of swing. It is available in Zimmor’s full finish program (PVD included) to match the rest of the enclosure hardware. Wholesale buyers commonly source this model as a glass to glass shower hinge. For the wider selection context, see Zimmor’s shower door hinge guide.
Key Features
- Glass compatibility: Fits 8 mm (5/16″), 10 mm (3/8″), 12 mm (1/2″) monolithic tempered glass
- Self-closing: spring returns the door from 15° of opening
- Adjustable: door alignment can be corrected after installation
- Geometry: built for 135° panel angles with a square-corner profile
- Covered design: cover plate conceals the fixings for a clean look
- Finishes: full Zimmor finish program available, PVD included
Applications
- Frameless pivot shower doors in residential bathrooms
- Hotel and gym wet rooms where doors take daily, heavy use
- Wall-to-glass openings in walk-in showers
- Renovation projects replacing framed doors with frameless glass
- Custom enclosures spec’d by architects and glazing contractors
- Wholesale and OEM sourcing programs – a recurring self closing shower hinge line for distributors
More in this series: Flat Square Corner Adjustable Shower Hinge With Cover-7820 · Flat Square Corner Adjustable Shower Hinge With Cover-7840
Installation Notes
- Confirm the door and panel are monolithic (tempered) safety glass and within 8 mm (5/16″), 10 mm (3/8″), 12 mm (1/2″) range.
- Mark hole positions on a plumb, solid substrate, drill, and secure with appropriate wall anchors and the hinge mounting screws.
- Hang the door on the hinge and close it; use the adjustment screws to level the gaps before final tightening.
- Check swing and self-close action through the full arc; confirm the door does not contact the fixed panel.
- Wall substrate must carry the door weight – tile over drywall needs backing or through-bolts. Professional installation recommended.
Frequently Asked Questions
What glass thickness does the 7830 fit?
The 7830 is rated for 8 mm (5/16″), 10 mm (3/8″), 12 mm (1/2″) monolithic tempered glass. Always use tempered (safety) glass – never annealed glass.
Is the 7830 self-closing?
Yes. A spring inside the hinge starts closing the door from about 15° of opening, so the door returns to the seal line on its own.
What does the adjustment screw control?
It moves the glass cup relative to the back plate, so the door gaps can be leveled after hanging. Make final adjustments with the door closed, then lock the screws down.
Can I use this hinge on a heavy frameless door?
Yes, within the rated glass range. For heavier leaves, step up to the heavy-duty series or add a third hinge point so the load splits across the leaf.
Do you supply the self closing shower hinge for wholesale and OEM programs?
Yes – this model is produced in Zimmor’s Foshan factory for wholesale and OEM sourcing: custom finishes, packaging and volume pricing are confirmed per order.
