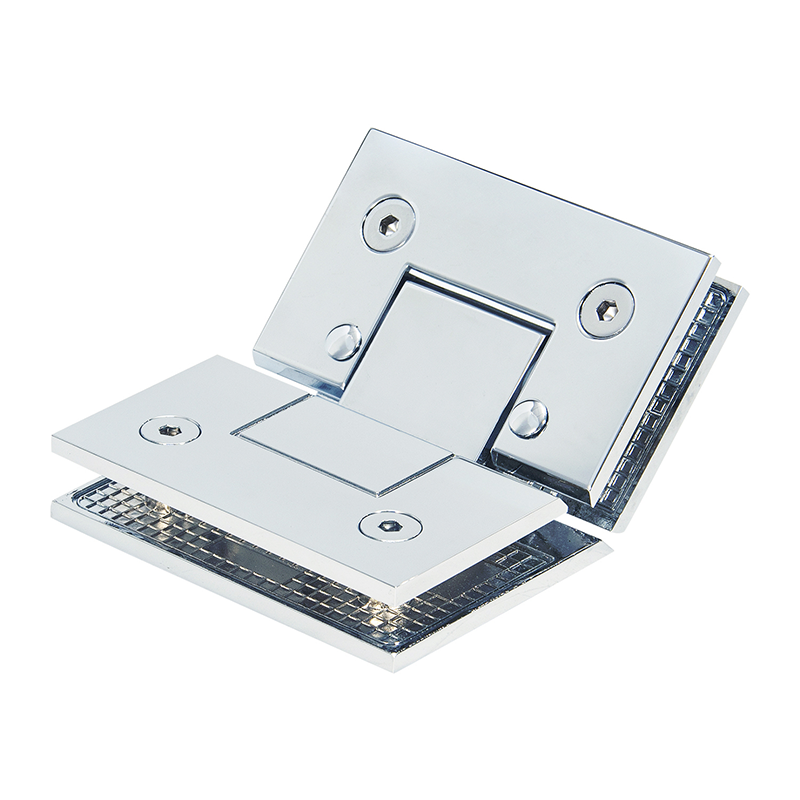

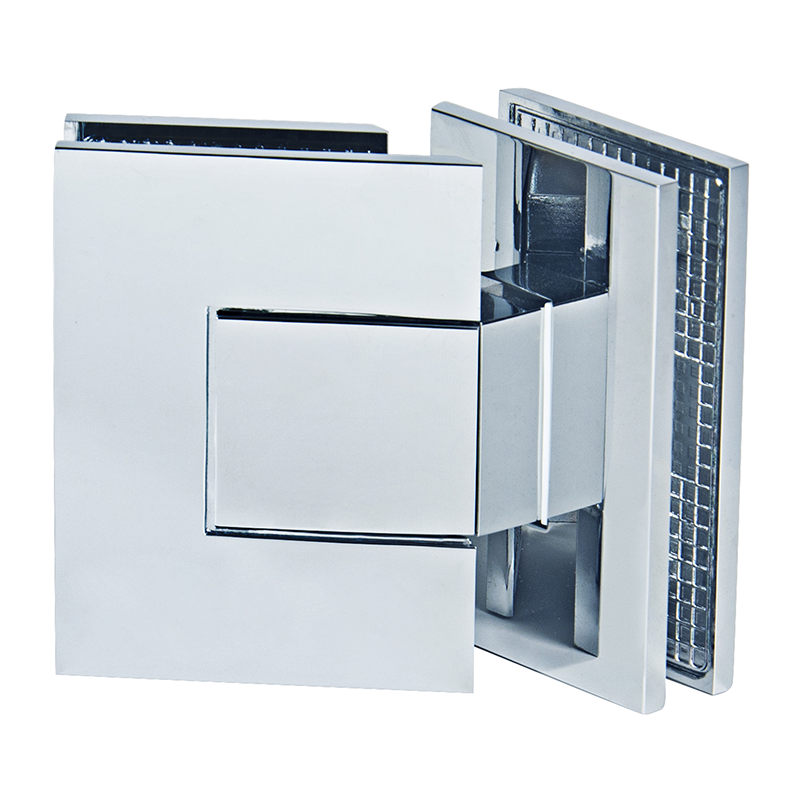

135 Degree Glass to Glass Flat Square Adjustable Hinge-7431
135 Degree Glass to Glass Flat Square Adjustable Hinge (Z-7431) is a shower door hinge for glass-to-glass frameless shower doors, made for 8 mm (5/16″), 10 mm (3/8″), 12 mm (1/2″) tempered glass, built from brass.
Send Inquiry
Please fill out the form below, we will quote you soon.
| Use Monolithic Tempered Glass For Glass Thicknesses | |||
| 1/2′′ (12MM) | 3/8′′ (10MM) | 5/16′′ (8MM) | 1/4′′ (6MM) |
| √ | √ | √ | |
Designed for 5/16″(8mm) to 1/2″(12mm) Glass
Flat Surface Patent Design
Adjustable to any Angle Up to 90 Degrees After Installing the Door
3 Years Warranty
High Quality Forged Solid Brass Material
| All Finishes Available | ||||
| Maximum | 5/16″(8mm) 3/8″(10mm) Glass | 1/2″(12mm) Glass | ||
| Capacities | Weight | Door Width | Weight | Door Width |
| Using Two Hinges | 80 lbs/36kg | 28″/711mm | 80 lbs/36kg | 28″/711mm |
| Using Three Hinges | 120 lbs/54kg | 32″/813mm | 120 lbs/54kg | 32″/813mm |
For broader selection guidance, see our complete shower hardware specification guide and PVD coating guide.
135 Degree Glass to Glass Flat Square Adjustable Hinge (Z-7431) is a adjustable frameless shower door hinge for glass-to-glass installation at a 135° panel angle. It is engineered for 8 mm (5/16″), 10 mm (3/8″), 12 mm (1/2″) monolithic tempered glass. The body is machined from brass. It is available in Zimmor’s full finish program (PVD included) to match the rest of the enclosure hardware. Wholesale buyers commonly source this model as a 135 degree glass to glass hinge. For the wider selection context, see Zimmor’s shower door hinge guide.
Key Features
- Glass compatibility: Fits 8 mm (5/16″), 10 mm (3/8″), 12 mm (1/2″) monolithic tempered glass
- Material: brass construction
- Adjustable: door alignment can be corrected after installation
- Geometry: built for 135° panel angles
- Finishes: full Zimmor finish program available, PVD included
Applications
- Frameless pivot shower doors in residential bathrooms
- Hotel and gym wet rooms where doors take daily, heavy use
- Glass-to-glass return panels and 90° / 135° / 180° inline layouts
- Renovation projects replacing framed doors with frameless glass
- Custom enclosures spec’d by architects and glazing contractors
- Wholesale and OEM sourcing programs – a recurring forged brass shower hinge line for distributors
More in this series: 135 Degree Glass to Glass Beveled Edge Adjustable Shower Hinge-9530 · 135 Degree Glass to Glass Square Corner Adjustable Shower Hinge-9430
Installation Notes
- Confirm both panels are monolithic tempered glass within 8 mm (5/16″), 10 mm (3/8″), 12 mm (1/2″) and the joint is a true 135° angle.
- Mark the hinge position on both panels; the cup that takes the door weight goes on the fixed panel side.
- Clamp both cups to the glass edges and snug the set screws evenly – the rubber liners grip, do not crush.
- Level the door with the adjustment screws, then verify the gap line runs even from top to bottom.
- Check swing and self-close through the full arc. Professional installation recommended.
Frequently Asked Questions
What glass thickness does the Z-7431 fit?
The Z-7431 is rated for 8 mm (5/16″), 10 mm (3/8″), 12 mm (1/2″) monolithic tempered glass. Always use tempered (safety) glass – never annealed glass.
What is the Z-7431 made of?
The Z-7431’s hinge body is made of brass. Brass bodies take Zimmor’s full finish program, including PVD coatings for humid bathrooms.
How is the door adjusted after installation?
Hinges in this series include adjustment screws: close the door, check the vertical gaps, and correct the door position with the adjustment screws before final tightening.
Can this hinge be retrofitted to an existing enclosure?
Yes, if the drilled hole pattern on the existing door matches the hinge cup spacing. Measure before ordering – tempered panels cannot be re-drilled after the fact.
Do you supply the adjustable glass shower hinge for wholesale and OEM programs?
Yes – this model is produced in Zimmor’s Foshan factory for wholesale and OEM sourcing: custom finishes, packaging and volume pricing are confirmed per order.
