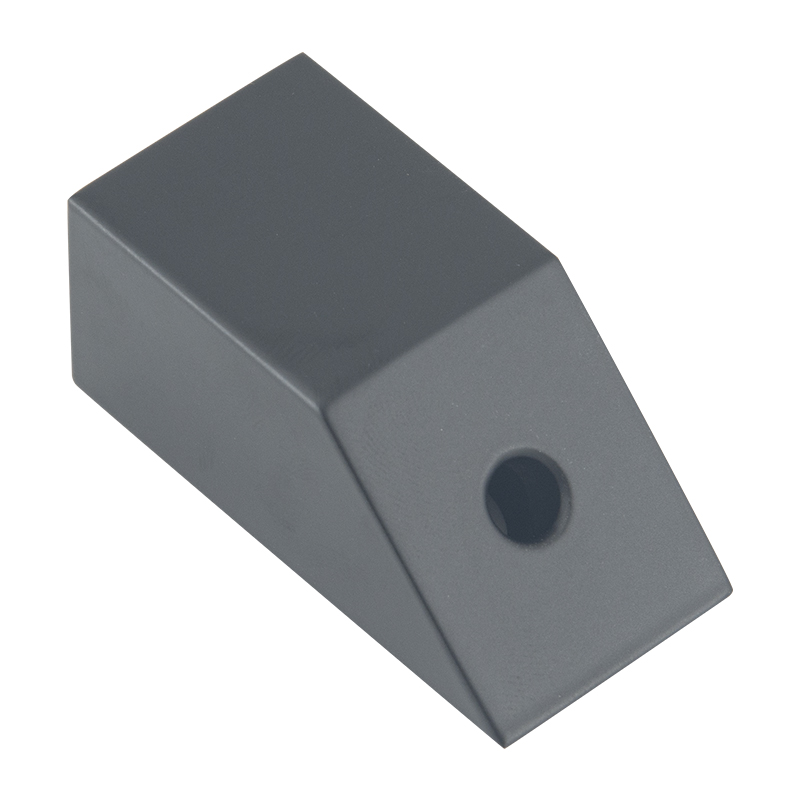

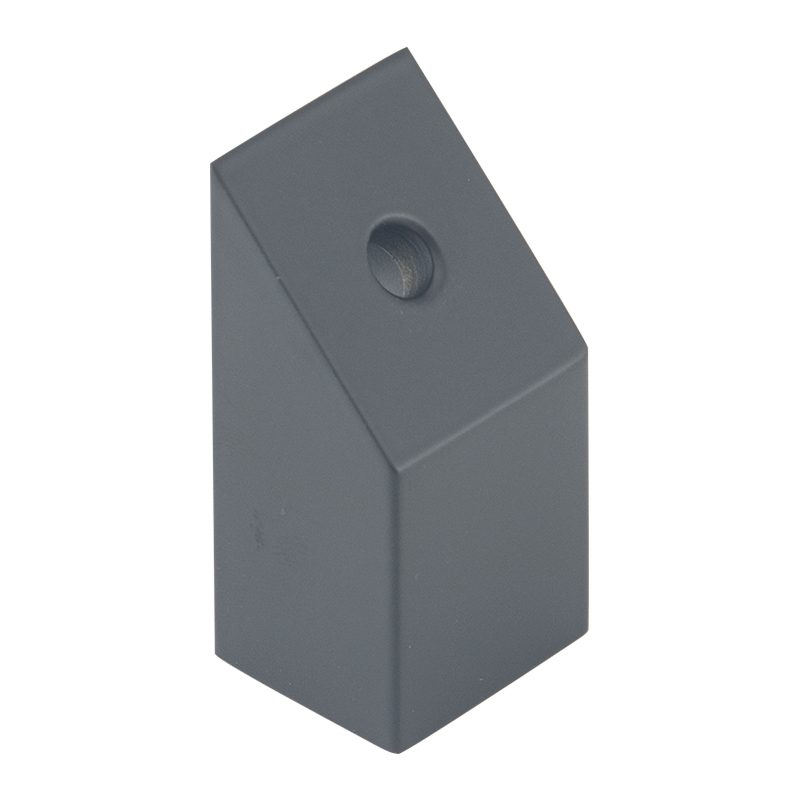

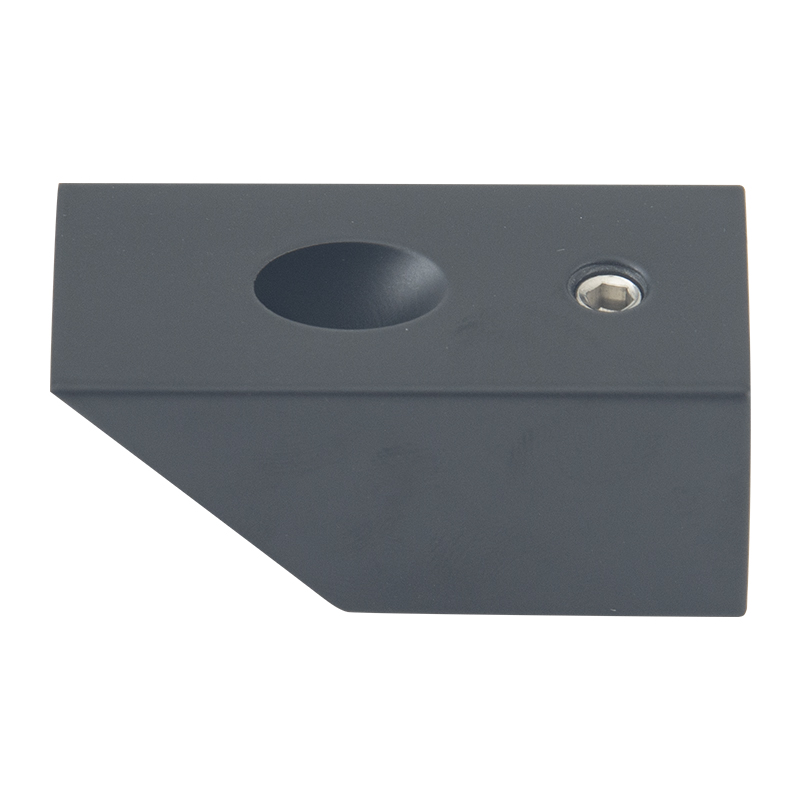

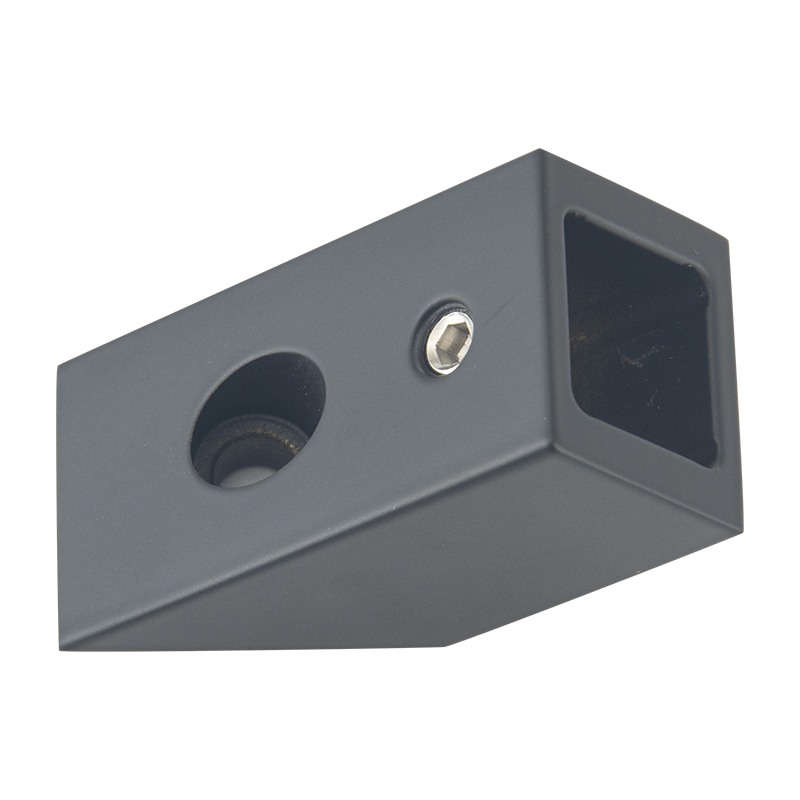

45 Degree Bracket Shower Support Bar Accessories-5806-15
45 Degree Bracket Shower Support Bar Accessories (Z-5806-15) is a shower support bar & bracket series that stiffens fixed frameless panels against lateral movement, made for 6 mm (1/4″), 8 mm (5/16″), 10 mm (3/8″) tempered glass, built from brass.
| Use Monolithic Tempered Glass For Glass Thicknesses | |||
| 1/2′′ （12MM） | 3/8′′ （10MM） | 5/16′′ （8MM） | 1/4′′ （6MM） |
| √ | √ | √ | |
Solid Brass Fittings
For 1/4″ to 2/5″ (6 to 10 mm)Glass
No Hole Drilling Required
Use On Safety Glass
The 45 Degree Bracket Shower Support Bar Accessories 5806 15 is a shower support bar accessory that stabilises frameless glass panels against lateral movement: bar-to-glass and bar-to-wall interfaces machined to clamp without crushing, finish-matched to the bathroom’s hardware program, and engineered so lateral loads travel into the wall — not into the panel’s set screws.
| Specification | Standard | Selection note |
|---|---|---|
| Interface | Bar-to-glass + bar-to-wall variants | Match to support bar profile |
| Material | Brass core, plated finish | PVD option for humid years |
| Glass thickness | 8–12 mm clamp range | Measure panel before ordering |
| Finish | Chrome / brushed nickel / matte black | Match room hardware set |
The support bar specification that pairs with these accessories — tubing, finishes and load paths — is detailed in the support bar specification guide. Reference: shower construction.
Key Features
- Glass compatibility: Clamp range 6 mm (1/4″), 8 mm (5/16″), 10 mm (3/8″) monolithic tempered glass
- Material: brass construction
Applications
- Stabilizing fixed glass panels in walk-in showers
- Wall-to-glass and glass-to-glass bracing in frameless enclosures
- Supporting tall panels where a header is not wanted
- Corner and T-junction layouts needing angled brackets
- Renovation jobs where the existing panel has started to wobble
- Wholesale and OEM sourcing programs – a recurring frameless shower support line for distributors

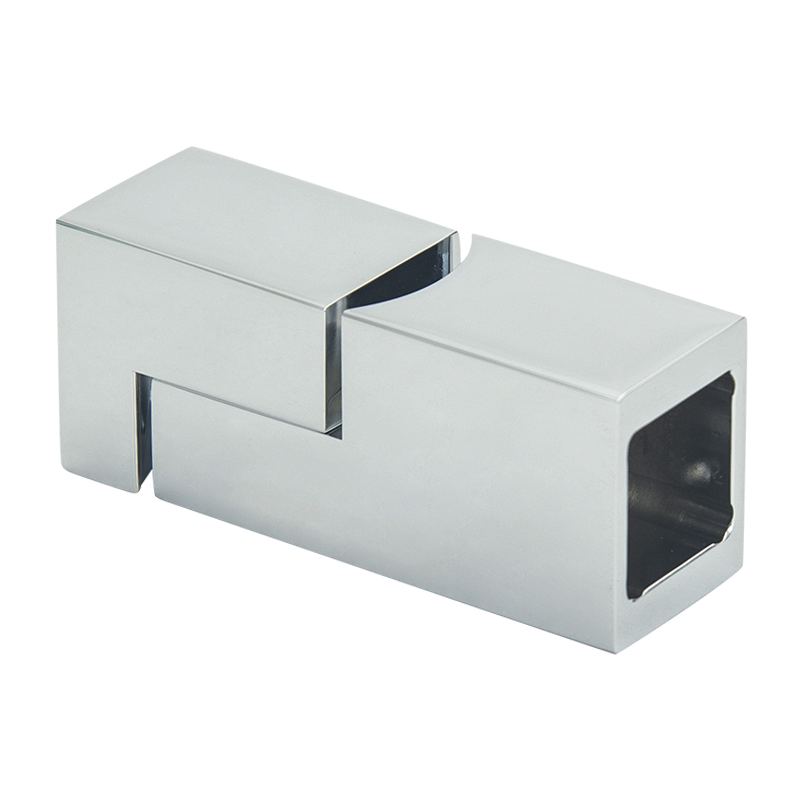

More in this series: Bar to Wall Bracket Shower Support Bar Accessories-5801-15 · Adjustable Wall Mount Bracket Shower Support Bar Accessories-5807-15
Installation Notes
- Install the fixed panel first and confirm it is plumb.
- Mark the bar position on wall and glass, then fit the wall bracket with suitable anchors.
- Clamp the bar to the glass with the rubber-lined glass bracket – snug, not crushing.
- Adjust length/angle (where the model allows) so the load reads into the wall, not the set screws.
- Professional installation recommended for panels above head height.
Frequently Asked Questions
What glass thickness does the Z-5806-15 fit?
The Z-5806-15 is rated for 6 mm (1/4″), 8 mm (5/16″), 10 mm (3/8″) monolithic tempered glass. Always use tempered (safety) glass – never annealed glass.
What is the Z-5806-15 made of?
The Z-5806-15 is built from brass. Solid metal construction matters on glass hardware – thin stamped parts creep loose under door loads.
Can a fixed shower panel stand without a support bar?
Short panels sometimes can, but a bar makes the panel independent of sealant and floor fixings: lateral loads read into the wall through the bar, not through the silicone line at the base.
Can a support bar be added to an already-installed panel?
Yes – the glass-side brackets clamp the panel edge without drilling. Confirm the bar length against the actual wall-to-glass distance before ordering.
Do you supply the corner support bar bracket for wholesale and OEM programs?
Yes – this model is produced in Zimmor’s Foshan factory for wholesale and OEM sourcing: custom finishes, packaging and volume pricing are confirmed per order.
