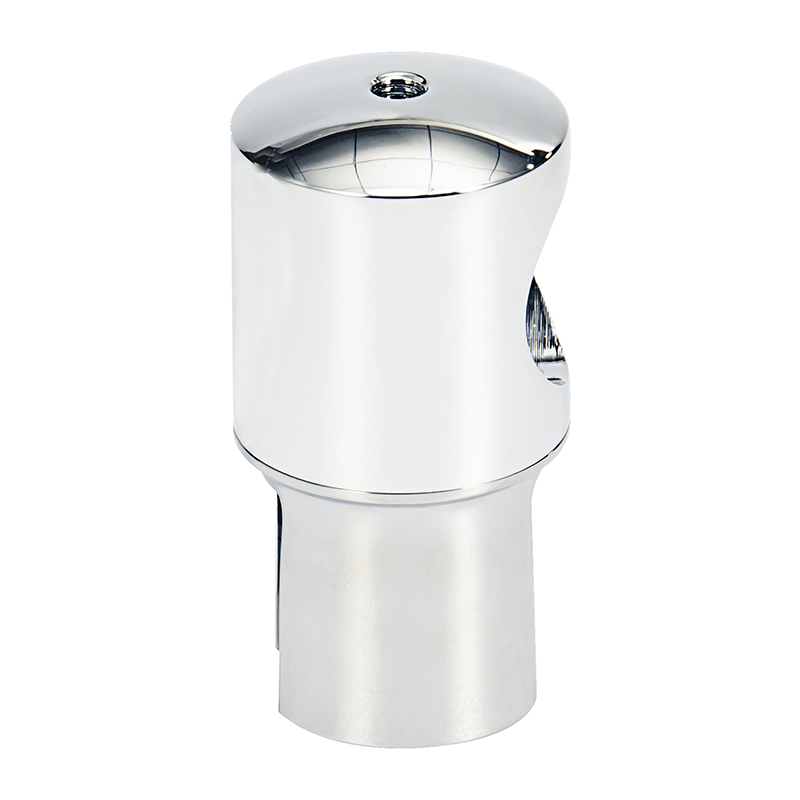

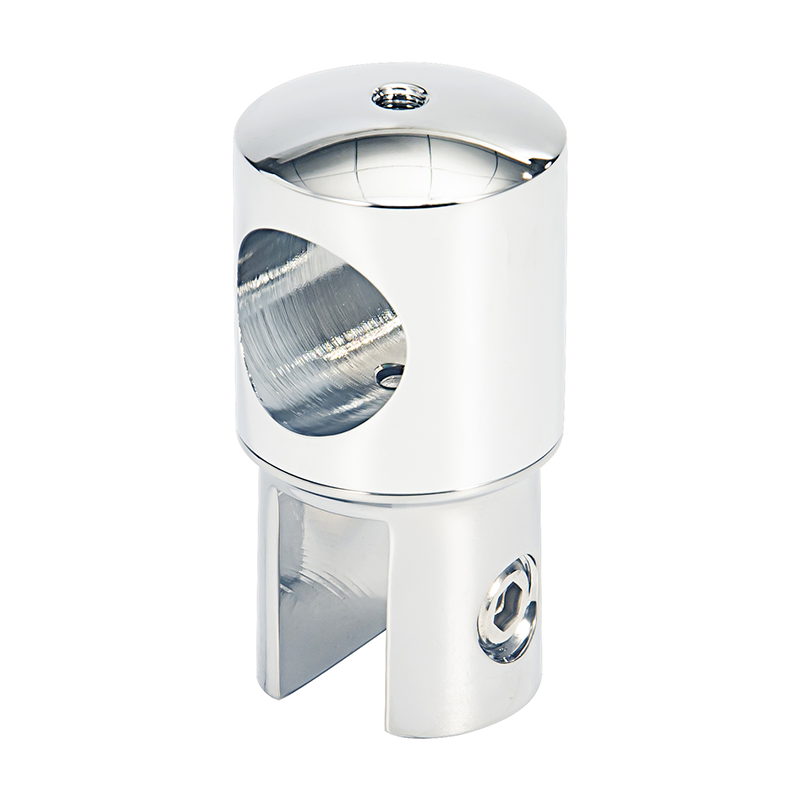

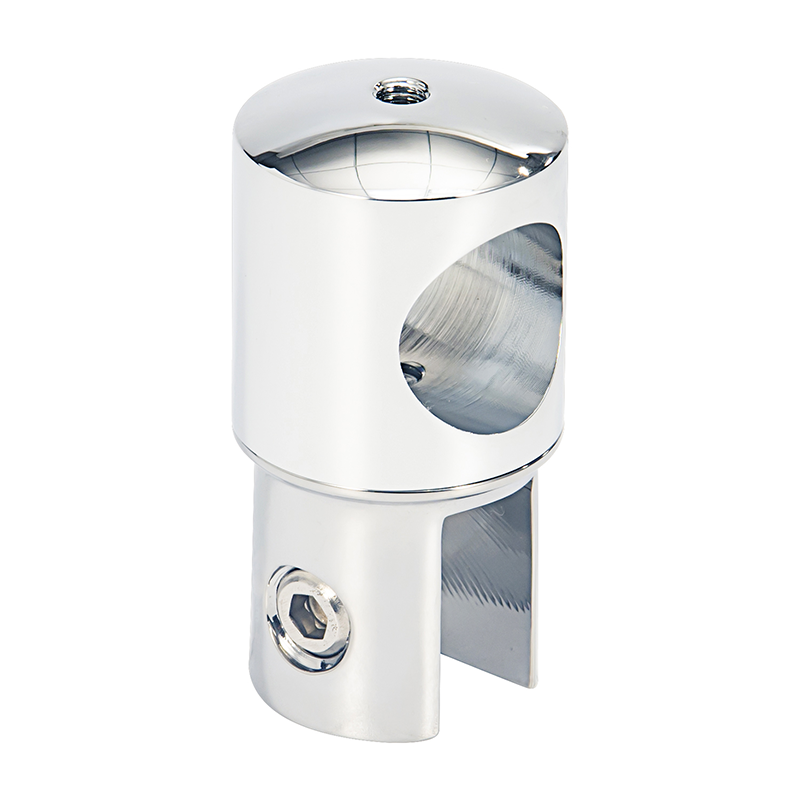

Bar to Glass Bracket Shower Support Bar Accessories-5513
Bar to Glass Bracket Shower Support Bar Accessories (Z-5513) is a shower support bar & bracket series that stiffens fixed frameless panels against lateral movement, built from brass.
Bar to Glass Bracket
The Bar To Glass Bracket Shower Support Bar Accessories 5513 is a shower support bar accessory that stabilises frameless glass panels against lateral movement: bar-to-glass and bar-to-wall interfaces machined to clamp without crushing, finish-matched to the bathroom’s hardware program, and engineered so lateral loads travel into the wall — not into the panel’s set screws.
| Specification | Standard | Selection note |
|---|---|---|
| Interface | Bar-to-glass + bar-to-wall variants | Match to support bar profile |
| Material | Brass core, plated finish | PVD option for humid years |
| Glass thickness | 8–12 mm clamp range | Measure panel before ordering |
| Finish | Chrome / brushed nickel / matte black | Match room hardware set |
The support bar specification that pairs with these accessories — tubing, finishes and load paths — is detailed in the support bar specification guide. Reference: shower construction.
Key Features
- Material: brass construction
Applications
- Stabilizing fixed glass panels in walk-in showers
- Wall-to-glass and glass-to-glass bracing in frameless enclosures
- Supporting tall panels where a header is not wanted
- Corner and T-junction layouts needing angled brackets
- Renovation jobs where the existing panel has started to wobble
- Wholesale and OEM sourcing programs – a recurring frameless shower support bar line for distributors
More in this series: Bar to Wall Bracket Support Bar Accessories-5512 · Movable Bracket Shower Support Bar Accessories-5514
Installation Notes
- Install the fixed panel first and confirm it is plumb.
- Mark the bar position on wall and glass, then fit the wall bracket with suitable anchors.
- Clamp the bar to the glass with the rubber-lined glass bracket – snug, not crushing.
- Adjust length/angle (where the model allows) so the load reads into the wall, not the set screws.
- Professional installation recommended for panels above head height.
Frequently Asked Questions
What is the Z-5513 made of?
The Z-5513 is built from brass. Solid metal construction matters on glass hardware – thin stamped parts creep loose under door loads.
Why does a frameless panel need a support bar?
A fixed glass panel is rigid edge-to-edge but flexible in the middle; lateral loads (door swing, cleaning bumps) travel into the middle of the panel. The support bar ties that middle zone back to the wall or the adjacent panel, so loads leave the glass instead of stressing it.
What diameter bar does this series use?
Bars in this series run on 19 mm (3/4″) diameter tubular brass, and the accessories clamp that same diameter – keep bar and brackets from one series.
Do you supply the frameless shower support bar for wholesale and OEM programs?
Yes – this model is produced in Zimmor’s Foshan factory for wholesale and OEM sourcing: custom finishes, packaging and volume pricing are confirmed per order.
