Zimmor Hardware

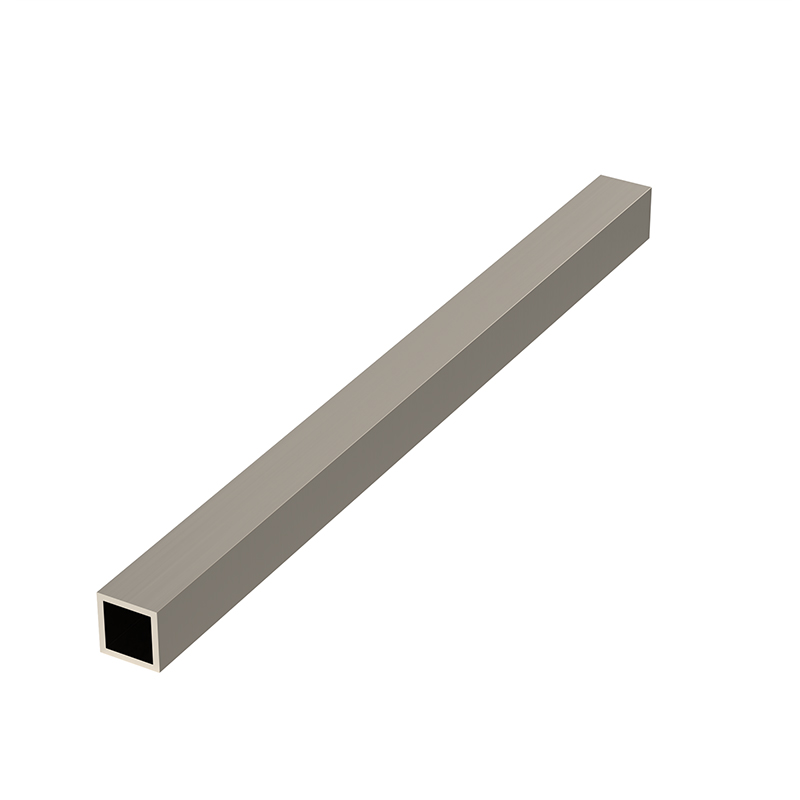

Brass Square Tubing-15mm Diameter

Brass Square Tubing-15mm Diameter (Z-5800-15) is a brass tubing & fitting used to build towel bars and pull handles, made for 6 mm (1/4″), 8 mm (5/16″), 10 mm (3/8″) tempered glass, built from brass.

✓ IN STOCK
Get A Quote

Send Inquiry

Please fill out the form below, we will quote you soon.

SHARE
Use Monolithic Tempered Glass For Glass Thicknesses
1/2′′ (12MM) 3/8′′ (10MM) 5/16′′ (8MM) 1/4′′ (6MM)
√ √ √



3/5″ (15 mm) Square Tubing
Hollow Brass Fittings
For 1/4″ to 2/5″ (6 to 10 mm) Glass
No Hole Drilling Required

For broader selection guidance, see our complete shower hardware specification guide and PVD coating guide.

Brass Square Tubing-15mm Diameter (Z-5800-15) is a brass tube section used to build towel bars, pull handles and custom glass-door hardware. The 15 mm square profile accepts fittings for 6-10 mm glass with no hole drilling required. Wholesale buyers commonly source this model as a glass door handle tube. For the wider selection context, see Zimmor’s product index.

Key Features

  • Glass compatibility: Fits 6 mm (1/4″), 8 mm (5/16″), 10 mm (3/8″) monolithic tempered glass
  • Material: brass construction
  • Tubing: 15 mm square brass profile, fittings fit 6-10 mm glass, no hole drilling

Applications

  • Fabricating custom-length towel bars for glass doors
  • Building pull handles matched to a project’s finish schedule
  • Replacement tube sections for damaged handle sets
  • Custom glass-door hardware in OEM programs
  • Wholesale and OEM sourcing programs – a recurring shower hardware tubing line for distributors

More in this series: 304 Stainless Steel Square Tubing-15mm Diameter · Brass Round Tube-19mm Diameter

Installation Notes

  1. Cut the tube to the required length against the project’s dimensions.
  2. Deburr the cut ends and insert the corresponding end fittings.
  3. Assemble onto the glass with the matching through-glass fixings.
  4. For 15 mm square profiles: fittings grip 6-10 mm glass edges – no hole drilling in the panel.

Frequently Asked Questions

What glass thickness does the Z-5800-15 fit?

The Z-5800-15 is rated for 6 mm (1/4″), 8 mm (5/16″), 10 mm (3/8″) monolithic tempered glass. Always use tempered (safety) glass – never annealed glass.

What is the Z-5800-15 made of?

The Z-5800-15 is built from brass. Solid metal construction matters on glass hardware – thin stamped parts creep loose under door loads.

Can I cut the tubing to my own length?

Yes – the tube is supplied in stock lengths and cut to size on site. Deburr the ends and seat the end fittings fully before mounting on the glass.

Which fittings fit this tube section?

End fittings, wall mounts and clamps from the same tube family match the 19 mm round or 15 mm square profile – keep the diameter consistent across the build.

Do you supply the frameless glass fittings for wholesale and OEM programs?

Yes – this model is produced in Zimmor’s Foshan factory for wholesale and OEM sourcing: custom finishes, packaging and volume pricing are confirmed per order.
