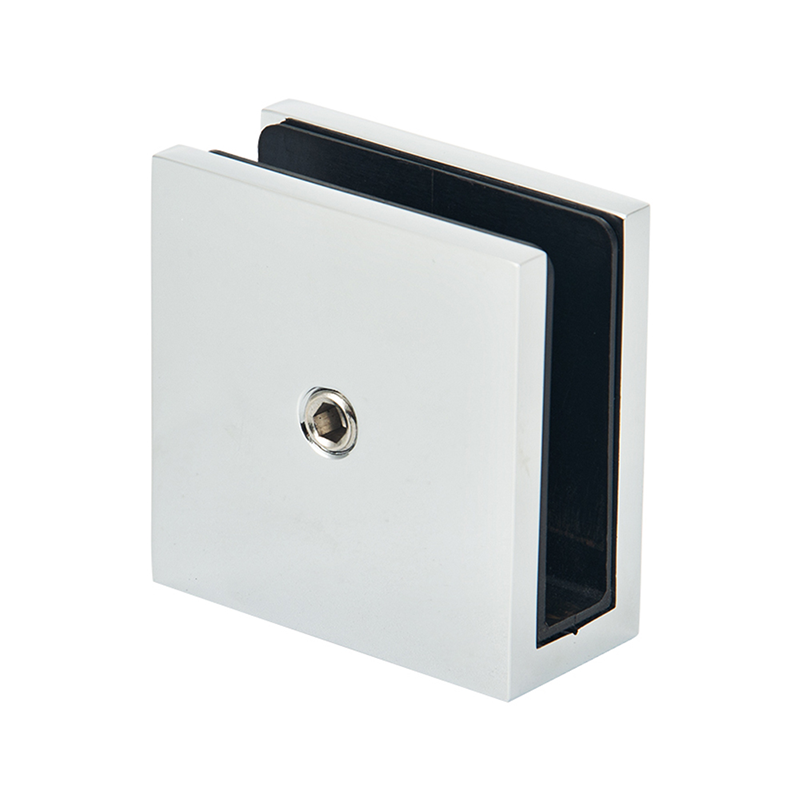

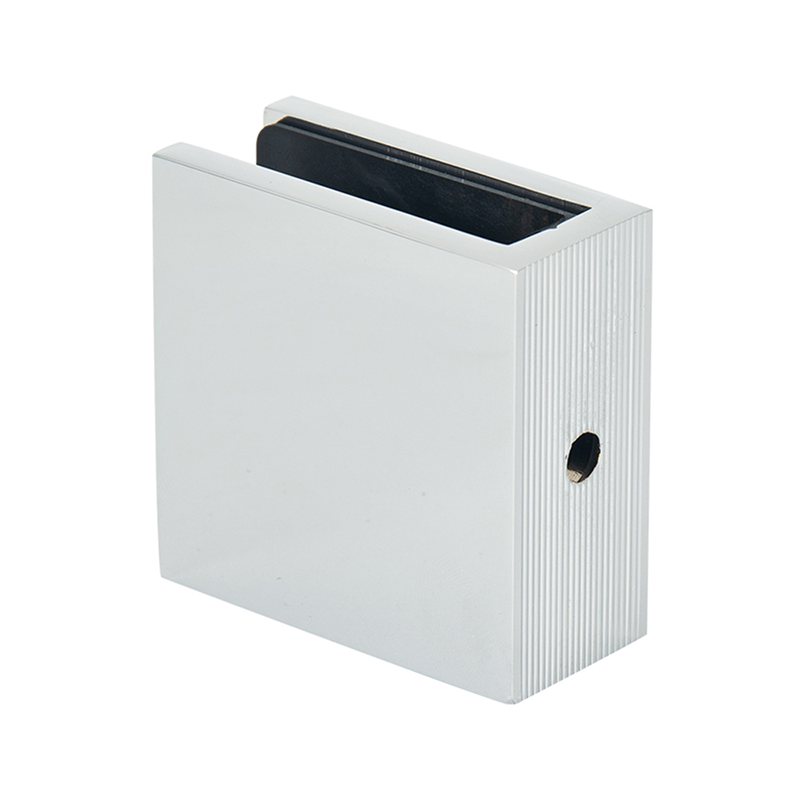

Notchless Shower Glass Clamp-4641
Notchless Shower Glass Clamp (Z-4641) is a shower glass clamp for frameless shower panels and glass partitions, made for 6 mm (1/4″), 8 mm (5/16″), 10 mm (3/8″) tempered glass.
Send Inquiry
Please fill out the form below, we will quote you soon.
| Use Monolithic Tempered Glass For Glass Thicknesses | |||
| 1/2′′ (12MM) | 3/8′′ (10MM) | 5/16′′ (8MM) | 1/4′′ (6MM) |
| √ | √ | √ | |
Designed for 1/4″(6mm) to 3/8″(10mm)Thick Glass
For broader selection guidance, see our complete shower hardware specification guide and PVD coating guide.
Notchless Shower Glass Clamp (Z-4641) is a frameless shower glass clamp for fixing glass panels to walls, floors or each other. It clamps 6 mm (1/4″), 8 mm (5/16″), 10 mm (3/8″) monolithic tempered glass without drilling the panel. Wholesale buyers commonly source this model as a frameless shower glass clamp. For the wider selection context, see Zimmor’s shower glass clamp guide.
Key Features
- Glass compatibility: Clamps 6 mm (1/4″), 8 mm (5/16″), 10 mm (3/8″) monolithic tempered glass
- Notchless: grips the glass edge without cutting notches in the panel
Applications
- Fixing shower screens to walls or floors without drilling the glass
- Glass-to-glass joints at 90°, 135° and 180° in frameless enclosures
- Balustrades and glass railings on balconies and stairs
- Office and retail glass partitions
- Display shelving and signage panels in commercial fit-outs
- Wholesale and OEM sourcing programs – a recurring glass to wall clamp line for distributors
More in this series: Notchless Shower Glass Clamp-4642 · 90° to 180° Adjustable Glass Clamp-CGC-AD002
Installation Notes
- Measure panel thickness before ordering – this clamp suits 6 mm (1/4″), 8 mm (5/16″), 10 mm (3/8″).
- Position the clamp, mark and drill the wall or floor, and anchor with suitable fixings.
- Set the glass in place and tighten the clamp screws evenly – the rubber liners carry the load, do not over-torque.
- Verify the panel is plumb before final tightening; adjust shims as needed.
- Never drill or notch tempered glass – all clamping is done on the panel edge. Professional installation recommended.
Frequently Asked Questions
What glass thickness does the Z-4641 clamp fit?
The Z-4641 works with 6 mm (1/4″), 8 mm (5/16″), 10 mm (3/8″) monolithic tempered glass. Measure the actual panel before ordering – glass thickness varies between suppliers, and the clamp rubber liners must match the real thickness, not the drawing.
What does notchless mean on a glass clamp?
A notchless clamp grips the glass edge without cutting notches into the panel, so fabrication is simpler and there is no stress riser at a cut. It suits retrofit jobs where the panel is already in place.
Can this clamp be used on a glass railing?
Yes, for railing infill panels within the rated thickness. Outdoor railing installs take 3-4 clamps per panel – confirm wind-load spacing with your glazier.
Do you supply the no notch glass clamp for wholesale and OEM programs?
Yes – this model is produced in Zimmor’s Foshan factory for wholesale and OEM sourcing: custom finishes, packaging and volume pricing are confirmed per order.
