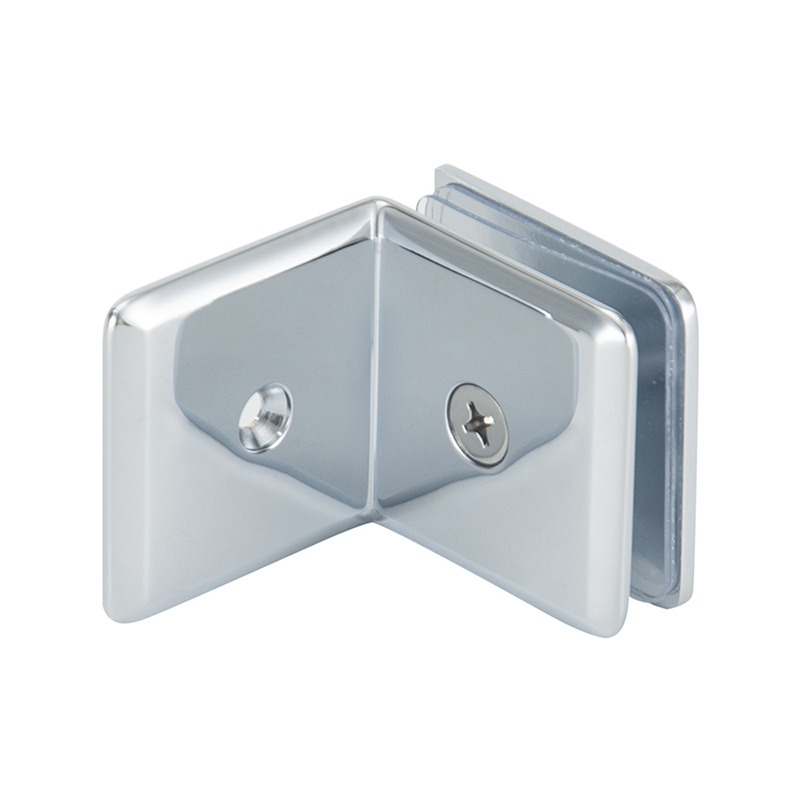

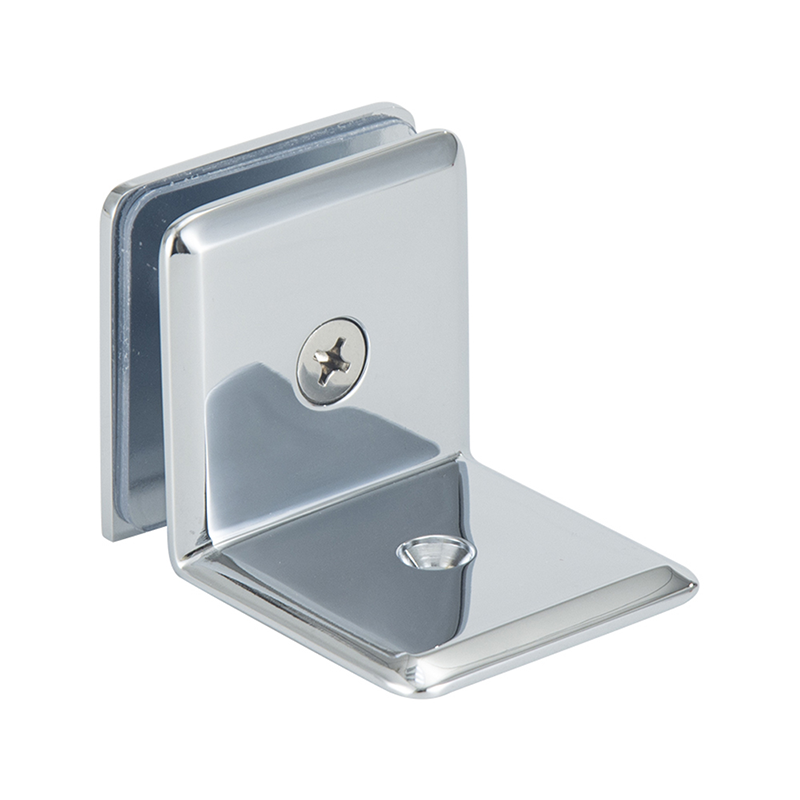

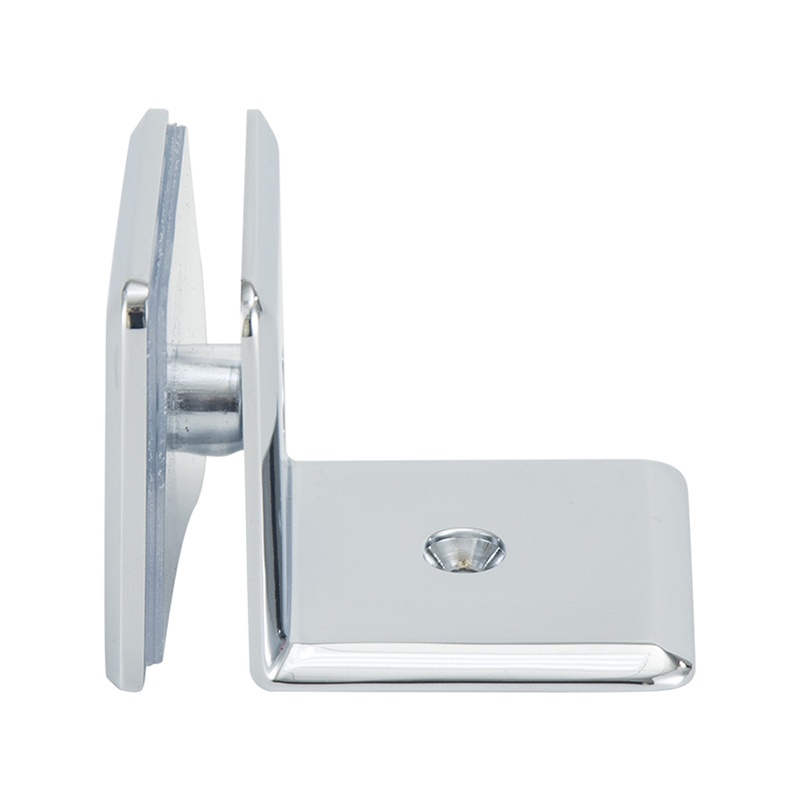

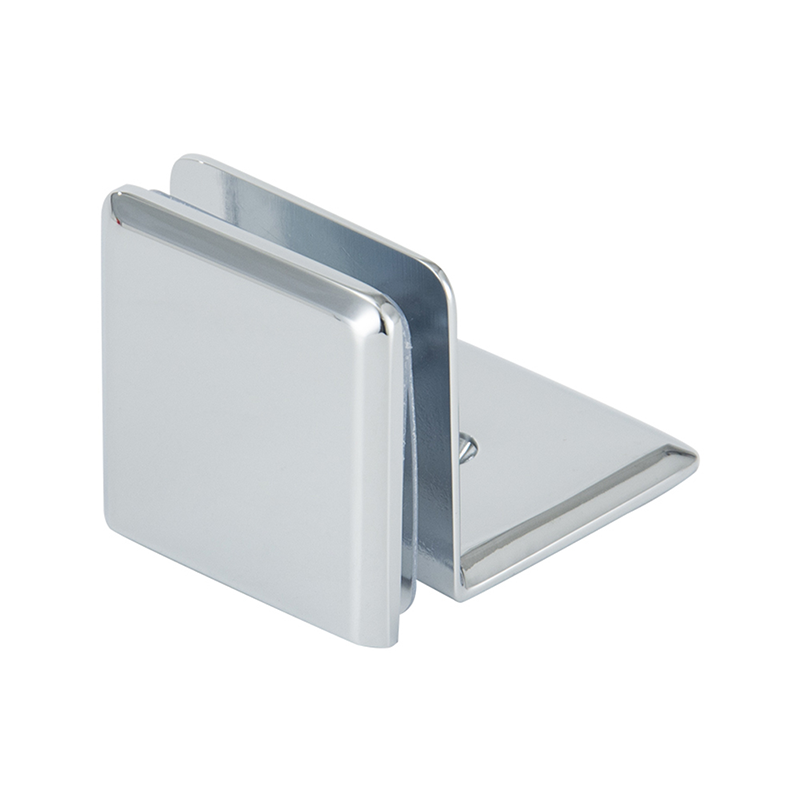

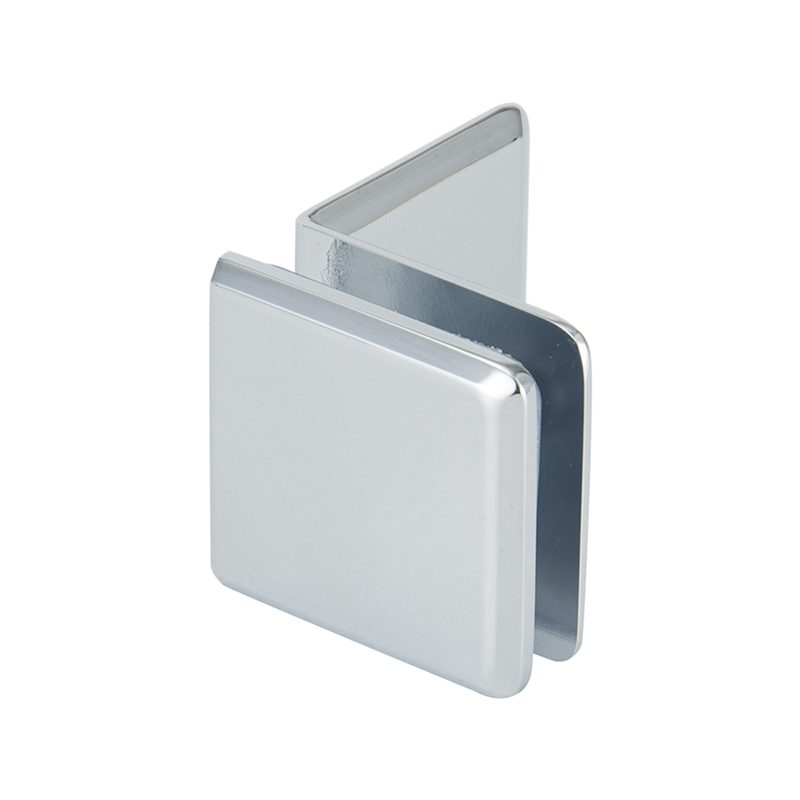

Beveled Edge Shower Glass Clamp-4715
Beveled Edge Shower Glass Clamp (Z-4715) is a shower glass clamp for frameless shower panels and glass partitions, made for 8 mm (5/16″), 10 mm (3/8″), 12 mm (1/2″) tempered glass.
| Use Monolithic Tempered Glass For Glass Thicknesses | |||
| 1/2′′ （12MM） | 3/8′′ （10MM） | 5/16′′ （8MM） | 1/4′′ （6MM） |
| √ | √ | √ | |
Designed for 5/16″(8mm) to 1/2″(12mm)Thick Glass
For broader selection guidance, see our complete shower hardware specification guide and PVD coating guide.
Beveled Edge Shower Glass Clamp (Z-4715) is a frameless shower glass clamp for fixing glass panels to walls, floors or each other. It clamps 8 mm (5/16″), 10 mm (3/8″), 12 mm (1/2″) monolithic tempered glass without drilling the panel. Wholesale buyers commonly source this model as a beveled edge glass clamp. For the wider selection context, see Zimmor’s shower glass clamp guide.
Key Features
- Glass compatibility: Clamps 8 mm (5/16″), 10 mm (3/8″), 12 mm (1/2″) monolithic tempered glass
- Geometry: built for 90° panel angles with a beveled-edge profile
Applications
- Fixing shower screens to walls or floors without drilling the glass
- Glass-to-glass joints at 90°, 135° and 180° in frameless enclosures
- Balustrades and glass railings on balconies and stairs
- Office and retail glass partitions
- Display shelving and signage panels in commercial fit-outs
- Wholesale and OEM sourcing programs – a recurring 12mm glass clamp line for distributors
More in this series: Beveled Edge Shower Glass Clamp-4701 · Beveled Edge Shower Glass Clamp-3000.13
Installation Notes
- Measure panel thickness before ordering – this clamp suits 8 mm (5/16″), 10 mm (3/8″), 12 mm (1/2″).
- Position the clamp, mark and drill the wall or floor, and anchor with suitable fixings.
- Set the glass in place and tighten the clamp screws evenly – the rubber liners carry the load, do not over-torque.
- Verify the panel is plumb before final tightening; adjust shims as needed.
- Never drill or notch tempered glass – all clamping is done on the panel edge. Professional installation recommended.
Frequently Asked Questions
What glass thickness does the Z-4715 clamp fit?
The Z-4715 works with 8 mm (5/16″), 10 mm (3/8″), 12 mm (1/2″) monolithic tempered glass. Measure the actual panel before ordering – glass thickness varies between suppliers, and the clamp rubber liners must match the real thickness, not the drawing.
How many clamps do I need per panel?
Small shower returns and screens normally take 2 clamps; taller panels and railing infills take 3-4 depending on height and wind exposure. Follow the span in your project drawing.
Does the clamp need periodic re-tightening?
Check the set screws once after the first week of use, then seasonally. Glass panels do not settle like timber, so clamps rarely need more than that.
Do you supply the frameless shower clamp for wholesale and OEM programs?
Yes – this model is produced in Zimmor’s Foshan factory for wholesale and OEM sourcing: custom finishes, packaging and volume pricing are confirmed per order.
