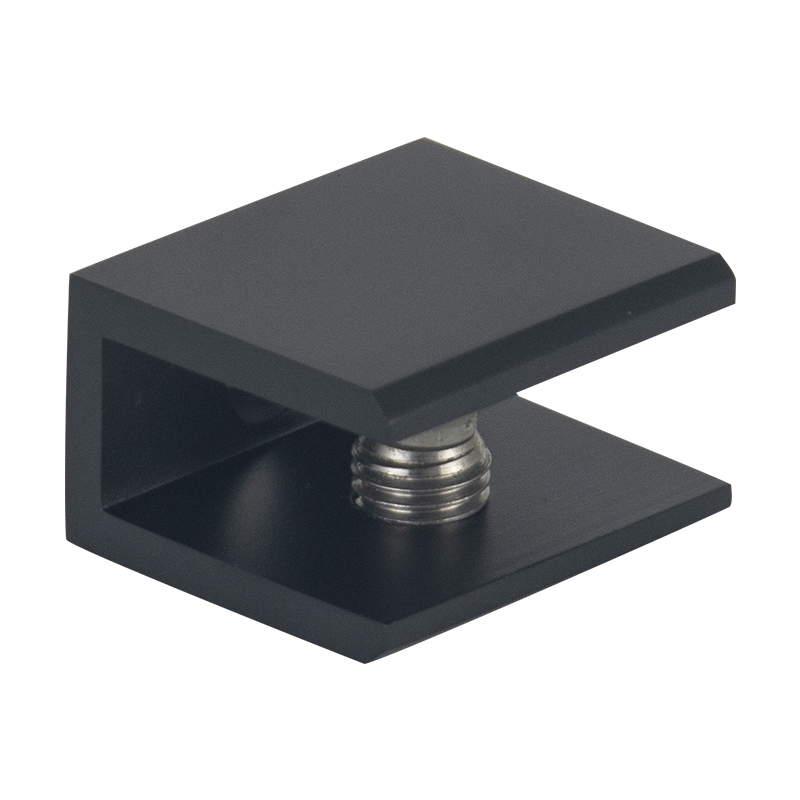

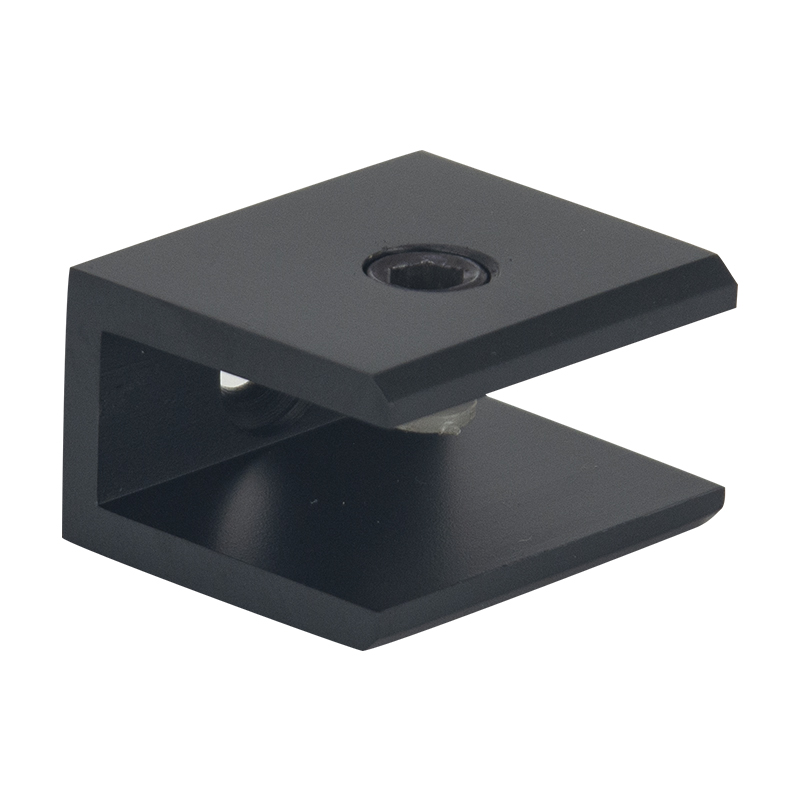

Glass Shelf Clamp-SC10
Glass Shelf Clamp (SC10) is a glass shelf bracket for frameless glass shower projects.
Send Inquiry
Please fill out the form below, we will quote you soon.
Size:1-1/8″(29mm)
Wide× 1″(25mm) Deep
Designed for 5/16″(8mm) to 3/8″(10mm)
For broader selection guidance, see our complete shower hardware specification guide and PVD coating guide.
Key Features
- OEM/ODM: dimensions and finishes can be produced to project specification
Applications
- Glass corner shelves inside shower enclosures
- Wood or glass display shelves in retail fit-outs
- Bathroom storage shelves on tiled walls
- Adjustable shelving where shelf thickness varies
- Wholesale and OEM sourcing programs – a recurring frameless shower shelf clamp line for distributors
More in this series: Glass Shelf Clamp-SC11 · Adjustable Shelf Bracket-DL631
Installation Notes
- Mark shelf height, drill and anchor the bracket base to the wall with the included screw.
- Rest the shelf on the bracket and turn the adjustment screw until it grips the 3-24 mm shelf.
- Check level; the adjustment screw compensates minor thickness variation.
- Load gradually and verify the shelf does not rock before stocking it.
Frequently Asked Questions
What shelf thickness does the bracket take?
It adjusts for 3-24 mm (1/8″-15/16″) glass or wood shelves via the adjustment screw – one bracket covers mixed shelf stock.
What information helps speed up a quotation?
Model number, glass thickness, finish and quantity. With those four details Zimmor sales can quote accurately and confirm the lead time.
Which glass thicknesses can you produce fittings for?
Zimmor produces fittings for the standard 6-12 mm tempered glass range, with custom tolerances for OEM projects. Confirm the actual panel thickness before ordering.
Do you supply the wall mount shelf bracket for wholesale and OEM programs?
Yes – this model is produced in Zimmor’s Foshan factory for wholesale and OEM sourcing: custom finishes, packaging and volume pricing are confirmed per order.
