Movable Bracket Shower Support Bar Accessories-5534
Movable Bracket Shower Support Bar Accessories (Z-5534) is a shower support bar & bracket series that stiffens fixed frameless panels against lateral movement, built from brass.
Movable Bracket for 1/4″(6mm) and 1/2″(12mm) Glass
The Movable Bracket Shower Support Bar Accessories 5534 is a shower support bar accessory that stabilises frameless glass panels against lateral movement: bar-to-glass and bar-to-wall interfaces machined to clamp without crushing, finish-matched to the bathroom’s hardware program, and engineered so lateral loads travel into the wall — not into the panel’s set screws.
| Specification | Standard | Selection note |
|---|---|---|
| Interface | Bar-to-glass + bar-to-wall variants | Match to support bar profile |
| Material | Brass core, plated finish | PVD option for humid years |
| Glass thickness | 8–12 mm clamp range | Measure panel before ordering |
| Finish | Chrome / brushed nickel / matte black | Match room hardware set |
The support bar specification that pairs with these accessories — tubing, finishes and load paths — is detailed in the support bar specification guide. Reference: shower construction.
Key Features
- Material: brass construction
Applications
- Stabilizing fixed glass panels in walk-in showers
- Wall-to-glass and glass-to-glass bracing in frameless enclosures
- Supporting tall panels where a header is not wanted
- Corner and T-junction layouts needing angled brackets
- Renovation jobs where the existing panel has started to wobble
- Wholesale and OEM sourcing programs – a recurring brass shower bracket line for distributors

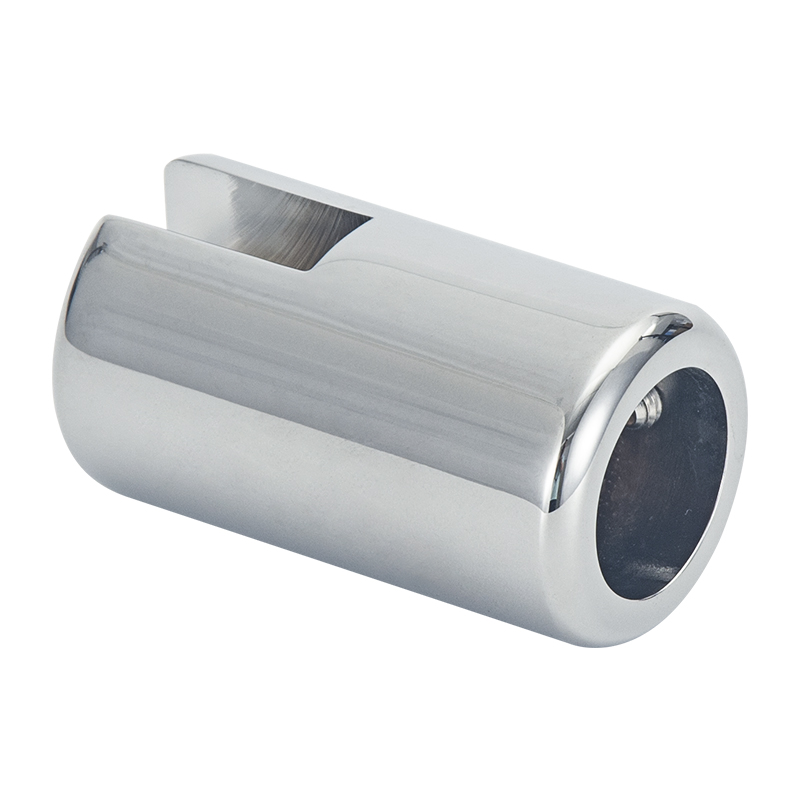

More in this series: Vertical Bracket Shower Support Bar Accessories-5533 · Swiveling U-Bracket Shower Support Bar Accessories-5537
Installation Notes
- Install the fixed panel first and confirm it is plumb.
- Mark the bar position on wall and glass, then fit the wall bracket with suitable anchors.
- Clamp the bar to the glass with the rubber-lined glass bracket – snug, not crushing.
- Adjust length/angle (where the model allows) so the load reads into the wall, not the set screws.
- Professional installation recommended for panels above head height.
Frequently Asked Questions
What is the Z-5534 made of?
The Z-5534 is built from brass. Solid metal construction matters on glass hardware – thin stamped parts creep loose under door loads.
Can a fixed shower panel stand without a support bar?
Short panels sometimes can, but a bar makes the panel independent of sealant and floor fixings: lateral loads read into the wall through the bar, not through the silicone line at the base.
Can a support bar be added to an already-installed panel?
Yes – the glass-side brackets clamp the panel edge without drilling. Confirm the bar length against the actual wall-to-glass distance before ordering.
Do you supply the frameless glass support for wholesale and OEM programs?
Yes – this model is produced in Zimmor’s Foshan factory for wholesale and OEM sourcing: custom finishes, packaging and volume pricing are confirmed per order.
