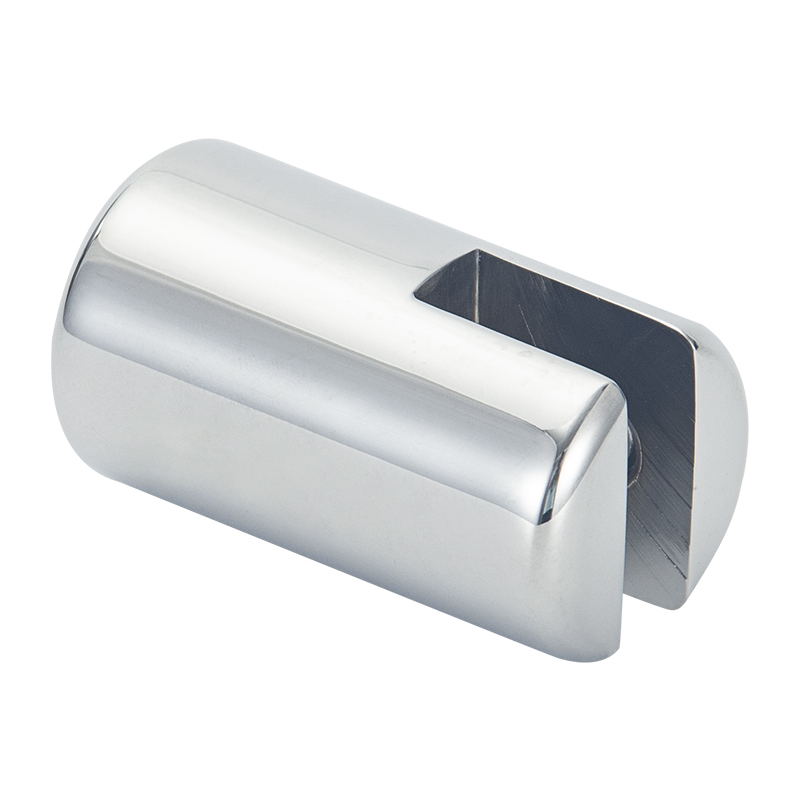

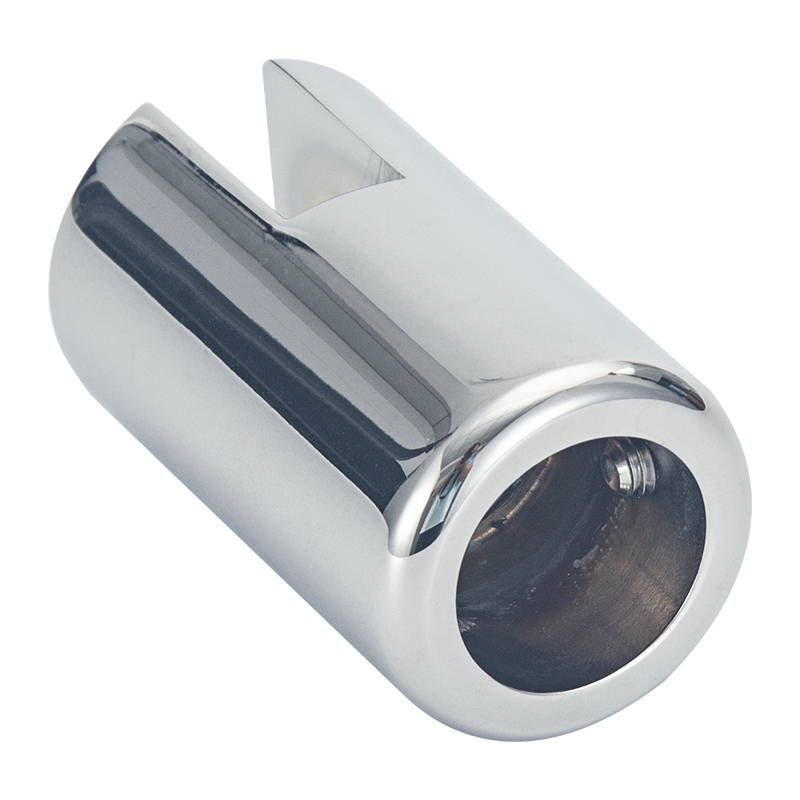

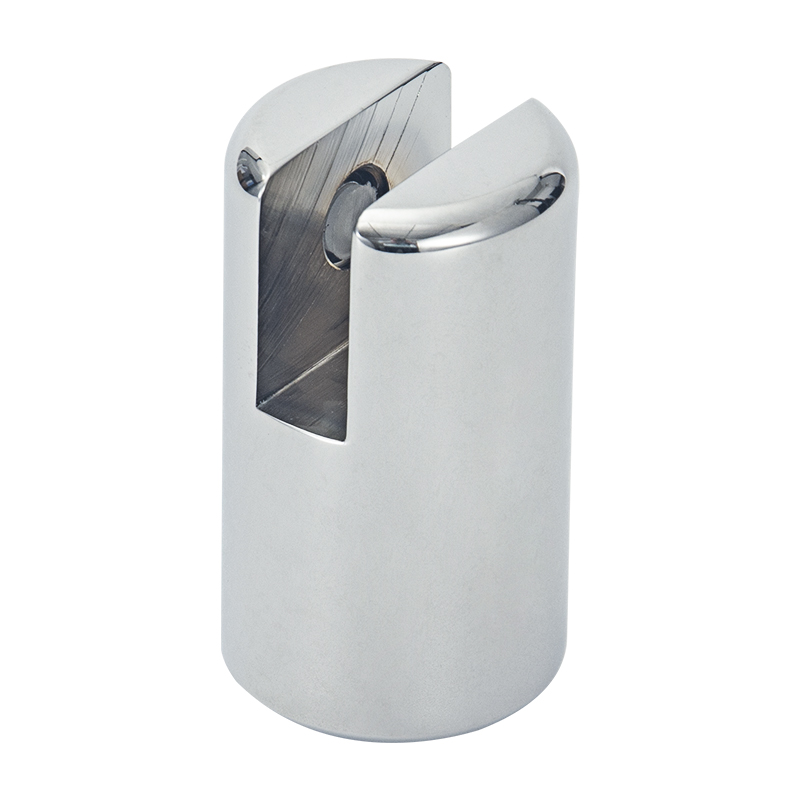

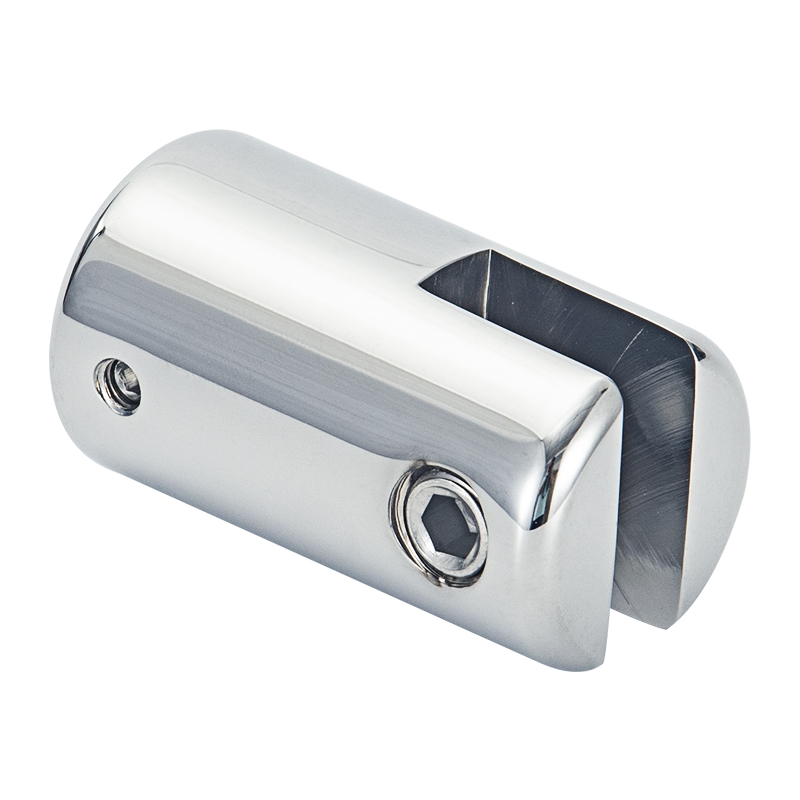

Vertical Bracket Shower Support Bar Accessories-5533
Vertical Bracket Shower Support Bar Accessories (Z-5533) is a shower support bar & bracket series that stiffens fixed frameless panels against lateral movement, built from brass.
Vertical Support Bracket for 1/4″(6mm) to 1/2″(12mm) Glass
The Vertical Bracket Shower Support Bar Accessories 5533 is a shower support bar accessory that stabilises frameless glass panels against lateral movement: bar-to-glass and bar-to-wall interfaces machined to clamp without crushing, finish-matched to the bathroom’s hardware program, and engineered so lateral loads travel into the wall — not into the panel’s set screws.
| Specification | Standard | Selection note |
|---|---|---|
| Interface | Bar-to-glass + bar-to-wall variants | Match to support bar profile |
| Material | Brass core, plated finish | PVD option for humid years |
| Glass thickness | 8–12 mm clamp range | Measure panel before ordering |
| Finish | Chrome / brushed nickel / matte black | Match room hardware set |
The support bar specification that pairs with these accessories — tubing, finishes and load paths — is detailed in the support bar specification guide. Reference: shower construction.
Key Features
- Material: brass construction
Applications
- Stabilizing fixed glass panels in walk-in showers
- Wall-to-glass and glass-to-glass bracing in frameless enclosures
- Supporting tall panels where a header is not wanted
- Corner and T-junction layouts needing angled brackets
- Renovation jobs where the existing panel has started to wobble
- Wholesale and OEM sourcing programs – a recurring shower support bar bracket line for distributors

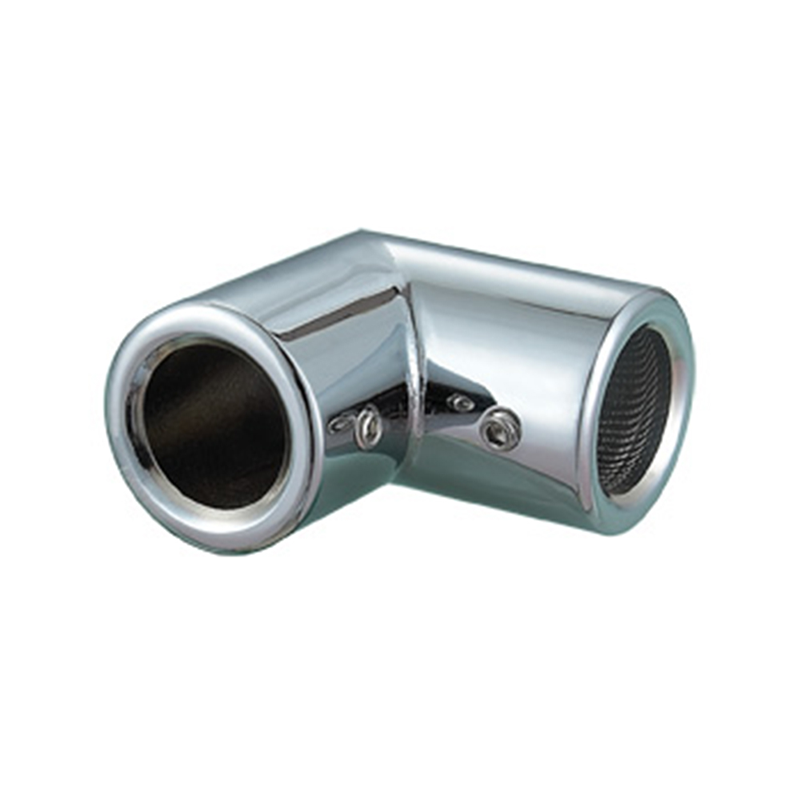

More in this series: 90 Degree Corner Bracket Shower Support Bar Accessories-5515-90 · Movable Bracket Shower Support Bar Accessories-5534
Installation Notes
- Install the fixed panel first and confirm it is plumb.
- Mark the bar position on wall and glass, then fit the wall bracket with suitable anchors.
- Clamp the bar to the glass with the rubber-lined glass bracket – snug, not crushing.
- Adjust length/angle (where the model allows) so the load reads into the wall, not the set screws.
- Professional installation recommended for panels above head height.
Frequently Asked Questions
What is the Z-5533 made of?
The Z-5533 is built from brass. Solid metal construction matters on glass hardware – thin stamped parts creep loose under door loads.
How strong is a support bar connection?
The bar does not carry gravity – the panel stands on its own – but it must resist lateral push. That is why the wall side anchors into structure and the glass side clamps with rubber-lined brackets, keeping the temper intact.
Can the brackets be repositioned after fitting?
Movable and swiveling types slide or rotate on the bar, so small corrections are easy. Fixed-angle brackets should be re-drilled rather than forced.
Do you supply the frameless glass support for wholesale and OEM programs?
Yes – this model is produced in Zimmor’s Foshan factory for wholesale and OEM sourcing: custom finishes, packaging and volume pricing are confirmed per order.
