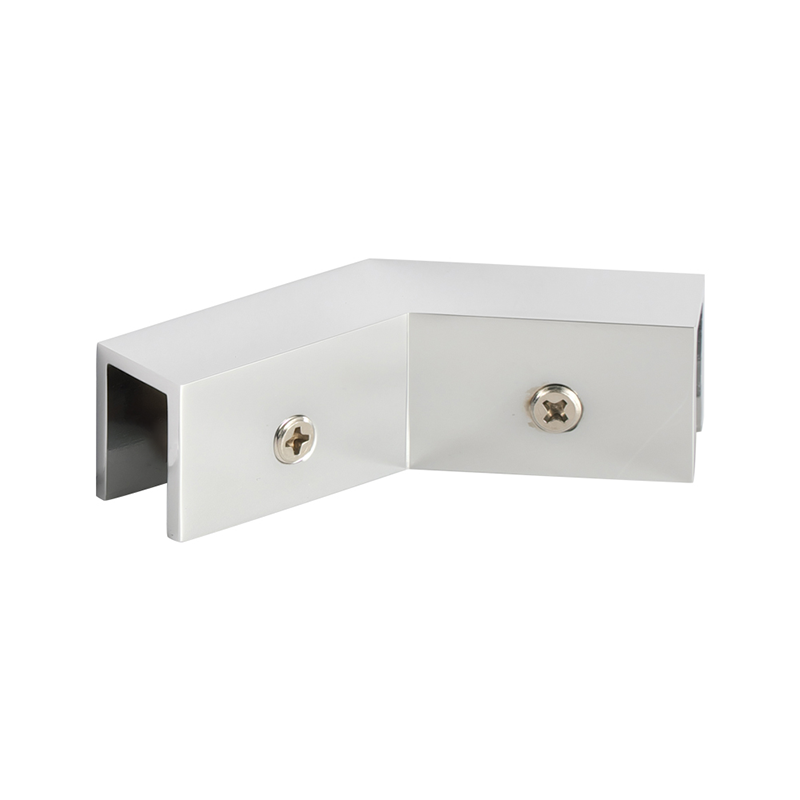

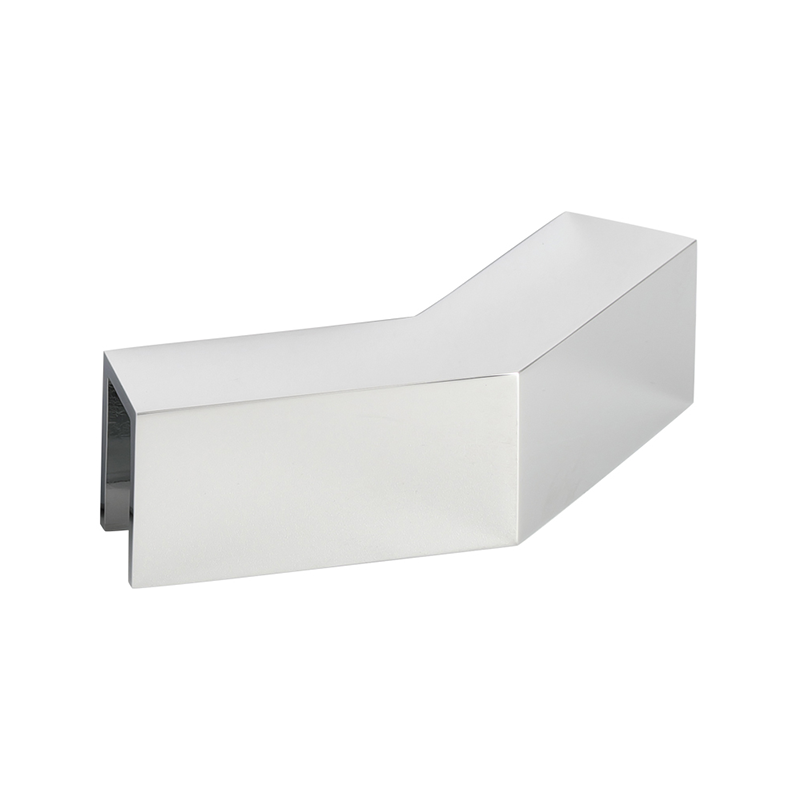

135 Degree Glass to Glass Sleeve Over Glass Clamp-CGC135
135 Degree Glass to Glass Sleeve Over Glass Clamp (Z-CGC135) is a shower glass clamp for frameless shower panels and glass partitions, made for 8 mm (5/16″), 10 mm (3/8″) tempered glass.
| Use Monolithic Tempered Glass For Glass Thicknesses | |||
| 1/2′′ （12MM） | 3/8′′ （10MM） | 5/16′′ （8MM） | 1/4′′ （6MM） |
| √ | √ | ||
Wide× 1″(25mm)
Designed for 5/16″(8mm) to 1/2″(10mm)
For broader selection guidance, see our complete shower hardware specification guide and PVD coating guide.
135 Degree Glass to Glass Sleeve Over Glass Clamp (Z-CGC135) is a frameless shower glass clamp for 135° glass-to-glass joints. It clamps 8 mm (5/16″), 10 mm (3/8″) monolithic tempered glass without drilling the panel. Wholesale buyers commonly source this model as a 135 degree glass clamp. For the wider selection context, see Zimmor’s shower glass clamp guide.
Key Features
- Glass compatibility: Clamps 8 mm (5/16″), 10 mm (3/8″) monolithic tempered glass
- Geometry: built for 135° panel angles
- Sleeve-over design: slides over the glass edge, no fabrication of the panel needed
Applications
- Fixing shower screens to walls or floors without drilling the glass
- Glass-to-glass joints at 90°, 135° and 180° in frameless enclosures
- Balustrades and glass railings on balconies and stairs
- Office and retail glass partitions
- Display shelving and signage panels in commercial fit-outs
- Wholesale and OEM sourcing programs – a recurring shower glass clamp line for distributors
More in this series: 90 Degree Glass to Glass Sleeve Over Glass Clamp-CGC90 · Standard Duty Shower Glass Clamp With Cover-3100.49
Installation Notes
- Measure the glass edge – this clamp suits 8 mm (5/16″), 10 mm (3/8″).
- Slide the clamp body over the finished glass edge like a sleeve – the panel is never drilled or notched.
- Align the clamp to the wall or mating panel line, then fix the mounting holes behind it.
- Tighten the set screws so the liners grip the glass evenly.
- Ideal for retrofit work on panels already installed. Professional installation recommended.
Frequently Asked Questions
What glass thickness does the Z-CGC135 clamp fit?
The Z-CGC135 works with 8 mm (5/16″), 10 mm (3/8″) monolithic tempered glass. Measure the actual panel before ordering – glass thickness varies between suppliers, and the clamp rubber liners must match the real thickness, not the drawing.
How does a sleeve-over clamp install?
The clamp body slides over the glass edge like a sleeve and is fixed with screws – the panel itself is never drilled or notched, which keeps the temper intact.
Will the clamp leave marks on the glass edge?
No – the clamp grips through rubber liners. Keep the liners clean during fitting; grit trapped under a liner is what actually causes edge marks.
Do you supply the glass to glass clamp for wholesale and OEM programs?
Yes – this model is produced in Zimmor’s Foshan factory for wholesale and OEM sourcing: custom finishes, packaging and volume pricing are confirmed per order.
