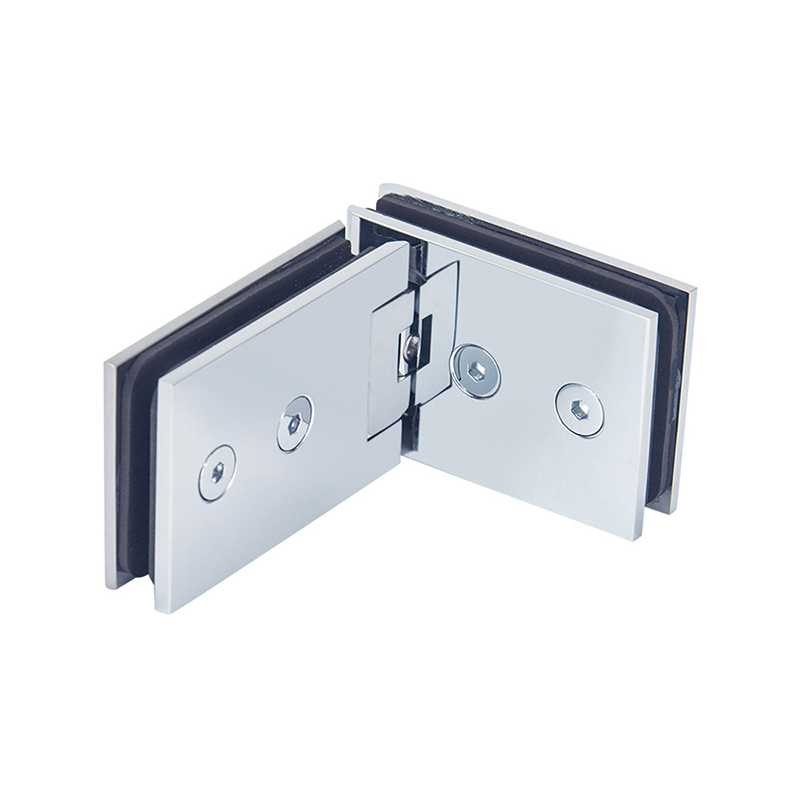

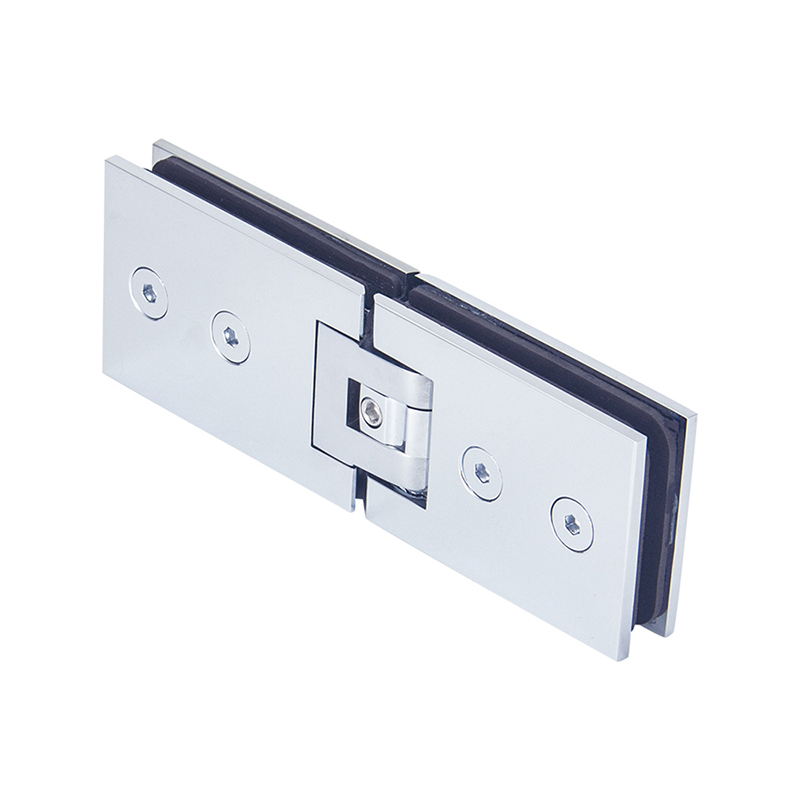

Adjustable Rectangular Flat Shower Hinge-8320
Adjustable Rectangular Flat Shower Hinge (Z-8320) is a shower door hinge for frameless shower doors, made for 6 mm (1/4″), 8 mm (5/16″), 10 mm (3/8″) tempered glass, built from solid forged brass.
| Use Monolithic Tempered Glass For Glass Thicknesses | |||
| 1/2′′ （12MM） | 3/8′′ （10MM） | 5/16′′ （8MM） | 1/4′′ （6MM） |
| √ | √ | √ | |
Designed for 1/4″(6mm) to 3/8″(10mm) Tempered safety Glass
Solid Forged Brass Construction
The angle of the Hinge can be Adjusted
Wall Mount Both Side Back Plate
For broader selection guidance, see our complete shower hardware specification guide and PVD coating guide.
Adjustable Rectangular Flat Shower Hinge (Z-8320) is a adjustable frameless shower door hinge at a 180° panel angle. It is engineered for 6 mm (1/4″), 8 mm (5/16″), 10 mm (3/8″) monolithic tempered glass. The body is machined from solid forged brass. Wholesale buyers commonly source this model as a adjustable shower hinge. For the wider selection context, see Zimmor’s shower door hinge guide.
Key Features
- Glass compatibility: Fits 6 mm (1/4″), 8 mm (5/16″), 10 mm (3/8″) monolithic tempered glass
- Material: solid forged brass construction
- Adjustable: door alignment can be corrected after installation
- Geometry: built for 180° panel angles
Applications
- Frameless pivot shower doors in residential bathrooms
- Hotel and gym wet rooms where doors take daily, heavy use
- Wall-to-glass openings in walk-in showers
- Renovation projects replacing framed doors with frameless glass
- Custom enclosures spec’d by architects and glazing contractors
- Wholesale and OEM sourcing programs – a recurring forged brass shower hinge line for distributors
More in this series: Adjustable Rectangular Flat Shower Hinge With Cover-8309F · Adjustable Rectangular Flat Shower Hinge-8330
Installation Notes
- Confirm the door and panel are monolithic (tempered) safety glass and within 6 mm (1/4″), 8 mm (5/16″), 10 mm (3/8″) range.
- Mark hole positions on a plumb, solid substrate, drill, and secure with appropriate wall anchors and the hinge mounting screws.
- Hang the door on the hinge and close it; use the adjustment screws to level the gaps before final tightening.
- Check swing and self-close action through the full arc; confirm the door does not contact the fixed panel.
- Wall substrate must carry the door weight – tile over drywall needs backing or through-bolts. Professional installation recommended.
Frequently Asked Questions
What glass thickness does the Z-8320 fit?
The Z-8320 is rated for 6 mm (1/4″), 8 mm (5/16″), 10 mm (3/8″) monolithic tempered glass. Always use tempered (safety) glass – never annealed glass.
What is the Z-8320 made of?
The Z-8320’s hinge body is made of solid forged brass. Brass bodies take Zimmor’s full finish program, including PVD coatings for humid bathrooms.
What does the adjustment screw control?
It moves the glass cup relative to the back plate, so the door gaps can be leveled after hanging. Make final adjustments with the door closed, then lock the screws down.
Can I use this hinge on a heavy frameless door?
Yes, within the rated glass range. For heavier leaves, step up to the heavy-duty series or add a third hinge point so the load splits across the leaf.
Do you supply the rectangular shower hinge for wholesale and OEM programs?
Yes – this model is produced in Zimmor’s Foshan factory for wholesale and OEM sourcing: custom finishes, packaging and volume pricing are confirmed per order.
