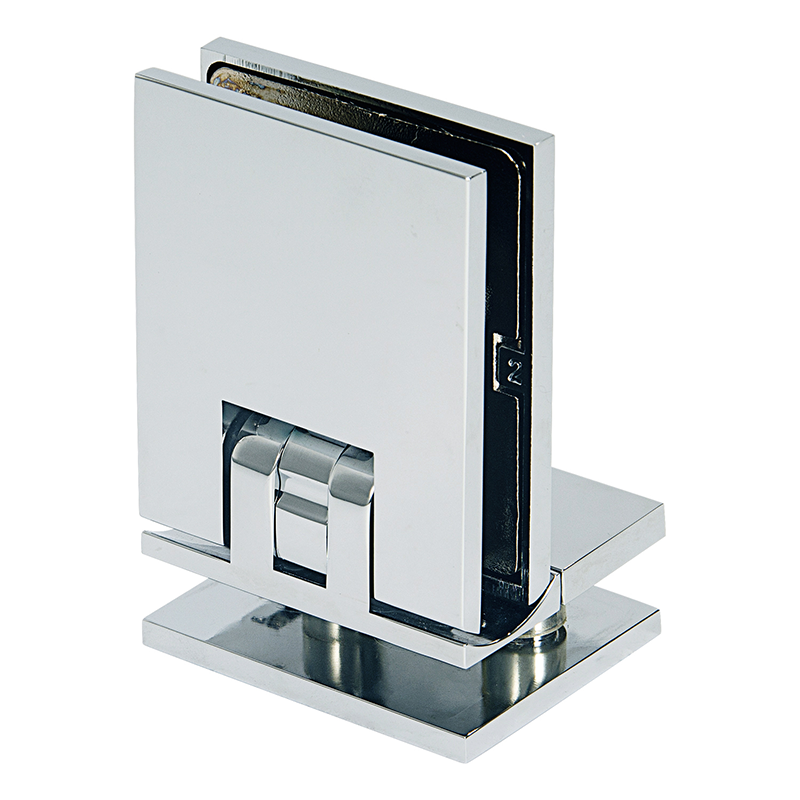

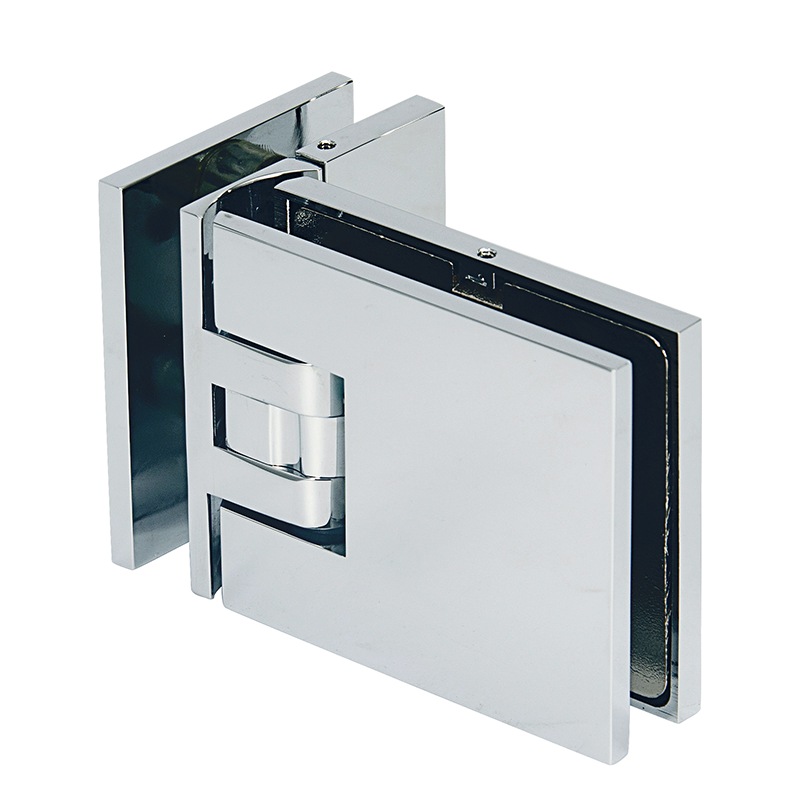

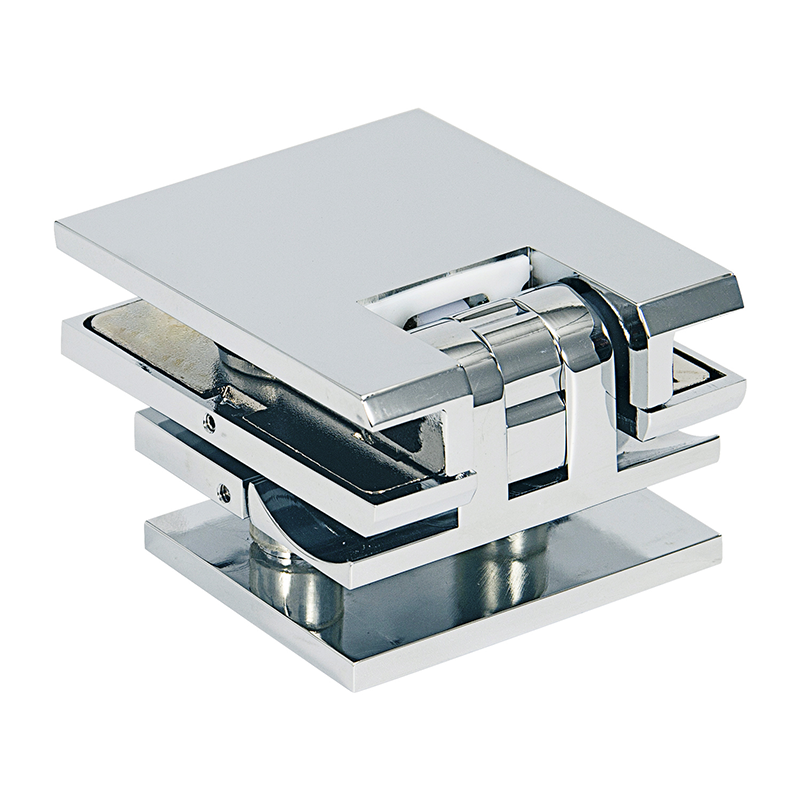

Rectangular Flat Adjustable Shower Hinge With Cover-7X42

Rectangular Flat Adjustable Shower Hinge With Cover (7X42) is a shower door hinge for frameless shower doors, made for 6 mm (1/4″), 8 mm (5/16″), 10 mm (3/8″) tempered glass, built from brass.

✓ IN STOCK
Get A Quote

Send Inquiry

Please fill out the form below, we will quote you soon.

SHARE
Use Monolithic Tempered Glass For Glass Thicknesses
1/2′′ (12MM) 3/8′′ (10MM) 5/16′′ (8MM) 1/4′′ (6MM)
√ √ √



High Quality Forged Solid Brass Material
The Angle of the Hinge can be Adjusted



All Finishes Available
Maximum 1/4″(6mm)  5/16″(8mm) Glass 3/8″(10mm) Glass
Capacities Weight Door Width Weight Door Width
Using Two Hinges 88 lbs/40kg 35″/900mm 88 lbs/40kg 31″/800mm

For broader selection guidance, see our complete shower hardware specification guide and PVD coating guide.

Rectangular Flat Adjustable Shower Hinge With Cover (7X42) is a adjustable frameless shower door hinge at a 90° panel angle. It is engineered for 6 mm (1/4″), 8 mm (5/16″), 10 mm (3/8″) monolithic tempered glass. The body is machined from brass. It is available in Zimmor’s full finish program (PVD included) to match the rest of the enclosure hardware. Wholesale buyers commonly source this model as a rectangular shower hinge with cover. For the wider selection context, see Zimmor’s shower door hinge guide.

Key Features

  • Glass compatibility: Fits 6 mm (1/4″), 8 mm (5/16″), 10 mm (3/8″) monolithic tempered glass
  • Material: brass construction
  • Adjustable: door alignment can be corrected after installation
  • Geometry: built for 90° panel angles
  • Covered design: cover plate conceals the fixings for a clean look
  • Finishes: full Zimmor finish program available, PVD included

Applications

  • Frameless pivot shower doors in residential bathrooms
  • Hotel and gym wet rooms where doors take daily, heavy use
  • Wall-to-glass openings in walk-in showers
  • Renovation projects replacing framed doors with frameless glass
  • Custom enclosures spec’d by architects and glazing contractors
  • Wholesale and OEM sourcing programs – a recurring forged brass glass hinge line for distributors

More in this series: Rectangular Flat Adjustable Shower Hinge With Cover-7X30 · Flat Square Corner Adjustable Shower Hinge with Cover-7809F

Installation Notes

  1. Confirm the door and panel are monolithic (tempered) safety glass and within 6 mm (1/4″), 8 mm (5/16″), 10 mm (3/8″) range.
  2. Mark hole positions on a plumb, solid substrate, drill, and secure with appropriate wall anchors and the hinge mounting screws.
  3. Hang the door on the hinge and close it; use the adjustment screws to level the gaps before final tightening.
  4. Check swing and self-close action through the full arc; confirm the door does not contact the fixed panel.
  5. Wall substrate must carry the door weight – tile over drywall needs backing or through-bolts. Professional installation recommended.

Frequently Asked Questions

What glass thickness does the 7X42 fit?

The 7X42 is rated for 6 mm (1/4″), 8 mm (5/16″), 10 mm (3/8″) monolithic tempered glass. Always use tempered (safety) glass – never annealed glass.

What is the 7X42 made of?

The 7X42’s hinge body is made of brass. Brass bodies take Zimmor’s full finish program, including PVD coatings for humid bathrooms.

What does the adjustment screw control?

It moves the glass cup relative to the back plate, so the door gaps can be leveled after hanging. Make final adjustments with the door closed, then lock the screws down.

Can I use this hinge on a heavy frameless door?

Yes, within the rated glass range. For heavier leaves, step up to the heavy-duty series or add a third hinge point so the load splits across the leaf.

Do you supply the forged brass glass hinge for wholesale and OEM programs?

Yes – this model is produced in Zimmor’s Foshan factory for wholesale and OEM sourcing: custom finishes, packaging and volume pricing are confirmed per order.
