Standard Duty Beveled Edge Shower Hinge-3030

Designed for 3/8″(10mm) and 1/2″(12mm) Glass
Solid Forged Brass Construction
Dual Precision Wound Stainless Steel Return Springs
Match Stainless Steel Alan Style Clamp Screws
(Allen wrench Included) and Phillips screws
Self-Closing from 25 Degrees

For broader selection guidance, see our complete shower hardware specification guide and PVD coating guide.

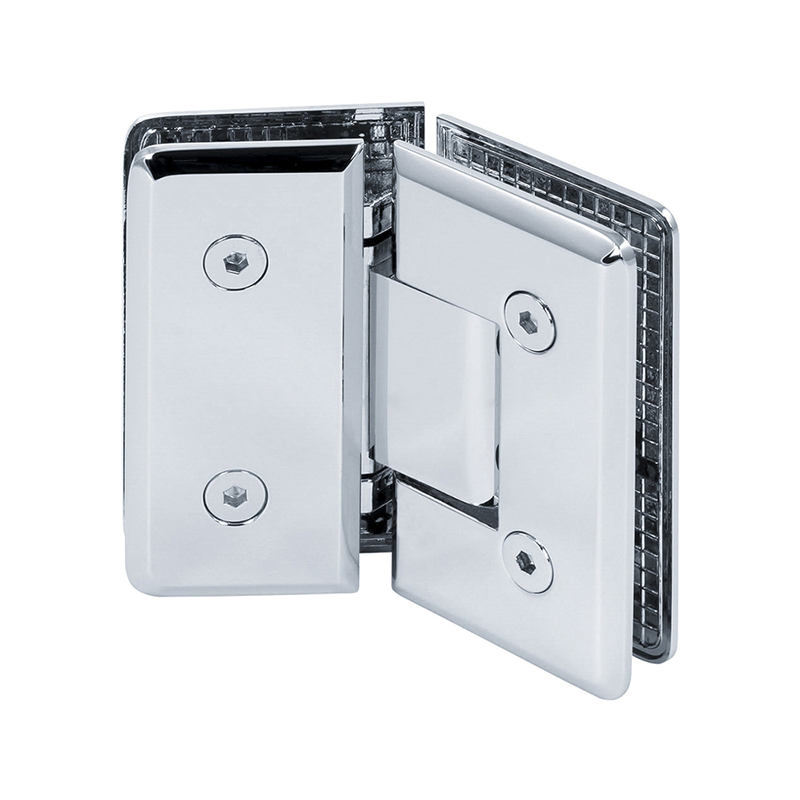

Standard Duty Beveled Edge Shower Hinge (Z-3030) is a standard duty frameless shower door hinge at a 135° panel angle. It is engineered for 10 mm (3/8″), 12 mm (1/2″) monolithic tempered glass. The body is machined from solid forged brass, with stainless return springs and self-closing action from 15°. It is available in Zimmor’s full finish program (PVD included) to match the rest of the enclosure hardware. Wholesale buyers commonly source this model as a standard duty shower hinge. For the wider selection context, see Zimmor’s shower door hinge guide.

Key Features

• Glass compatibility: Fits 10 mm (3/8″), 12 mm (1/2″) monolithic tempered glass
• Material: solid forged brass construction with precision-wound stainless return springs
• Self-closing: spring returns the door from 15° of opening
• Geometry: built for 135° panel angles with a beveled-edge profile
• Rated class: standard duty build for heavier leaves
• Finishes: full Zimmor finish program available, PVD included

Applications

• Frameless pivot shower doors in residential bathrooms
• Hotel and gym wet rooms where doors take daily, heavy use
• Wall-to-glass openings in walk-in showers
• Renovation projects replacing framed doors with frameless glass
• Custom enclosures spec’d by architects and glazing contractors
• Wholesale and OEM sourcing programs – a recurring 10mm glass shower hinge line for distributors

More in this series: Standard Duty Beveled Edge Shower Hinge-3020 · Standard Duty Beveled Edge Shower Hinge-3040

Installation Notes

1. Confirm the door and panel are monolithic (tempered) safety glass and within 10 mm (3/8″), 12 mm (1/2″) range.
2. Mark hole positions on a plumb, solid substrate, drill, and secure with appropriate wall anchors and the hinge mounting screws.
3. Hang the door on the hinge and close it; use the adjustment screws to level the gaps before final tightening.
4. Check swing and self-close action through the full arc; confirm the door does not contact the fixed panel.
5. Wall substrate must carry the door weight – tile over drywall needs backing or through-bolts. Professional installation recommended.

Frequently Asked Questions

What glass thickness does the Z-3030 fit?

The Z-3030 is rated for 10 mm (3/8″), 12 mm (1/2″) monolithic tempered glass. Always use tempered (safety) glass – never annealed glass.

What is the Z-3030 made of?

The Z-3030’s hinge body is made of solid forged brass, with stainless steel return springs inside. Brass bodies take Zimmor’s full finish program, including PVD coatings for humid bathrooms.

Is the Z-3030 self-closing?

Yes. A spring inside the hinge starts closing the door from about 15° of opening, so the door returns to the seal line on its own.

Can the door position be corrected once fitted?

Yes – loosen the adjustment screws, level the door against the fixed panel, and re-tighten. Do the check with the door closed so the gap line reads true.

Do you supply the brass shower hinge for wholesale and OEM programs?

Yes – this model is produced in Zimmor’s Foshan factory for wholesale and OEM sourcing: custom finishes, packaging and volume pricing are confirmed per order.
