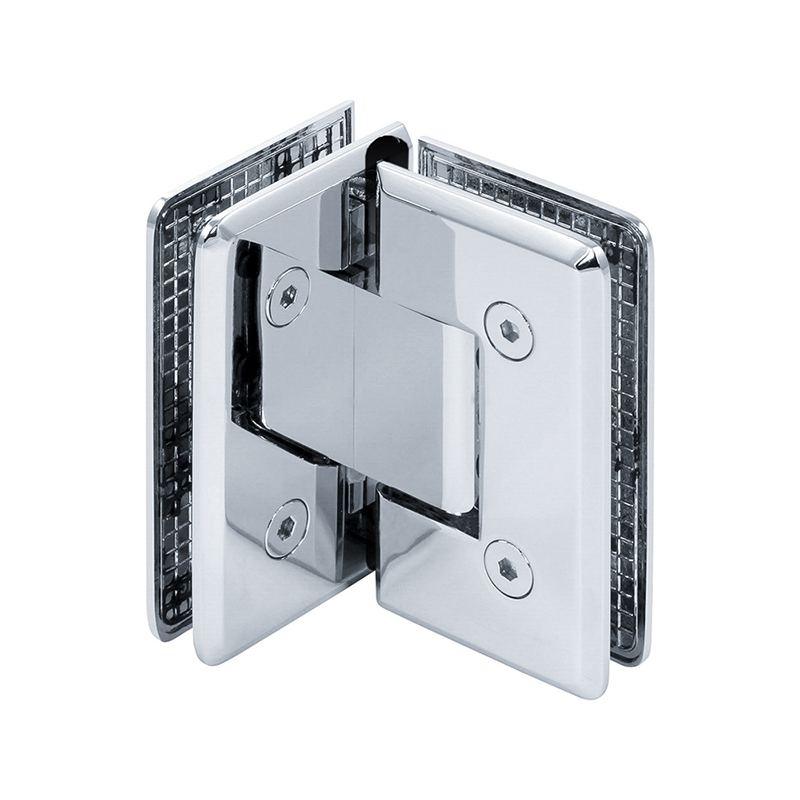

Standard Duty Beveled Edge Shower Hinge-3040

Designed for 3/8″(10mm) and 1/2″(12mm) Glass
Solid Forged Brass Construction
Dual Precision Wound Stainless Steel Return Springs
Match Stainless Steel Alan Style Clamp Screws
(Allen wrench Included) and Phillips screws
Self-Closing from 25 Degrees

For broader selection guidance, see our complete shower hardware specification guide and PVD coating guide.

Standard Duty Beveled Edge Shower Hinge (Z-3040) is a standard duty frameless shower door hinge at a 90° panel angle. It is engineered for 10 mm (3/8″), 12 mm (1/2″) monolithic tempered glass. The body is machined from solid forged brass, with stainless return springs and self-closing action from 15°. It is available in Zimmor’s full finish program (PVD included) to match the rest of the enclosure hardware. Wholesale buyers commonly source this model as a standard duty shower hinge. For the wider selection context, see Zimmor’s shower door hinge guide.

Key Features

• Glass compatibility: Fits 10 mm (3/8″), 12 mm (1/2″) monolithic tempered glass
• Material: solid forged brass construction with precision-wound stainless return springs
• Self-closing: spring returns the door from 15° of opening
• Geometry: built for 90° panel angles with a beveled-edge profile
• Rated class: standard duty build for heavier leaves
• Finishes: full Zimmor finish program available, PVD included

Applications

• Frameless pivot shower doors in residential bathrooms
• Hotel and gym wet rooms where doors take daily, heavy use
• Wall-to-glass openings in walk-in showers
• Renovation projects replacing framed doors with frameless glass
• Custom enclosures spec’d by architects and glazing contractors
• Wholesale and OEM sourcing programs – a recurring 12mm glass shower hinge line for distributors

More in this series: Standard Duty Beveled Edge Shower Hinge-3030 · Standard Duty Beveled Edge Shower Hinge-3020

Installation Notes

1. Confirm the door and panel are monolithic (tempered) safety glass and within 10 mm (3/8″), 12 mm (1/2″) range.
2. Mark hole positions on a plumb, solid substrate, drill, and secure with appropriate wall anchors and the hinge mounting screws.
3. Hang the door on the hinge and close it; use the adjustment screws to level the gaps before final tightening.
4. Check swing and self-close action through the full arc; confirm the door does not contact the fixed panel.
5. Wall substrate must carry the door weight – tile over drywall needs backing or through-bolts. Professional installation recommended.

Frequently Asked Questions

What glass thickness does the Z-3040 fit?

The Z-3040 is rated for 10 mm (3/8″), 12 mm (1/2″) monolithic tempered glass. Always use tempered (safety) glass – never annealed glass.

What is the Z-3040 made of?

The Z-3040’s hinge body is made of solid forged brass, with stainless steel return springs inside. Brass bodies take Zimmor’s full finish program, including PVD coatings for humid bathrooms.

Is the Z-3040 self-closing?

Yes. A spring inside the hinge starts closing the door from about 15° of opening, so the door returns to the seal line on its own.

What does the adjustment screw control?

It moves the glass cup relative to the back plate, so the door gaps can be leveled after hanging. Make final adjustments with the door closed, then lock the screws down.

Do you supply the brass shower hinge for wholesale and OEM programs?

Yes – this model is produced in Zimmor’s Foshan factory for wholesale and OEM sourcing: custom finishes, packaging and volume pricing are confirmed per order.
