Adjustable Heavy Duty Beveled Edge Pivot Shower Hinge-AD381138-40
Adjustable Heavy Duty Beveled Edge Pivot Shower Hinge (Z-AD381138-40) is a shower door hinge for frameless shower doors, made for 10 mm (3/8″), 12 mm (1/2″) tempered glass.
| Use Monolithic Tempered Glass For Glass Thicknesses | |||
| 1/2′′ （12MM） | 3/8′′ （10MM） | 5/16′′ （8MM） | 1/4′′ （6MM） |
| √ | √ | ||
Designed for 3/8″(10mm) and 1/2″(12mm) Tempered Safety Glass
| All Finishes Available | ||||
| Maximum | 3/8″(10mm) Glass | 1/2″(12mm) Glass | ||
| Capacities | Weight | Door Width | Weight | Door Width |
| Using Two Hinges | 110 lbs/50kg | 36″/914mm | 110 lbs/50kg | 36″/914mm |
For broader selection guidance, see our complete shower hardware specification guide and PVD coating guide.
Adjustable Heavy Duty Beveled Edge Pivot Shower Hinge (Z-AD381138-40) is a heavy duty adjustable frameless shower door hinge. It is engineered for 10 mm (3/8″), 12 mm (1/2″) monolithic tempered glass. It is available in Zimmor’s full finish program (PVD included) to match the rest of the enclosure hardware. Wholesale buyers commonly source this model as a heavy duty pivot shower hinge. For the wider selection context, see Zimmor’s shower door hinge guide.
Key Features
- Glass compatibility: Fits 10 mm (3/8″), 12 mm (1/2″) monolithic tempered glass
- Adjustable: door alignment can be corrected after installation
- Rated class: heavy duty build for heavier leaves
- Finishes: full Zimmor finish program available, PVD included
Applications
- Frameless pivot shower doors in residential bathrooms
- Hotel and gym wet rooms where doors take daily, heavy use
- Wall-to-glass openings in walk-in showers
- Renovation projects replacing framed doors with frameless glass
- Custom enclosures spec’d by architects and glazing contractors
- Wholesale and OEM sourcing programs – a recurring frameless shower hinge line for distributors

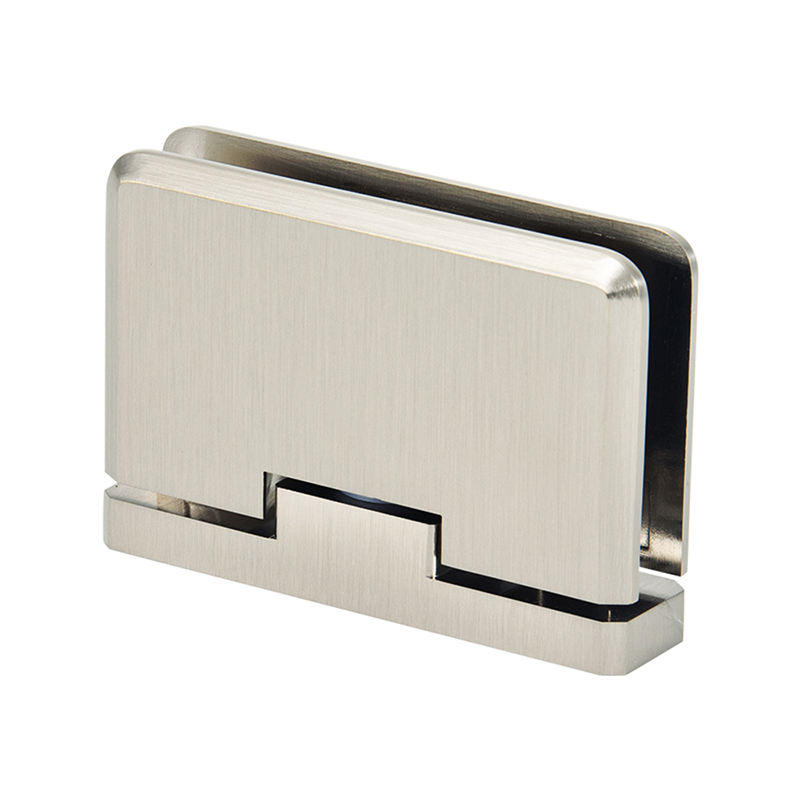

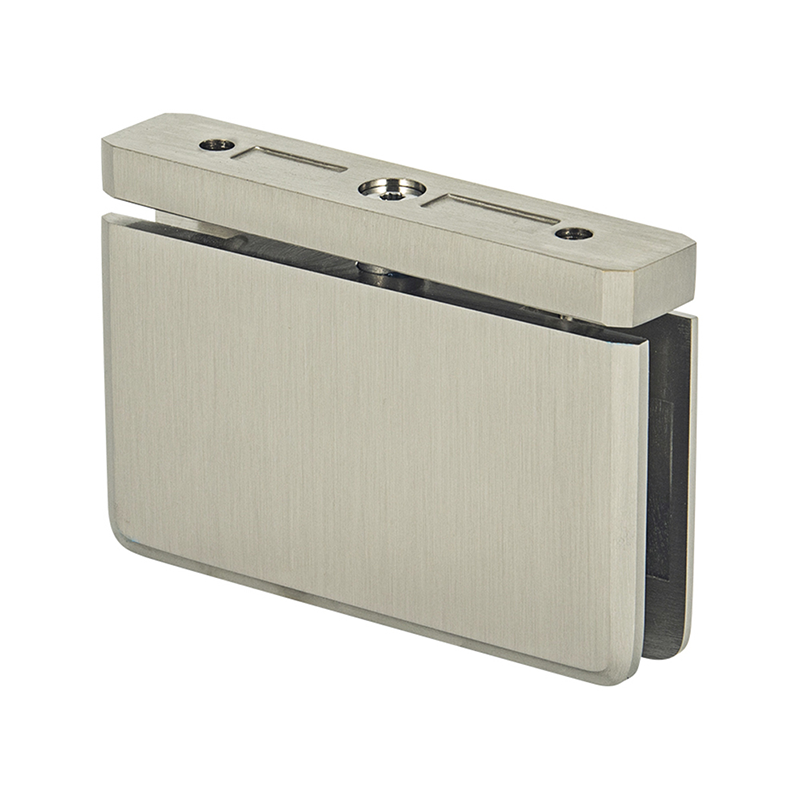

More in this series: Adjustable Heavy Duty Beveled Edge Pivot Shower Hinge-AD381238-40 · Super Heavy Duty Beveled Edge Pivot Shower Hinge-3838
Installation Notes
- Confirm the door is monolithic tempered glass within 10 mm (3/8″), 12 mm (1/2″).
- Mount the pivot hinge to the wall (or floor-side pivot, per the drawing) into a solid, plumb substrate.
- Drop the door onto the pivot spindle and set the vertical with the adjustment screws.
- Swing the door through the full arc and set closing tension so the door settles at the seal line.
- Tile over hollow drywall needs backing plates – the hinge carries the full door weight. Professional installation recommended.
Frequently Asked Questions
What glass thickness does the Z-AD381138-40 fit?
The Z-AD381138-40 is rated for 10 mm (3/8″), 12 mm (1/2″) monolithic tempered glass. Always use tempered (safety) glass – never annealed glass.
What does the adjustment screw control?
It moves the glass cup relative to the back plate, so the door gaps can be leveled after hanging. Make final adjustments with the door closed, then lock the screws down.
Can I use this hinge on a heavy frameless door?
Yes, within the rated glass range. For heavier leaves, step up to the heavy-duty series or add a third hinge point so the load splits across the leaf.
Do you supply the beveled edge pivot hinge for wholesale and OEM programs?
Yes – this model is produced in Zimmor’s Foshan factory for wholesale and OEM sourcing: custom finishes, packaging and volume pricing are confirmed per order.
