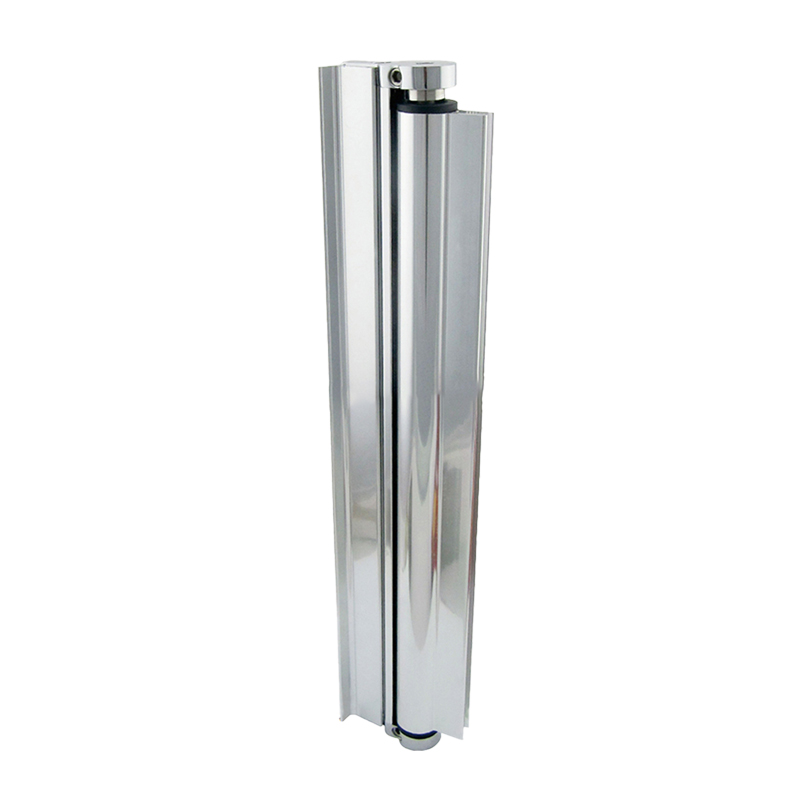

Aluminum Lift Door Shower Hinge-3982
Aluminum Lift Door Shower Hinge (Z-3982) is a shower door hinge for frameless shower doors, built from aluminium alloy.

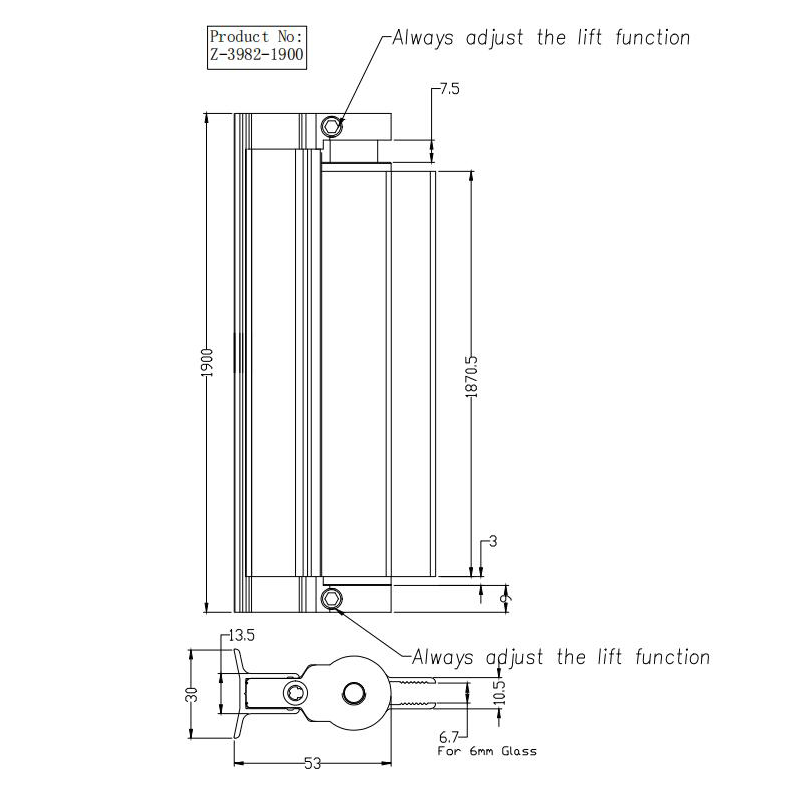

Standard height 1900mm to top edge of wall frames.
6mm Safety glass.
The doors are reversible,you choose whether to hang the door to
the left or theright-hand side.
the glass can be angled.
Can also be ordered in different door sizes.
For broader selection guidance, see our complete shower hardware specification guide and PVD coating guide.
Aluminum Lift Door Shower Hinge (Z-3982) is a frameless shower door hinge. The body is machined from aluminium alloy. Wholesale buyers commonly source this model as a aluminum shower door hinge. For the wider selection context, see Zimmor’s shower door hinge guide.
Key Features
- Material: aluminium alloy construction
- Lift-off action: door can be lifted off for cleaning or remodeling
Applications

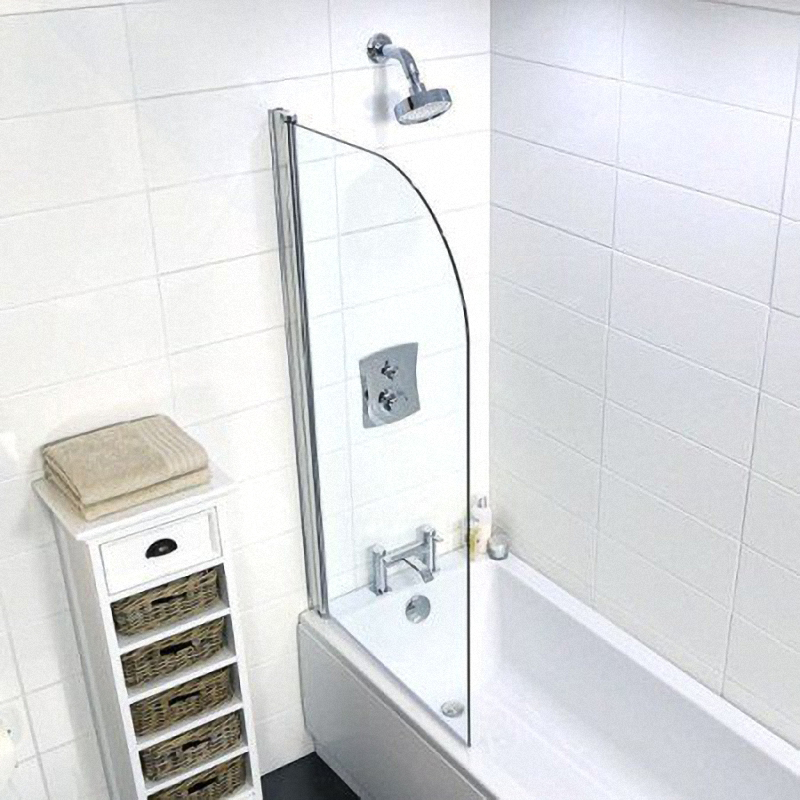

- Frameless pivot shower doors in residential bathrooms
- Hotel and gym wet rooms where doors take daily, heavy use
- Wall-to-glass openings in walk-in showers
- Renovation projects replacing framed doors with frameless glass
- Custom enclosures spec’d by architects and glazing contractors
- Wholesale and OEM sourcing programs – a recurring aluminum shower door line for distributors
More in this series: Aluminum Lift Door Shower Hinge-3986 · Standard Duty Square Corner Pivot Shower Hinge-3820
Installation Notes
- Fix the hinge body to the wall or panel per the drawing; keep the mounting face plumb.
- Fit the lift spindle parts to the door leaf before hanging.
- Lift the door into place and engage the spindle – the door can be lifted off again for cleaning or remodeling.
- Set the resting gap with the height adjustment, then cycle the door several times to confirm smooth lift action.
- Check the wall substrate carries the door weight. Professional installation recommended.
Frequently Asked Questions
What is the Z-3982 made of?
The Z-3982’s hinge body is made of aluminium alloy.
What does the adjustment screw control?
It moves the glass cup relative to the back plate, so the door gaps can be leveled after hanging. Make final adjustments with the door closed, then lock the screws down.
Can I use this hinge on a heavy frameless door?
Yes, within the rated glass range. For heavier leaves, step up to the heavy-duty series or add a third hinge point so the load splits across the leaf.
Do you supply the reversible shower door hinge for wholesale and OEM programs?
Yes – this model is produced in Zimmor’s Foshan factory for wholesale and OEM sourcing: custom finishes, packaging and volume pricing are confirmed per order.
