Aluminum Lift Door Shower Hinge-3986
Item NO:Z-3986
Square Style
Send Inquiry
Please fill out the form below, we will quote you soon.

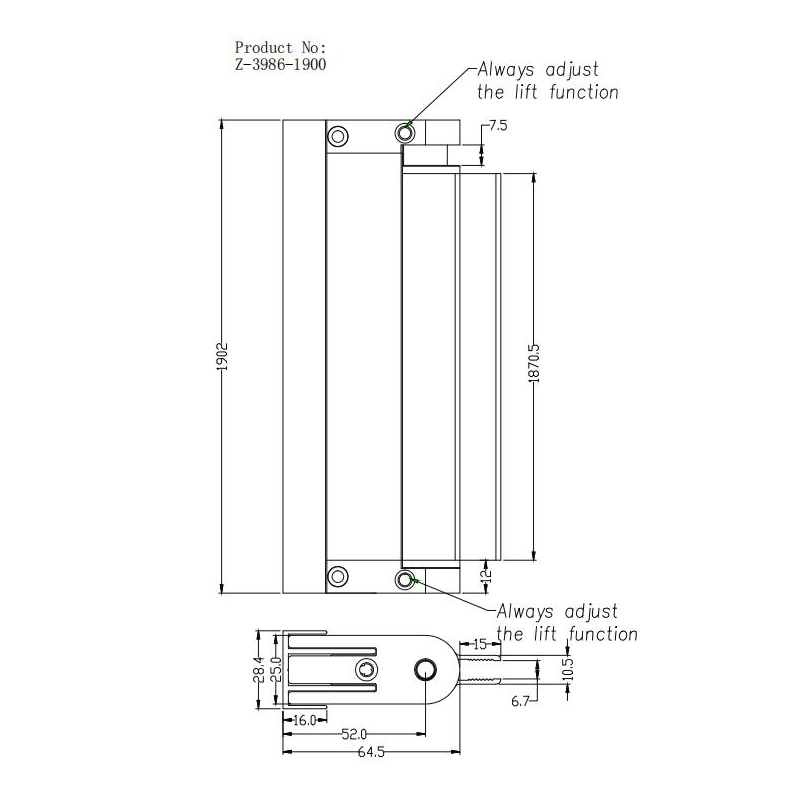

Standard height 1900mm to top edge of wall frames.
6mm Safety glass.
The doors are reversible,you choose whether to hang the door to
the left or theright-hand side.
the glass can be angled.
Can also be ordered in different door sizes.
For broader selection guidance, see our complete shower hardware specification guide and PVD coating guide.
Aluminum Lift Door Shower Hinge (Z-3986) is a frameless shower door hinge. The body is machined from aluminium alloy. For the wider selection context, see Zimmor’s shower door hinge guide.
Key Features
- Material: aluminium alloy construction
- Lift-off action: door can be lifted off for cleaning or remodeling
Applications
- Frameless pivot shower doors in residential bathrooms
- Hotel and gym wet rooms where doors take daily, heavy use
- Wall-to-glass openings in walk-in showers
- Renovation projects replacing framed doors with frameless glass
- Custom enclosures spec’d by architects and glazing contractors
Installation Notes
- Confirm the door and panel are monolithic (tempered) safety glass.
- Fix the wall side first: mark hole positions on a plumb, solid substrate, drill, and secure with appropriate wall anchors and the hinge mounting screws.
- Hang the door on the hinge and close it; use the adjustment screws to level the gaps before final tightening.
- Check swing and self-close action through the full arc; confirm the door does not contact the fixed panel.
- Wall substrate must carry the door weight – tile over drywall needs backing or through-bolts. Professional installation recommended.
Frequently Asked Questions
What is the Z-3986 made of?
The hinge body is made of aluminium alloy.
How is the door adjusted after installation?
Hinges in this series include adjustment screws: close the door, check the vertical gaps, and correct the door position with the adjustment screws before final tightening.
Do you support OEM/ODM and custom finishes?
Yes. Zimmor manufactures shower hardware in Foshan since 1999 with OEM/ODM service: custom dimensions, logos, and surface finishes including PVD are produced to project specification.
Do you supply installation hardware and documentation?
Fixing hardware and dimensional drawings are provided through Zimmor’s sales channel – ask for the drawings when quoting. Installation should be done by a professional glazier: frameless glass is heavy, and tempered panels cannot be drilled after tempering.
