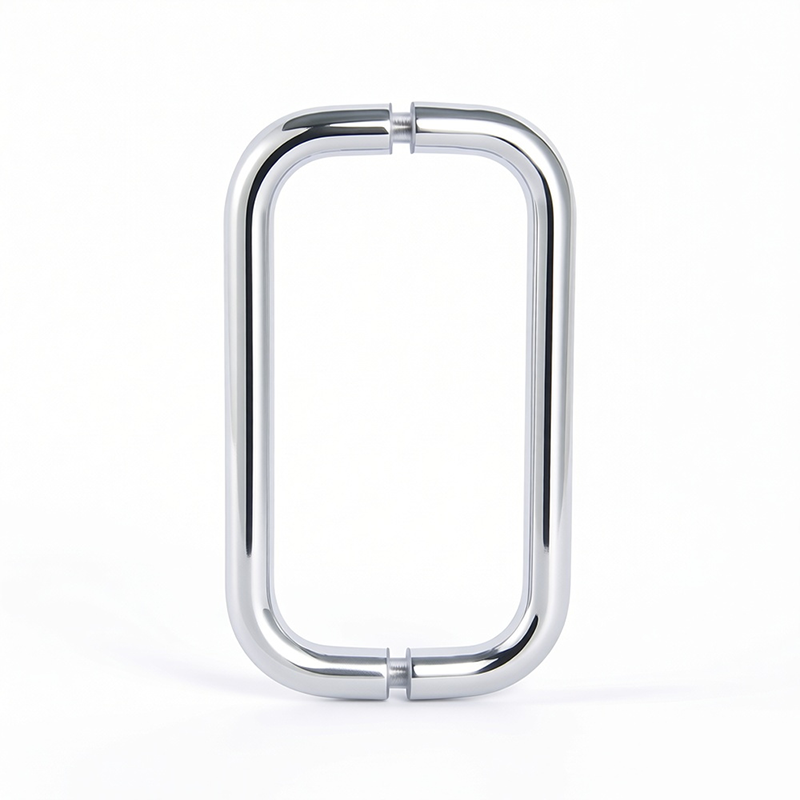

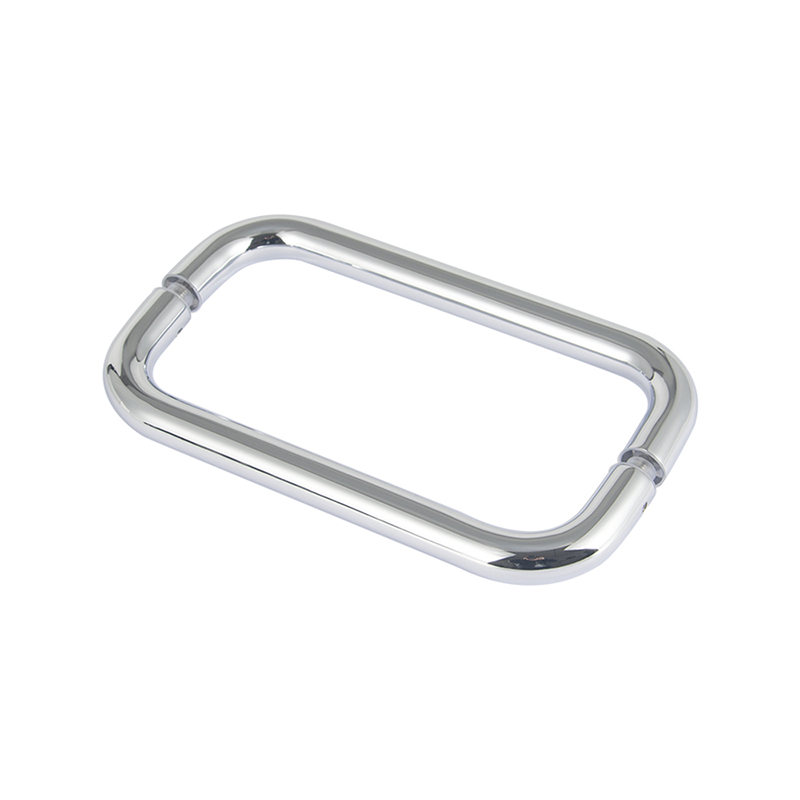

Back To Back Shower Door Handle Without Washers-5311
Back To Back Shower Door Handle Without Washers (Z-5311) is a shower door handle & knob series for frameless glass shower doors, made for 6 mm (1/4″), 8 mm (5/16″), 10 mm (3/8″), 12 mm (1/2″) tempered glass, built from brass.
| Use Monolithic Tempered Glass For Glass Thicknesses | |||
| 1/2′′ （12MM） | 3/8′′ （10MM） | 5/16′′ （8MM） | 1/4′′ （6MM） |
| √ | √ | √ | √ |
Designed for 1/4″(6mm) to 1/2″(12mm)Thick Glass
Brass Construction
3/4″(19mm) Brass Tubing
For broader selection guidance, see our complete shower hardware specification guide and PVD coating guide.
Back To Back Shower Door Handle Without Washers (Z-5311) is a pull handle for frameless glass shower doors. It is a back-to-back fitting: one bolt set clamps both sides of the door at the same time. The grip tube is 19 mm (3/4″) diameter brass tubing, sized for a comfortable two-finger pull. It mounts on 6 mm (1/4″), 8 mm (5/16″), 10 mm (3/8″), 12 mm (1/2″) tempered glass with through-glass fixings. Wholesale buyers commonly source this model as a shower door pull handle. For the wider selection context, see Zimmor’s shower handle & knob guide.
Key Features
- Glass compatibility: Mounts on 6 mm (1/4″), 8 mm (5/16″), 10 mm (3/8″), 12 mm (1/2″) monolithic tempered glass
- Material: brass construction
- Tubing: 19 mm (3/4″) diameter brass tube profile
- Back-to-back mounting: single bolt set clamps both glass faces
- Supplied without washers (order washers separately if the mating set needs them)
Applications
- Pull handles for pivot and hinged frameless shower doors
- Grips for sliding shower door leaves
- Back-to-back pull pairs on frameless glass doors
- Hotel and apartment bathroom programs specified in bulk
- Office glass partition doors
- Wholesale and OEM sourcing programs – a recurring frameless shower handle line for distributors
More in this series: Back To Back Shower Door Handle Without Washers-5307 · Back To Back Shower Door Handle Without Washers-5313
Installation Notes
- Drill the through-holes in the glass panel to the handle’s hole pattern before tempering – do not drill tempered glass.
- Insert the mounting bolts through the glass and thread them into both handle halves.
- Tighten both sides alternately so the knob stays centered on the hole pair.
- Check the grip is solid with no racking between the two halves.
- Re-torque after the first week of use if needed.
Frequently Asked Questions
What glass thickness does the Z-5311 mount on?
It mounts on 6 mm (1/4″), 8 mm (5/16″), 10 mm (3/8″), 12 mm (1/2″) tempered glass. The through-glass holes are drilled before tempering, so confirm thickness and hole pattern with your fabricator early.
What is the Z-5311 made of?
The Z-5311 is built from brass. Solid metal construction matters on glass hardware – thin stamped parts creep loose under door loads.
What does back-to-back mean on shower door handles?
A back-to-back handle is one assembly: a tube passes through the glass and bolts clamp both sides, so you get a pull outside and a matching grip inside from a single fixing set.
Does the handle need maintenance?
Retighten the set screws after the first week of use and wipe dry after showers. Plated brass tube holds its finish well; avoid abrasive creams.
Do you supply the brass shower handle for wholesale and OEM programs?
Yes – this model is produced in Zimmor’s Foshan factory for wholesale and OEM sourcing: custom finishes, packaging and volume pricing are confirmed per order.
