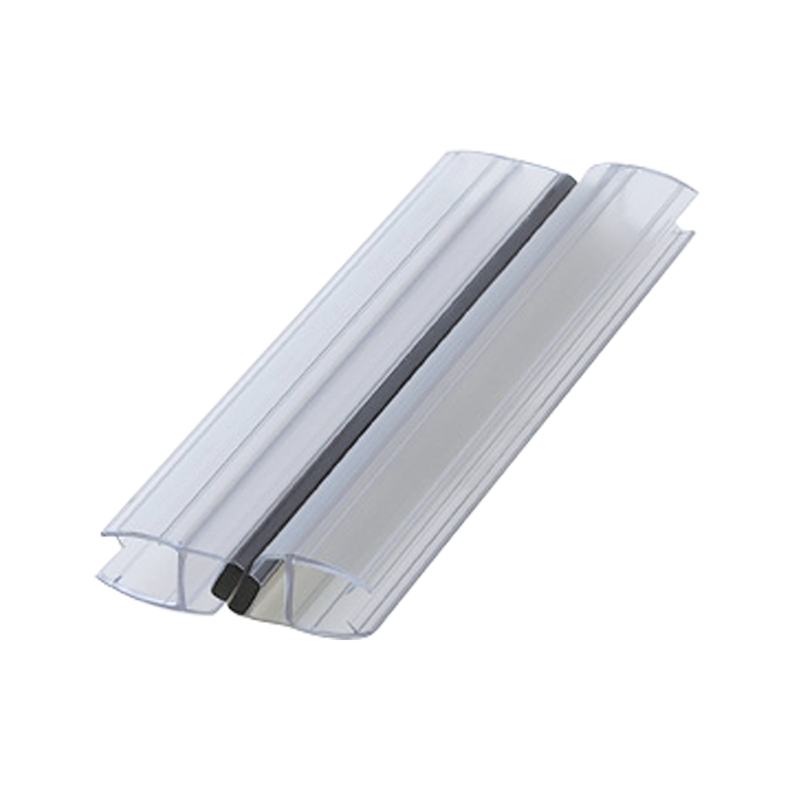

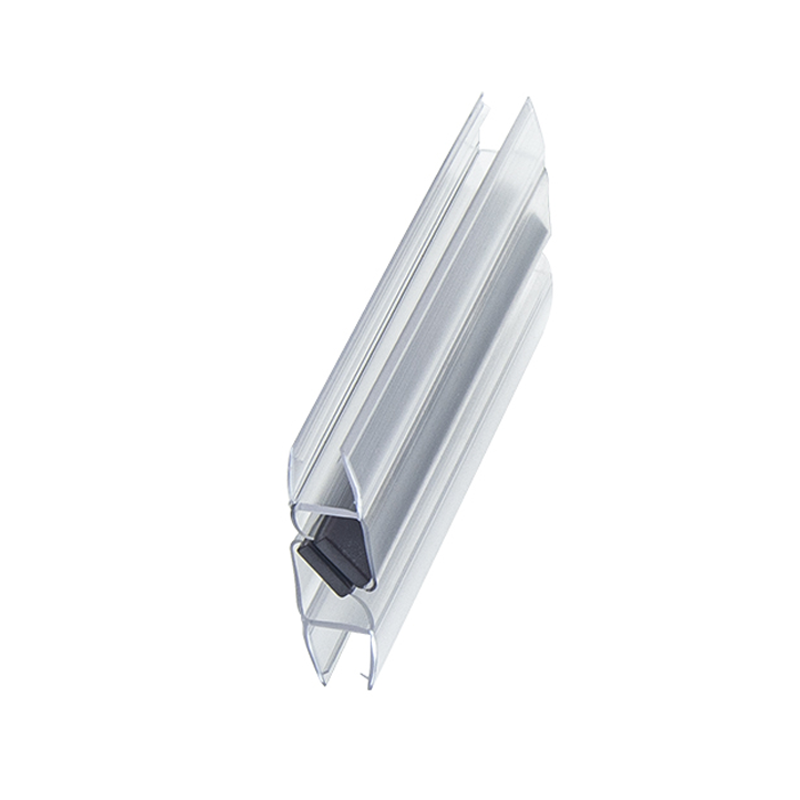

PVC Seal With Magnetic Stripe-5711

PVC Seal With Magnetic Stripe (5711) is a shower door seal that keeps water inside the enclosure, built from PVC.

✓ IN STOCK
Get A Quote

Send Inquiry

Please fill out the form below, we will quote you soon.

SHARE

180° Glass to Glass
Magnetic Stripe Both Side

Material:Polyvinyl Chloride (PVC)

The Pvc Seal With Magnetic Stripe 5711 is a PVC shower door seal from the gasket family that keeps water inside the enclosure: profiles extruded to match glass thickness and door geometry, translucent material that disappears against clear glass, and push-on installation that requires no adhesive — the detail that makes replacement a two-minute job instead of a service call.

Specification Standard Selection note
Material PVC, clear Magnetic variants for closure
Glass fit 6–12 mm profiles Measure glass, not the drawing
Install Push-on, no adhesive Trim with scissors to length
Position Bottom sweep, side jamb, strike One profile per position

The full seal family — PVC, PC and magnetic profiles by door position — is specified in the shower door seals specification guide. Reference: shower construction.

Key Features

  • Material: PVC construction
  • Geometry: built for 180° panel angles

Applications

  • Bottom sweep on pivot and hinged shower doors (glass-to-floor line)
  • Meeting jamb between door and fixed panel
  • Post-renovation water-leak fixes without replacing the door
  • Magnetic closure variants for doors that need a positive pull-shut
  • Replacement seals for aged or hardened gaskets on existing enclosures
  • Wholesale and OEM sourcing programs – a recurring shower door gasket line for distributors

More in this series: High Clear PC Seal-P912WS · High Clear PC Seal-P380HJ

Installation Notes

  1. Clean the glass edge before fitting – the magnetic stripe needs full contact.
  2. Cut the profile to length with scissors against the measured glass edge.
  3. Push the seal on by hand from one end; no adhesive is required.
  4. Fit the mating magnetic half on the fixed panel and close the door to confirm the pull-shut action.

Frequently Asked Questions

What material is the 5711 seal?

It is extruded from PVC. The material stays clear against glass, resists hardening in hot wet environments, and can be trimmed with scissors.

Where exactly is this seal installed?

One profile per position: bottom sweep on the glass-to-floor line, side jamb where the door meets the fixed panel, and strike side at the closing edge. Check the profile drawing for the position this model is extruded for.

How long does a shower door seal last?

Seals age with heat, UV and cleaning chemicals. When the fin stops wiping water cleanly, swap the profile – push-on fitting makes that a two-minute job.

Do you supply the magnetic shower door seal for wholesale and OEM programs?

Yes – this model is produced in Zimmor’s Foshan factory for wholesale and OEM sourcing: custom finishes, packaging and volume pricing are confirmed per order.

Need help selecting? Read the shower door bottom sweep guide before ordering this model, or compare the full seal and header range.
