Round Tubing Handle And Towel Bar Combo With Washers-5342
Round Tubing Handle And Towel Bar Combo With Washers (Z-5342) is a shower door handle & knob series for frameless glass shower doors, made for 6 mm (1/4″), 8 mm (5/16″), 10 mm (3/8″), 12 mm (1/2″) tempered glass, built from brass.
| Use Monolithic Tempered Glass For Glass Thicknesses | |||
| 1/2′′ （12MM） | 3/8′′ （10MM） | 5/16′′ （8MM） | 1/4′′ （6MM） |
| √ | √ | √ | √ |
Designed for 1/4″(6mm) to 1/2″(12mm) Glass
Brass Construction

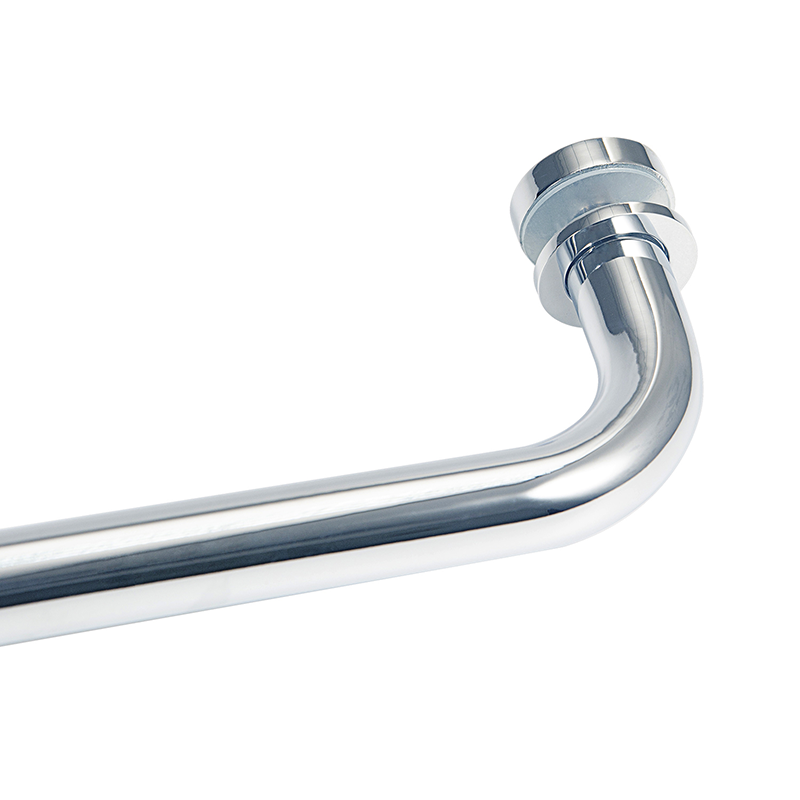

3/4″(19mm) Diameter Brass Tubing
For broader selection guidance, see our complete shower hardware specification guide and PVD coating guide.

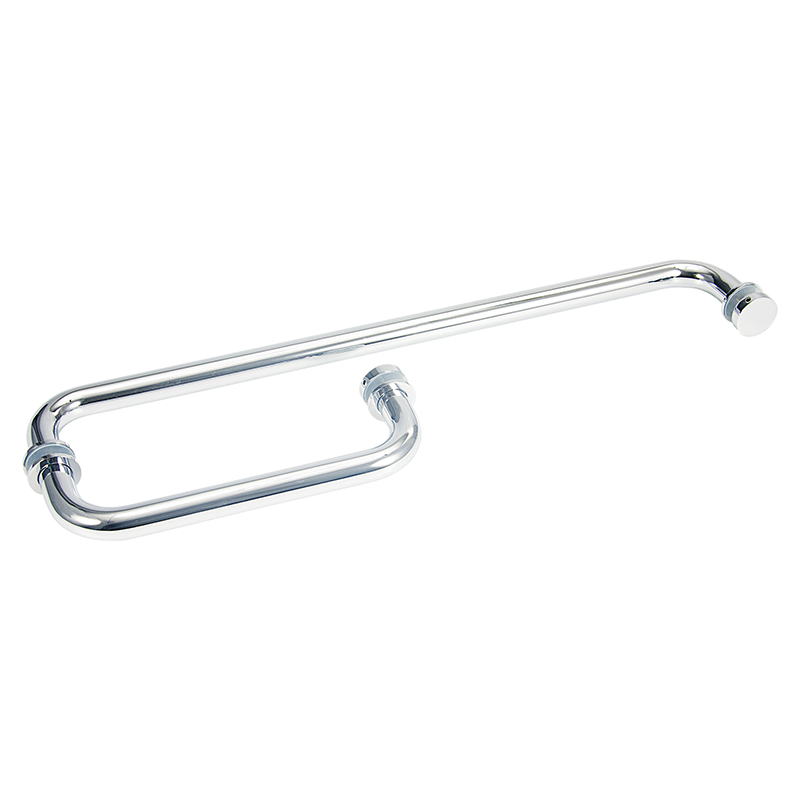

Round Tubing Handle And Towel Bar Combo With Washers (Z-5342) is a towel bar and handle combo for frameless glass shower doors. The grip tube is 19 mm (3/4″) diameter brass tubing, sized for a comfortable two-finger pull. It mounts on 6 mm (1/4″), 8 mm (5/16″), 10 mm (3/8″), 12 mm (1/2″) tempered glass with through-glass fixings. Wholesale buyers commonly source this model as a shower handle towel bar combo. For the wider selection context, see Zimmor’s shower handle & knob guide.
Key Features
- Glass compatibility: Mounts on 6 mm (1/4″), 8 mm (5/16″), 10 mm (3/8″), 12 mm (1/2″) monolithic tempered glass
- Material: brass construction
- Tubing: 19 mm (3/4″) diameter brass tube profile
- Supplied with washers
Applications
- Pull handles for pivot and hinged frameless shower doors
- Grips for sliding shower door leaves
- Towel bars on shower doors – double duty in small bathrooms
- Hotel and apartment bathroom programs specified in bulk
- Office glass partition doors
- Wholesale and OEM sourcing programs – a recurring brass shower handle line for distributors
More in this series: Round Tubing Towel Bar With Washers-5320-18 · Round Tubing Towel Bar With Washers and Knob-5322-18
Installation Notes
- Drill the through-holes in the glass panel to the tube diameter spec before tempering – do not drill tempered glass.
- Insert the mounting bolts through the glass and thread them into both tube ends.
- Tighten evenly until the washers seat against the glass.
- Hang a wet towel at mid-span and check the tube does not rotate or slide.
- Re-torque the set screws after the first week of use if needed.
Frequently Asked Questions
What glass thickness does the Z-5342 mount on?
It mounts on 6 mm (1/4″), 8 mm (5/16″), 10 mm (3/8″), 12 mm (1/2″) tempered glass. The through-glass holes are drilled before tempering, so confirm thickness and hole pattern with your fabricator early.
What is the Z-5342 made of?
The Z-5342 is built from brass. Solid metal construction matters on glass hardware – thin stamped parts creep loose under door loads.
Can this handle be used on a sliding shower door?
Yes – the same tube-and-bolt construction is used on sliding leaves as a side grip. For main pull duty on pivot doors, match it with the back-to-back version.

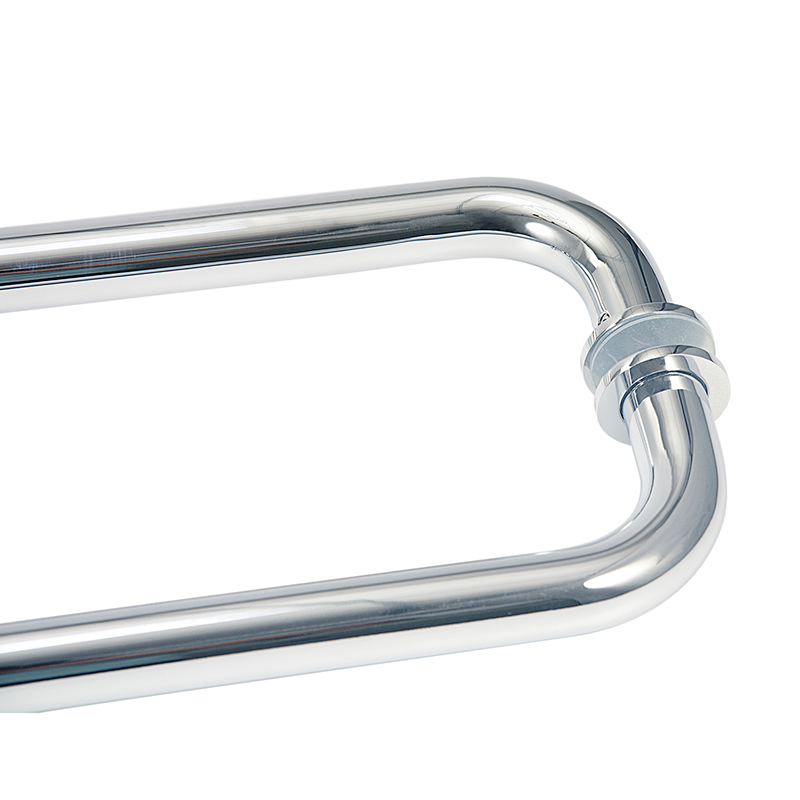

What do the washers do on this handle?
The washers sit between the tube and the glass, spreading the bolt load and letting the tube turn slightly without grinding the tempered surface.
Do you supply the back to back shower handle for wholesale and OEM programs?
Yes – this model is produced in Zimmor’s Foshan factory for wholesale and OEM sourcing: custom finishes, packaging and volume pricing are confirmed per order.
