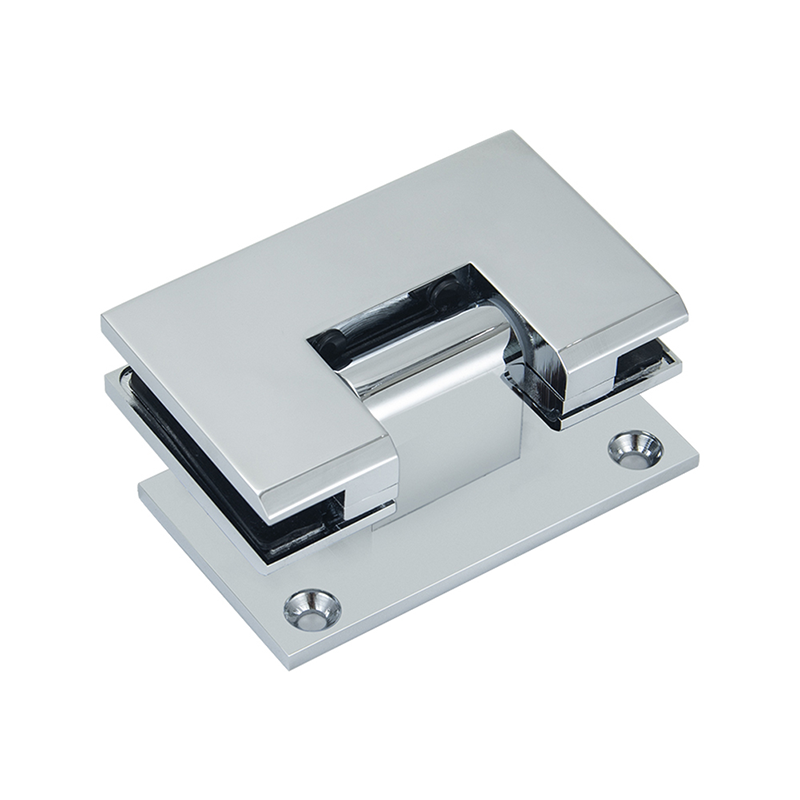

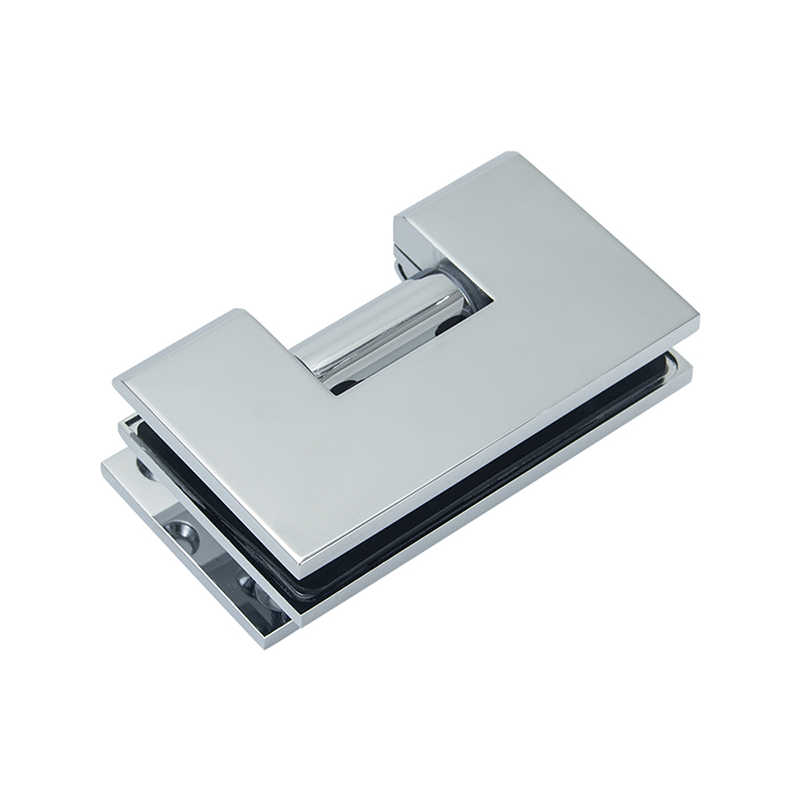

Square Corner Adjustable Shower Hinge-9411
Square Corner Adjustable Shower Hinge (9411) is a shower door hinge for frameless shower doors, made for 10 mm (3/8″), 12 mm (1/2″) tempered glass, built from solid forged brass.
Send Inquiry
Please fill out the form below, we will quote you soon.
| Use Monolithic Tempered Glass For Glass Thicknesses | |||
| 1/2′′ (12MM) | 3/8′′ (10MM) | 5/16′′ (8MM) | 1/4′′ (6MM) |
| √ | √ | ||
Designed for 3/8″(10mm) and 1/2″(12mm) Glass
Solid Forged Brass Construction
Dual Precision Wound Stainless Steel Return Springs
Match Stainless Steel Alan Style Clamp Screws
(Allen wrench Included) and Phillips screws
| All Finishes Available | ||||
| Maximum | 3/8″(10mm) Glass | 1/2″(12mm) Glass | ||
| Capacities | Weight | Door Width | Weight | Door Width |
| Using Two Hinges | 80 lbs/36kg | 28″/711mm | 80 lbs/36kg | 28″/711mm |
| Using Three Hinges | 120 lbs/54kg | 32″/813mm | 120 lbs/54kg | 32″/813mm |
For broader selection guidance, see our complete shower hardware specification guide and PVD coating guide.
Square Corner Adjustable Shower Hinge (9411) is a adjustable frameless shower door hinge at a 90° panel angle. It is engineered for 10 mm (3/8″), 12 mm (1/2″) monolithic tempered glass. The body is machined from solid forged brass. It is available in Zimmor’s full finish program (PVD included) to match the rest of the enclosure hardware. Wholesale buyers commonly source this model as a square corner shower hinge. For the wider selection context, see Zimmor’s shower door hinge guide.
Key Features
- Glass compatibility: Fits 10 mm (3/8″), 12 mm (1/2″) monolithic tempered glass
- Material: solid forged brass construction
- Adjustable: door alignment can be corrected after installation
- Geometry: built for 90° panel angles with a square-corner profile
- Finishes: full Zimmor finish program available, PVD included
Applications
- Frameless pivot shower doors in residential bathrooms
- Hotel and gym wet rooms where doors take daily, heavy use
- Wall-to-glass openings in walk-in showers
- Renovation projects replacing framed doors with frameless glass
- Custom enclosures spec’d by architects and glazing contractors
- Wholesale and OEM sourcing programs – a recurring shower door hinge line for distributors
More in this series: Flat Square Corner Adjustable Shower Hinge With Cover-7840 · Square Corner Adjustable Shower Hinge-9412
Installation Notes
- Confirm the door and panel are monolithic (tempered) safety glass and within 10 mm (3/8″), 12 mm (1/2″) range.
- Mark hole positions on a plumb, solid substrate, drill, and secure with appropriate wall anchors and the hinge mounting screws.
- Hang the door on the hinge and close it; use the adjustment screws to level the gaps before final tightening.
- Check swing and self-close action through the full arc; confirm the door does not contact the fixed panel.
- Wall substrate must carry the door weight – tile over drywall needs backing or through-bolts. Professional installation recommended.
Frequently Asked Questions
What glass thickness does the 9411 fit?
The 9411 is rated for 10 mm (3/8″), 12 mm (1/2″) monolithic tempered glass. Always use tempered (safety) glass – never annealed glass.
What is the 9411 made of?
The 9411’s hinge body is made of solid forged brass. Brass bodies take Zimmor’s full finish program, including PVD coatings for humid bathrooms.
What does the adjustment screw control?
It moves the glass cup relative to the back plate, so the door gaps can be leveled after hanging. Make final adjustments with the door closed, then lock the screws down.
Can I use this hinge on a heavy frameless door?
Yes, within the rated glass range. For heavier leaves, step up to the heavy-duty series or add a third hinge point so the load splits across the leaf.
Do you supply the glass to glass shower hinge for wholesale and OEM programs?
Yes – this model is produced in Zimmor’s Foshan factory for wholesale and OEM sourcing: custom finishes, packaging and volume pricing are confirmed per order.
