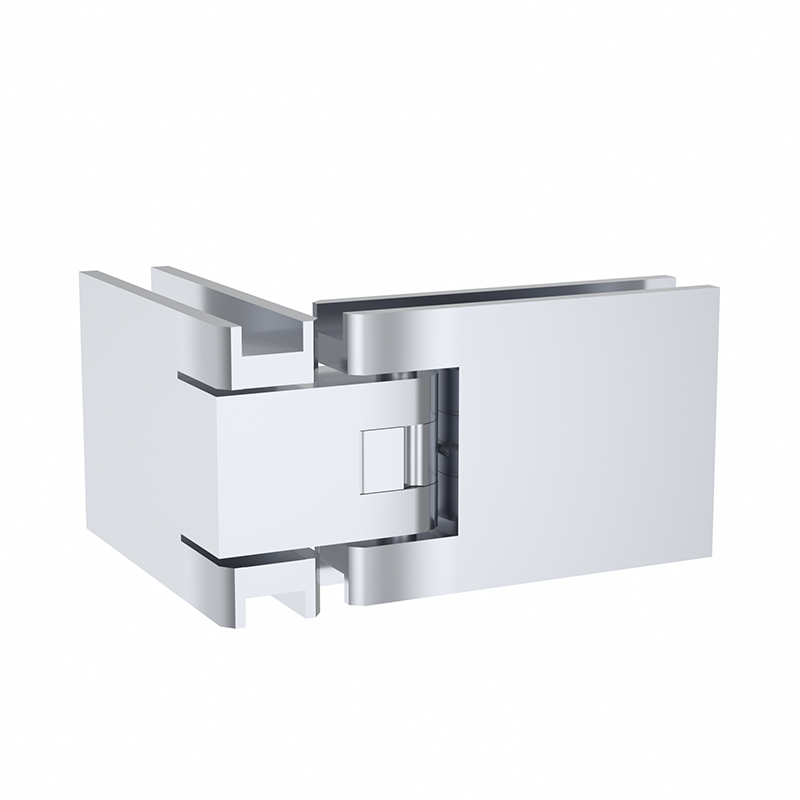

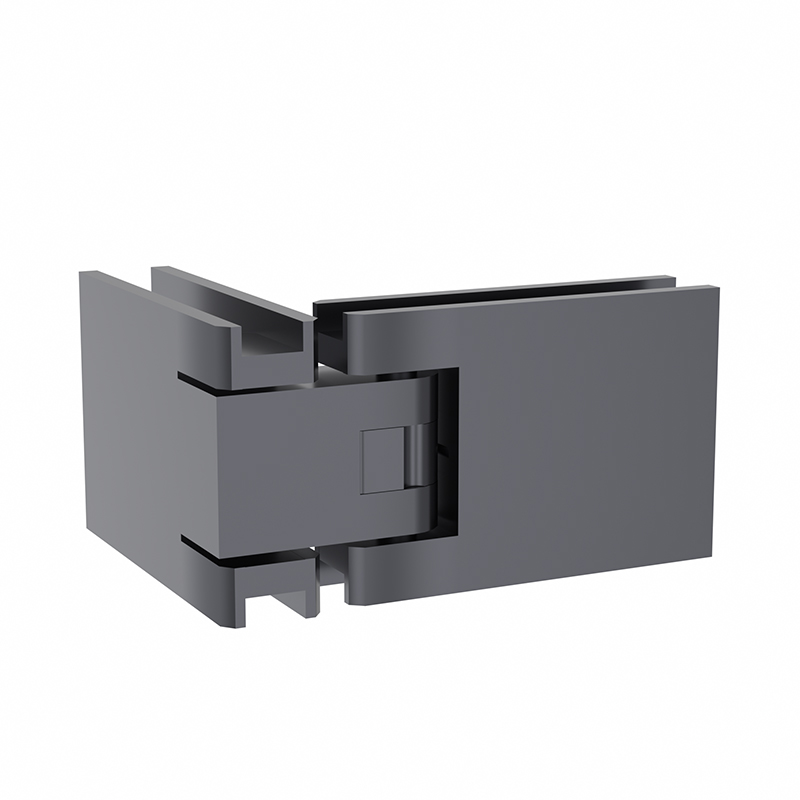

Adjustable Rectangular Flat Shower Hinge-8340
Adjustable Rectangular Flat Shower Hinge (Z-8340) is a shower door hinge for frameless shower doors, made for 6 mm (1/4″), 8 mm (5/16″), 10 mm (3/8″) tempered glass, built from solid forged brass.
| Use Monolithic Tempered Glass For Glass Thicknesses | |||
| 1/2′′ （12MM） | 3/8′′ （10MM） | 5/16′′ （8MM） | 1/4′′ （6MM） |
| √ | √ | √ | |
Designed for 1/4″(6mm) to 3/8″(10mm) Tempered safety Glass
Solid Forged Brass Construction
The angle of the Hinge can be Adjusted
Wall Mount Both Side Back Plate
For broader selection guidance, see our complete shower hardware specification guide and PVD coating guide.
Adjustable Rectangular Flat Shower Hinge (Z-8340) is a adjustable frameless shower door hinge at a 90° panel angle. It is engineered for 6 mm (1/4″), 8 mm (5/16″), 10 mm (3/8″) monolithic tempered glass. The body is machined from solid forged brass. Wholesale buyers commonly source this model as a adjustable shower hinge. For the wider selection context, see Zimmor’s shower door hinge guide.
Key Features
- Glass compatibility: Fits 6 mm (1/4″), 8 mm (5/16″), 10 mm (3/8″) monolithic tempered glass
- Material: solid forged brass construction
- Adjustable: door alignment can be corrected after installation
- Geometry: built for 90° panel angles
Applications
- Frameless pivot shower doors in residential bathrooms
- Hotel and gym wet rooms where doors take daily, heavy use
- Wall-to-glass openings in walk-in showers
- Renovation projects replacing framed doors with frameless glass
- Custom enclosures spec’d by architects and glazing contractors
- Wholesale and OEM sourcing programs – a recurring wall mount shower hinge line for distributors
More in this series: Adjustable Rectangular Flat Shower Hinge-8330 · Adjustable Rectangular Flat Shower Hinge-8320
Installation Notes
- Confirm the door and panel are monolithic (tempered) safety glass and within 6 mm (1/4″), 8 mm (5/16″), 10 mm (3/8″) range.
- Mark hole positions on a plumb, solid substrate, drill, and secure with appropriate wall anchors and the hinge mounting screws.
- Hang the door on the hinge and close it; use the adjustment screws to level the gaps before final tightening.
- Check swing and self-close action through the full arc; confirm the door does not contact the fixed panel.
- Wall substrate must carry the door weight – tile over drywall needs backing or through-bolts. Professional installation recommended.
Frequently Asked Questions
What glass thickness does the Z-8340 fit?
The Z-8340 is rated for 6 mm (1/4″), 8 mm (5/16″), 10 mm (3/8″) monolithic tempered glass. Always use tempered (safety) glass – never annealed glass.
What is the Z-8340 made of?
The Z-8340’s hinge body is made of solid forged brass. Brass bodies take Zimmor’s full finish program, including PVD coatings for humid bathrooms.
Can the door position be corrected once fitted?
Yes – loosen the adjustment screws, level the door against the fixed panel, and re-tighten. Do the check with the door closed so the gap line reads true.
Does the finish need maintenance in a wet bathroom?
Wipe the fittings down after heavy use and avoid abrasive cleaners. PVD finishes hold up best against constant humidity and limescale.
Do you supply the rectangular shower hinge for wholesale and OEM programs?
Yes – this model is produced in Zimmor’s Foshan factory for wholesale and OEM sourcing: custom finishes, packaging and volume pricing are confirmed per order.
