A round knob, a back-to-back pull, and a towel bar combo need different checks. Our shower door handles and knobs include these different configurations.
This guide explains how to narrow your options. It tells you what information to gather. It also shows which installation steps need confirmation for your specific model.
Should You Repair or Replace the Handle?
A loose handle does not automatically mean the complete assembly needs replacing. Ask the installer to distinguish a fastening problem from missing components or damage. If a required gasket or sleeve is missing, obtain the correct part rather than compensating with extra tightening.
Send photographs of both sides and any damaged components to the supplier. Ask whether the appropriate next step is a repair, a replacement component or a complete assembly.
Identify the Existing Handle Before Choosing a Replacement
Start with the mounting configuration. Shape helps identify the product, but it does not establish compatibility. Our frameless shower door handle types guide distinguishes knobs, bar handles and other profiles; use those descriptions to identify the general form before comparing specific models.
Through-Glass Knobs

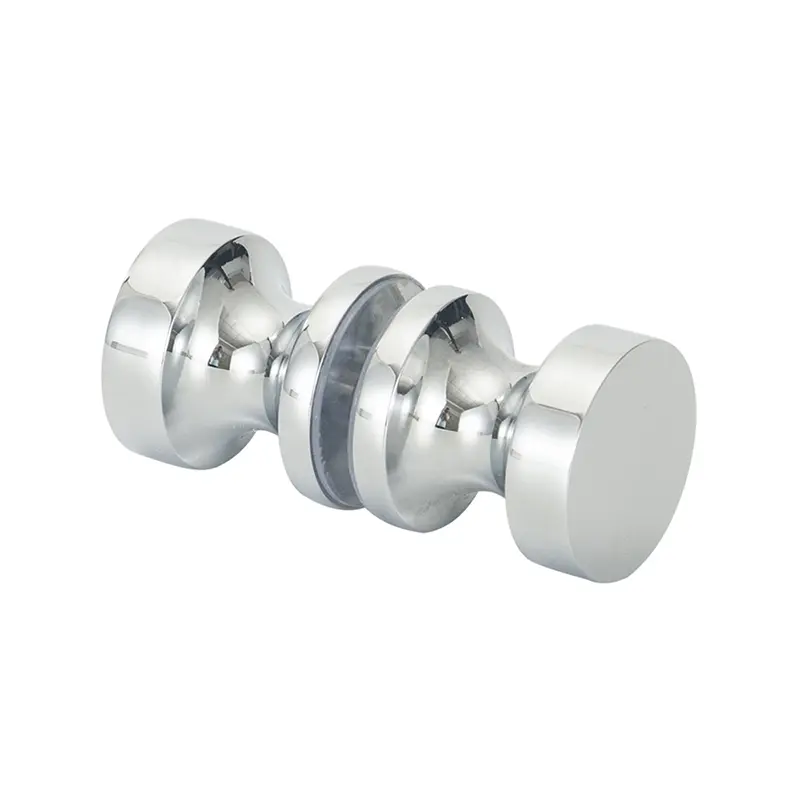

The Z-5102 glass shower door knob is described as a round-style, through-glass fitting. Its listing includes back-to-back and single-sided options.
For a replacement knob, identify the configuration on both faces of the glass. Record the existing hole diameter and glass thickness, then confirm the required fixing arrangement for the selected version. A similar-looking knob is not enough to establish a match.
Back-to-Back Pull Handles

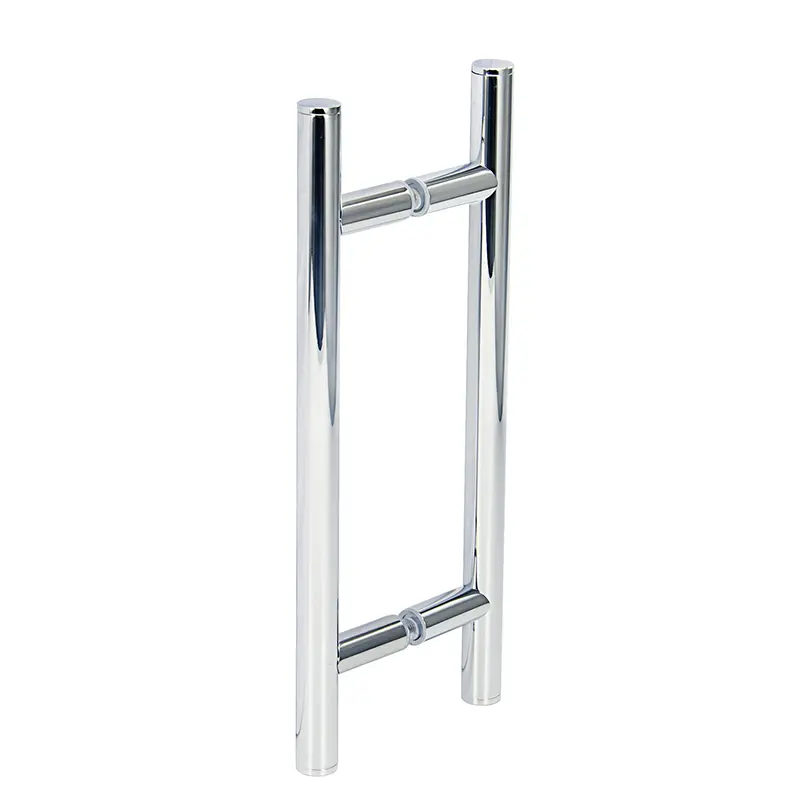

Back-to-back pulls have a grip on each side of the glass. The Z-5313 handle is one example in our range.
Record the mounting-hole pattern rather than relying on the handle’s overall length. Also photograph the mounting bases and any visible fasteners. These details help distinguish products that look similar from the front.
Towel Bar and Handle Combinations

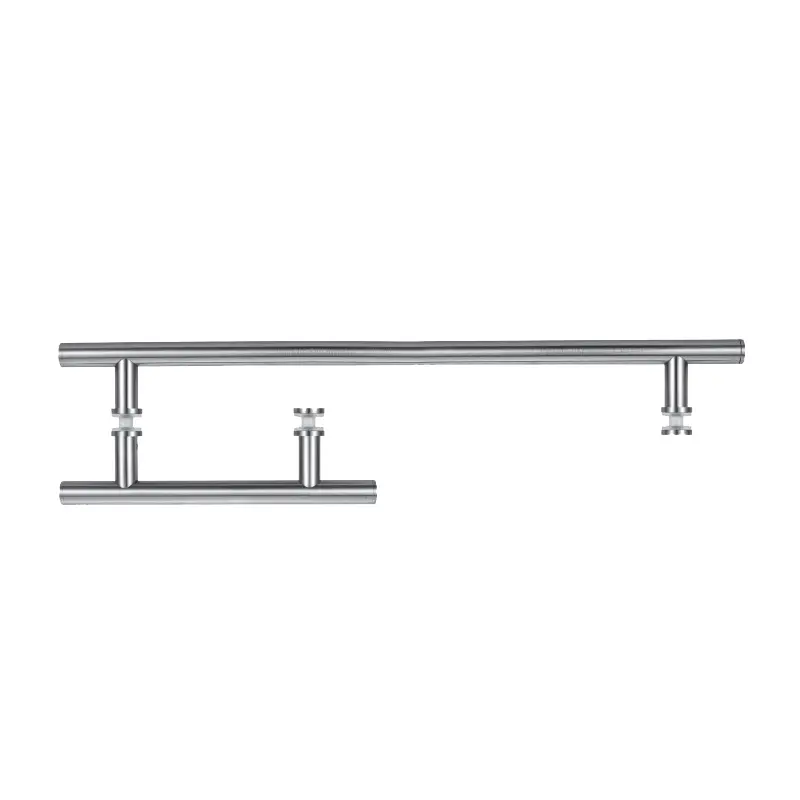

A combination needs more than a single handle measurement. The Z-5348 towel bar and handle combo lists a towel bar center-to-center range of 12 to 30 inches and a 6- or 8-inch handle.
Those are separate dimensions within the assembly. Specify which part you measured, and record every fixing position before selecting a replacement combination.
Which Measurements Matter for Shower Door Handle Replacement?
Make a dimension record before comparing products. It should distinguish the mounting points from the outside dimensions and include the glass and surrounding space. Keep measurements in a consistent unit, or label inches and millimeters clearly rather than mixing unmarked figures.
Hole layout and center-to-center spacing. For a two-point pull, record the distance between the centers of its mounting holes. For a combination fitting, record the complete layout. Do not substitute the grip’s end-to-end length for a mounting dimension.
Hole diameter and glass thickness. Include both in the request for confirmation. Matching the distance between holes does not, by itself, establish that the fixing components suit the door.
Projection and clearance. Note the space between the grip and glass, plus nearby walls, panels and fittings. Our hotel and project handle guide also identifies glass thickness, mounting method and available clearance as selection considerations.
If the old handle is missing, send photographs of the exposed mounting area with your measurements. Ask for a drawing comparison instead of selecting from a product photograph alone.
What Do the Zimmor Product Listings Tell You?
Use a model number to locate the relevant product, then confirm its exact configuration. The examples below show why one general description such as “glass shower handle” cannot replace a model-specific check.
| Model | Published product information | What to confirm for a replacement |
|---|---|---|
| Z-5102 | Round-style through-glass knob; back-to-back and single-sided options | Required version, hole diameter, glass thickness and fixing arrangement |
| Z-5313 | Back-to-back handle; listed center-to-center options from 6 to 30 inches | Exact ordered spacing, mounting details and assembly components |
| Z-5348 | Towel bar and handle combination; separate bar and handle dimensions | Both dimensions, complete hole layout and the selected configuration |
A listed range describes available options; it is not proof that one handle adjusts across that range. Request the drawing for the configuration being quoted.
Product names also need careful reading. Do not use a “with washers” or “without washers” label alone to decide which protective components an installation requires. Confirm the assembly details rather than interpreting the name as a fitting instruction.
How Should You Approach the Replacement?
Confirm the new assembly and fixing instructions before removing the old one. If the fasteners cannot be identified, ask the supplier or an installer rather than forcing the handle apart.
For the applicable combination, our installation guide covers cleaning the mounting area, positioning isolation components, alignment and fastening. It is not a universal removal procedure.
Keep specified gaskets and sleeves correctly positioned, align before final tightening and follow the model’s tool requirements. Do not drill or modify already-tempered glass to fit different hardware. If the glass appears damaged or the fitting will not seat correctly, stop and have it assessed.
Why Might the New Handle Fail to Fit?
Before trying another product, compare the supplied assembly with the information used to order it. A useful troubleshooting request should show what differs, rather than simply reporting that the handle does not fit.
- Mounting points do not align: recheck the recorded layout against the ordered drawing. Was the measurement taken between hole centers or between the ends of the handle?
- A combination does not match: check the bar and handle dimensions separately, including all fixing positions.
- The configuration differs: compare single-sided, back-to-back and combination arrangements, not just the front profile.
- A component is missing or unclear: identify it from the assembly information before substituting another part.
Keep the model number, order specification and photographs together. This makes it easier for the supplier to establish whether the issue concerns selection, the supplied configuration or fitting.
What Should You Send Before Ordering?
Send a compact record containing the existing product’s details and the replacement you are considering. Our contact page provides a message form and contact information for product questions.
Include:
- Photographs of the complete handle and both sides of the glass.
- The existing model number or original drawing, if available.
- Hole layout, center-to-center spacing where applicable, hole diameter and glass thickness.
- The required mounting configuration and any clearance restrictions.
- The preferred replacement model, material, finish and quantity.
- A description of the fault and any missing or damaged components.
For repeat or project orders, retain the agreed drawing and finish reference. Reordering by the appearance of an old fitting alone leaves important details unrecorded.
Where a standard model does not meet a project’s requirements, our manufacturing services include OEM and ODM support, drawing-based development and sampling. Ask whether a suitable standard configuration or a custom solution is available. Order conditions and the proposed specification need confirmation for the particular request.
Frequently Asked Questions
Can I replace only one side of a back-to-back handle?
Ask for confirmation for the exact model and assembly. A product being described as back-to-back does not establish that either half is sold separately or will connect to parts from another model. Provide the model number and photographs of the components you intend to retain.
Can I replace a knob with a pull handle?
Treat this as a mounting-layout change, not simply a style change. Compare the existing glass preparation with the proposed product’s drawing before choosing it. Do not assume a knob opening provides the mounting arrangement needed by a pull or combination fitting.
What if I do not know the original brand or model?
Start with the physical information: photographs, hole layout, dimensions and mounting details. Explain which information is missing when asking for a comparison. Without the original specification, appearance alone cannot establish an exact replacement or a matching finish.
Find a Replacement by Fit, Not Appearance Alone
The next step in shower door handle replacement is a confirmed match between the existing door and the selected assembly. Identify the configuration, record the dimensions and resolve missing information before ordering.
Browse the relevant Zimmor model, then send your measurements and photographs for specification confirmation. This gives the selection process a firmer basis than choosing the closest-looking handle.
